YK60 Experiment Lab Swing Pellet Machine Dry Powder Additives Material Combined Granulator

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	YK 90

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	Swing Pelletizer	Capacity:	20-500 Kg/h, Depend On Model.
Granulator Dia:	0.8-5 Mm	Product Name:	YK-60 Experiment Lab Pelletizer
Raw Material:	Drying And Coating Granules, Pellets, Powders	Application:	Powder Mixing, Medicine Processing, Chemicals Processing, Food Processing, Plastics Processing
Core Components:	Motor, Gear, Bearing, Engine	Warranty:	2 Years For Core Components
Usage:	Pelleting Pelletizer, Granulator.	Color:	Gray, Or Customer's Request
Highlight:	Experiment swing pellet machine , lab swing pellet machine , dry powder machine 100kg/h

Description of YK Series Swing Pelletizer Machine

Swing Pelletizer Model YK60 Experiment Lab Pelletizer Dry Powder Additives Material Combined Granulator Machine

The granulator grinds the wet powder or block dry material into the required granules. The screen is made of nylon or stainless steel, which is easy to assemble and disassemble, and the tightness can be adjusted. The main parts of the machine are enclosed in the machine body and are attached with a lubrication system, so the production process runs smoothly. The whole machine is made of stainless steel. In line with GMP standards, the quality and economic efficiency of the particles are significantly improved.

Product Paramenters

Model	YK-60	YK-90	YK-160
Drum diameter	60mm	90mm	160mm
Production	20-30kg/h	50-100kg/h	200-300kg/h
Hopper size	210*210mm	265*315mm	400*420mm
Swing amplitude	360 degree	360 degree	360 degree
Rolling sway times	46r/min	50r/min	55r/min
Motor power	0.55kw	0.75kw	2.2kw
Weight	65kg	95kg	260kg
Dimension	330545625mm	370750830mm	6059501100mm

Advantages:

1. Simple screen assembly and disassembly

The screen is equipped with 14-mesh nylon net as standard. It can also be equipped with stainless steel screen. Different screens can be installed to make particles of different sizes

2. Feeding port

Knurled screw, easy to adjust, easy to disassemble

3. Adjustable elastic

Can properly adjust the screen tension, practical and convenient

4. Body full stainless steel cover

The overall appearance is closed with high-quality 304 stainless steel plate, which is safe, hygienic and quiet, making the overall appearance neat and beautiful.

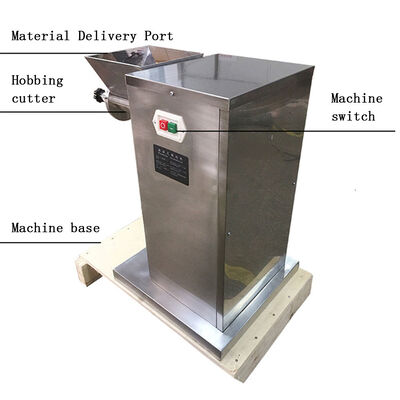

YK60 Experiment Lab Swing Pellet Machine Dry Powder Additives Material Combined Granulator 0

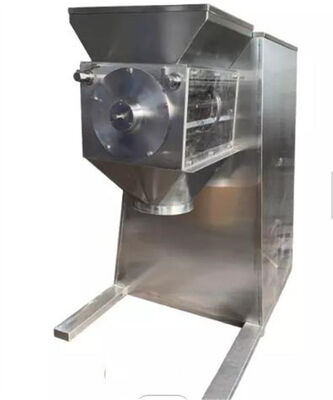

YK60 Experiment Lab Swing Pellet Machine Dry Powder Additives Material Combined Granulator 1

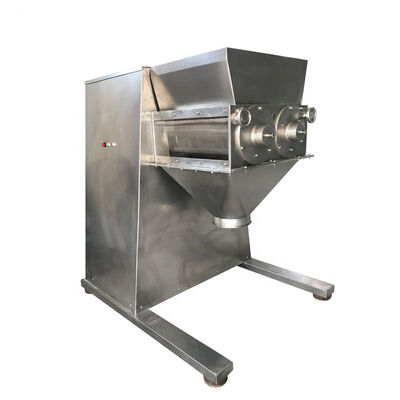

YK60 Experiment Lab Swing Pellet Machine Dry Powder Additives Material Combined Granulator 2

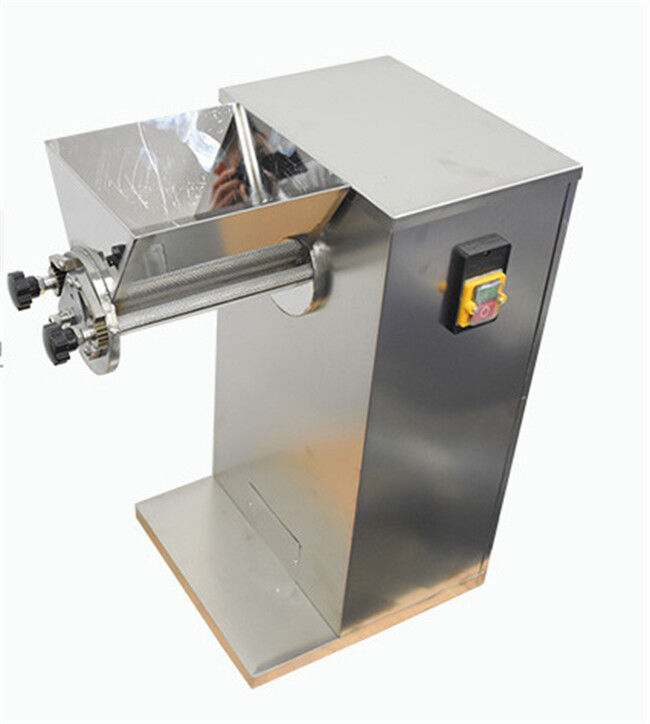

YK60 Experiment Lab Swing Pellet Machine Dry Powder Additives Material Combined Granulator 4

Jiangyin SNYNXN Granulating Drying Equipment Co., Ltd was established in 2007, combining R&D, production, foreign trade and professional service of pharmaceutical machinery as an original manufacturer.

1.You are a manufacturing company or trading company?

---We are original factory specializing in manufacturing pharmaceutical machinery more than 15 years.
2.What quote do you offer?

---FOB , CIF, CFR, EXW, and others.

3.How pay?

---T/T, L/C, Western Union, Paypal, etc.

4.How transport?

---By sea.

5.What is the quality of your products guarantee?

---We have passed ISO, also make CE according to your need, engineers available to service machinery overseas.

6.Do you have after-sales service?

---Certainly, you can contact us at any time.
7.If i want to place an order,what should i tell you
--You can tell me which material do you want to granule,and what's requirement of product capacity and voltage etc.
