Specializing in the production of pharmaceutical machinery and granulating drying equipment.
Place of Origin: | JIANGSU, CHINA |
Brand Name: | SNYNXN |
Certification: | CE ISO GMP, ISO 9001 Certification |
Model Number: | FG 60 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD8000-150000/SET |
Packaging Details: | Film Wrapping, Wooden Case. |
Delivery Time: | 50 - 90 DAYS |
Payment Terms: | L/C, T/T, |
Supply Ability: | 500 SETS/YEAR |
Product Description: | Chemical Machinery Powder Drying Equipment | Output: | 1.5 - 1100 Kg/batch |
---|---|---|---|
Used For: | Drying Powders Granules Particles | Machine Type: | Fluid Bed Drying Machine |
Functions: | Drying, Reduce Material's Moisture, Fluid Fluidized Bed Dryer Price, Salt/powder/particle/chemical Drying | Power: | 2.2 KW |
Power Source: | 380V, 220v, Customized | Applicable: | Drying In Medicine Processing, Chemicals Processing, Food Processing, |
Constructive: | SUS304, SUS316L, Other, Stainless Steel304/316L | Sales Service: | SAT, Engineers Available To Field Maintenance And Repair Service |
High Light: | FBD Vetical Fluid Bed Dryer,1100 kg/batch Fluid Bed Dryer,Fluid Bed Dryer 2.2 KW |

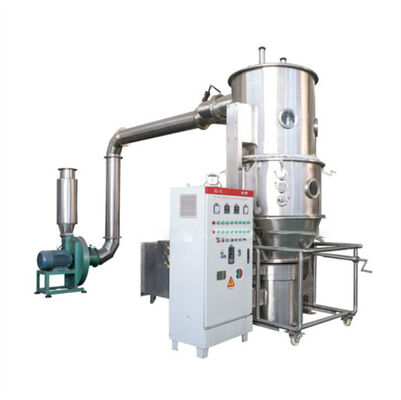

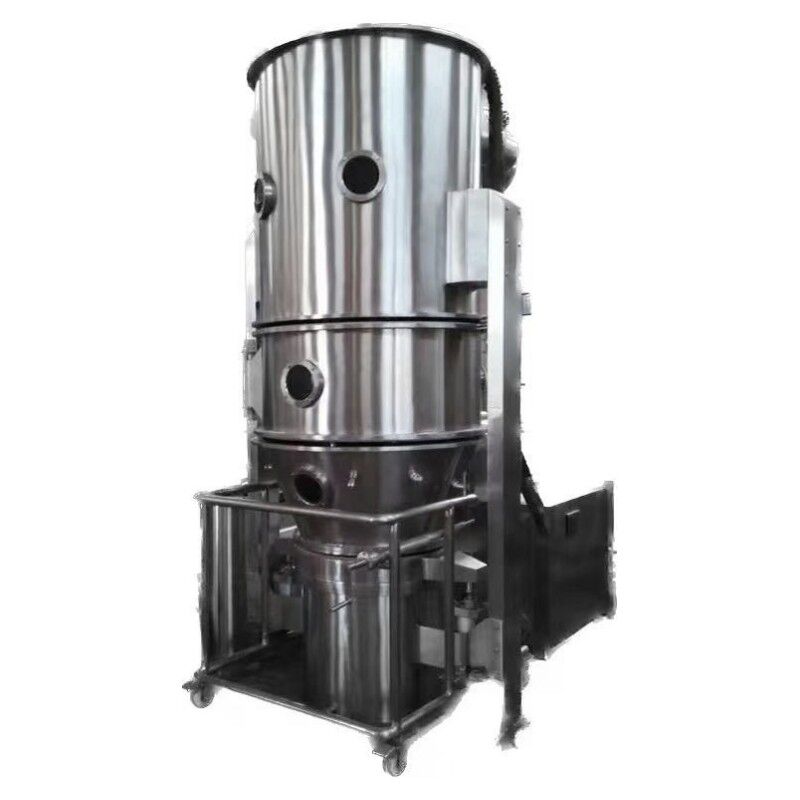

Description: Fluid Bed Dryer Machine
Product overview:
FL and FG series vertical boiling granulation dryer is the principle of material powder particles, in the raw material container (fluidized bed) in a ring fluidized state, after purified heated air preheating and mixing, the adhesive solution atomization spray, make several particles gathered into particles containing adhesive, due to the hot air to material drying, make the particles in water evaporation, adhesive solidification, this process is repeated.

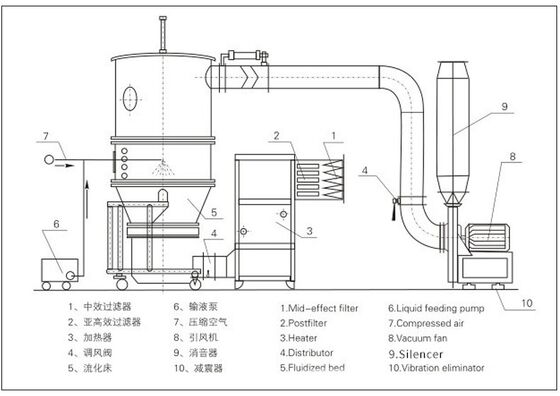

Principle
Material microparticles, in an annular fluidized state in the raw material container (fluidized bed), are preheated and mixed by heated air after purification. The adhesive solution is sprayed into the aerosol, so that several particles gather into particles containing the adhesive. Due to the hot air drying the material, the moisture in the particles evaporate. The adhesive coagulates, and this process is repeated to form ideal, uniform microporous spherical particles.
Application
1. Drug granulation and coating granulation: tablet granules, granule granules and capsule granules.
Coding: granule, pill protective layer, color preparation, slow release, film, enteric coating.
2. Food granulation and coated sugar, coffee, cocoa powder, cream, powder juice, amino acids, seasonings, puffed food.
3. Pesticide, pigment pigment, dye granulation
4. Powder, particles, bulk material drying
Technical Parameter
Model | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 |
Volume | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
Capacity | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
Fan Power | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
Steam consumption | 12 | 23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
Compressed air consumption | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
noise | (The fan is isolated installed)≤75 | |||||||||||
outline dimension | 1.0 ×0.55 ×1.8 |
1.2 ×0.6 ×2.1 |
1.25 ×0.9 ×2.1 |
1.6 ×0.9 ×2.3 |
1.65 ×1.1 ×2.4 |
1.85 ×1.25 ×3 |
1.85 ×1.25 ×3 |
2.2 ×1.65 ×3.1 |
2.27 ×1.72 ×3.1 |
2.34 ×1.9 ×3.5 |
2.8 ×1.9 ×3.8 |
3 ×2.55 ×4.2 |
Applications
The machine is main used for drying powder or granules from pharmaceutical,foodstuff, chemical and so on industries.
Company profile
our products sell well in over 20 countries. The company is constantly updating and developing pharmaceutical machinery, chemical equipment, drying equipment, mixing equipment, granulator, coater and sewage treatment equipment and other products. With strict testing means and a complete set of scientific management procedures, and through the ISO9001 international quality system certification, product quality has reached the advanced level at home and abroad, pharmaceutical machinery products in line with "GMP standard". Our company tenet: product quality to win with excellence, sales and service to honesty, the contract to honor the letter.
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,
Q: Payment of terms:
