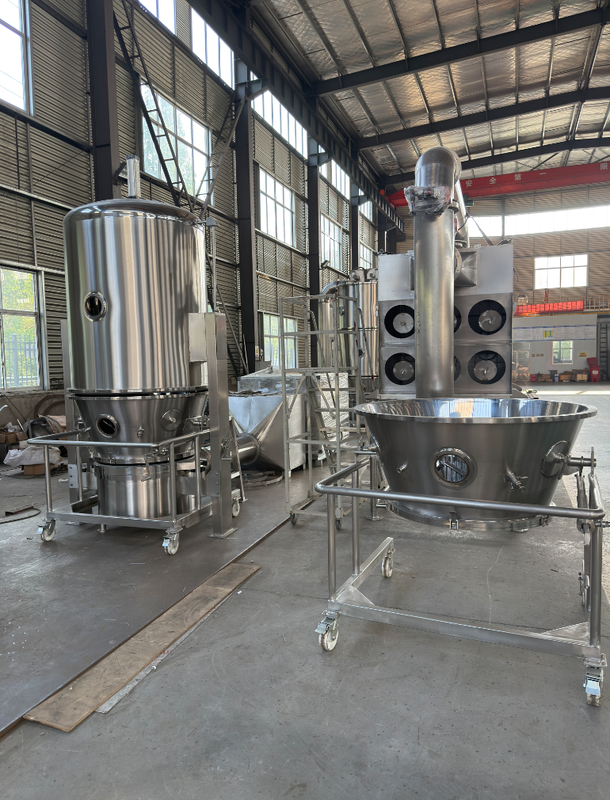

Description: For Drying Chemical Medicine Pill Powder Granule Pharmaceutical Fluid Bed Dryer
The High Efficiency Fluid Bed Dryer is designed for fast, uniform, and energy-efficient drying of powders, granules, pellets, and crystalline materials. Utilizing advanced fluidization technology, the equipment suspends materials in a stream of heated air, creating excellent heat transfer and rapid moisture evaporation while maintaining product quality. The Fluid Bed Dryer is widely used in the pharmaceutical, food, chemical, nutraceutical, and biotechnology industries for reliable and consistent drying performance.
Manufactured from high-quality SUS304 or SUS316L stainless steel, the Fluid Bed Dryer meets GMP and international hygiene standards. Its fully enclosed structure minimizes dust emissions, prevents material contamination, and provides a clean production environment suitable for industries with strict quality requirements.
The batch-type Fluid Bed Dryer features a robust drying chamber, air handling system, heating unit, and efficient filtration components that work together to deliver stable airflow and uniform drying. The optimized fluidization process ensures even moisture removal, reduces drying time, and improves product consistency, making it ideal for heat-sensitive materials and precision powder processing.
Designed for flexible production, the Fluid Bed Dryer is suitable for laboratory research, pilot-scale development, and large-scale industrial manufacturing. It can process pharmaceutical granules, tablet and capsule materials, herbal extracts, food ingredients, protein powders, instant beverages, chemical powders, fertilizers, catalysts, and other specialty materials with excellent efficiency and repeatable results.
With its intelligent control system, user-friendly operation, and low maintenance requirements, the High Efficiency Fluid Bed Dryer helps manufacturers increase productivity while reducing energy consumption and operating costs. Customized configurations, including heating methods, processing capacities, automation systems, and material options, are available to meet specific production requirements.
Combining high drying efficiency, reliable performance, and long service life, the Fluid Bed Dryer is an ideal powder drying solution for global manufacturers seeking advanced drying technology, consistent product quality, and cost-effective production for international markets.
Principle
When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Optimized Fluidization Design
The High Efficiency Fluid Bed Dryer features a precision-engineered circular fluidization chamber that promotes uniform airflow distribution while eliminating material accumulation and dead zones. This optimized design improves drying consistency and enhances overall processing efficiency.
Uniform Material Mixing
An integrated mixing system continuously agitates the material during operation, preventing particle agglomeration and channel formation. This ensures even fluidization, uniform heat transfer, and consistent moisture removal for high-quality drying results.
Convenient Material Discharge
The Fluid Bed Dryer is equipped with an efficient discharge system that enables quick and complete material unloading. Various discharge configurations can be customized to suit different production processes, material characteristics, and automation requirements.
Fully Enclosed GMP Design
Designed with a sealed negative-pressure operating system, the equipment effectively prevents dust leakage and external contamination. The incoming air passes through a multi-stage filtration system to ensure a clean processing environment, making the Fluid Bed Dryer fully suitable for pharmaceutical, food, and other hygienic manufacturing industries that require GMP compliance.
Fast and Energy-Efficient Drying
Advanced airflow technology provides excellent heat distribution and rapid moisture evaporation, significantly reducing drying time while maintaining uniform product quality. Typical drying cycles range from 15 to 45 minutes, depending on material properties, moisture content, and production requirements.
Intelligent and User-Friendly Operation
The Fluid Bed Dryer is equipped with an advanced PLC control system and intuitive touch-screen interface, allowing operators to accurately monitor and adjust temperature, airflow, and drying parameters. This improves production efficiency, reduces manual intervention, and ensures stable, repeatable drying performance.
Easy Cleaning and Low Maintenance
The modular stainless steel structure allows for quick disassembly, easy cleaning, and simplified maintenance. Its hygienic design minimizes downtime and supports continuous industrial production with reduced operating costs.
Key Benefits
- High drying efficiency with uniform heat distribution
- Stable fluidization for consistent product quality
- Fully enclosed design with minimal dust emission
- GMP-compliant stainless steel construction
- Fast drying cycles and reduced energy consumption
- Flexible configurations for pharmaceutical, food, chemical, nutraceutical, and biotechnology applications
- Reliable long-term performance with low maintenance requirements
Scope of application
1,Use screw to extrude and vibrate granule and granulate the granule with the method of humidity, high speed and mixing
2,Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feed stuff, chemical industries etc.
3,The raw material that large in granule and small in block and having adhesive property
4,Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.
Technical Parameter
| type |
3 |
5 |
30 |
60 |
120 |
200 |
300 |
500 |
1000 |
| item |
unit |
| Container of raw material |
diameter |
mm |
300 |
400 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
2200 |
| |
volume |
L |
12 |
22 |
100 |
220 |
420 |
670 |
1000 |
1500 |
2500 |
| Production capacity |
min |
kg/batch |
1.5 |
4 |
15 |
30 |
80 |
100 |
150 |
250 |
500 |
| max |
kg/batch |
4 |
6 |
36 |
72 |
140 |
240 |
360 |
600 |
1100 |
| consumption of steam |
kg/h |
12 |
23 |
70 |
140 |
211 |
282 |
366 |
465 |
800 |
| amount of compressed air |
m3/min |
0.3 |
0.3 |
0.3 |
0.6 |
0.6 |
0.9 |
0.9 |
0.9 |
1.5 |
| Power of fan |
kw |
2.2 |
4 |
5.5 |
11 |
18.5 |
22 |
30 |
45 |
75 |
| Temperature |
ºC |
120°C (Adjustable from ambient to 120) |
| Yield |
% |
>99 |
| Option time |
min |
1530(depends on material) |
| Content at final term. |
% |
-0.2( depends on material) |
| Noise |
dB |
≤75 |
| Height of main machine |
mm |
2100 |
2300 |
2500 |
3000 |
3300 |
3800 |
4000 |
4800 |
6200 |
Applications
The machine is main used for drying powder or granules from pharmaceutical,foodstuff, chemical and so on industries.
Company profile
Division I professional production of various kinds of pharmaceutical machinery and drying equipment, our products sell well in over 20 provinces and cities, and exported to America, Mexico, Spain, Singapore, Russia, belarus, Egypt, South Korea, Malaysia, the Philippines, the united Arab emirates, Thailand, Vietnam, Pakistan, India, Iran, South Africa, Algeria, Syria, Mongolia, Bangladesh and other countries. The company is constantly updating and developing pharmaceutical machinery, chemical equipment, drying equipment, mixing equipment, granulator, coater and sewage treatment equipment and other products. With strict testing means and a complete set of scientific management procedures, and through the ISO9001 international quality system certification, product quality has reached the advanced level at home and abroad, pharmaceutical machinery products in line with "GMP standard". Our company tenet: product quality to win with excellence, sales and service to honesty, the contract to honor the letter.
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,
Q: Payment of terms:
A: Acceptable payment terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment, and rest 70% after approvement but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new; We guarantee every set of our machines after shipment have warranty 15 months, during warranty period we will provide technician debugging onsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive notification.
Q: Package of merchandise:
A: Inner packed with plastic wrapping, external is plywood case.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology and choose model of machines, and give feasible advice of each material. Secondly visit our factory to do FAT before shipment, give us your advice and we modify the machine if not meet the user's satisfaction. Lastly, we will dispatch at least 1 experienced and responsible technician to go abroad for commissioning and train the operators. lf no need onsite commissioning, we provide video guidance.
Q: Which information do you require then you could choose model subsequently?
A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying? What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during drying process? What is the heating source, steam, electricity, natural gas or others? Last but important, what is capacity needed as how many kgs/h before drying or after drying?
