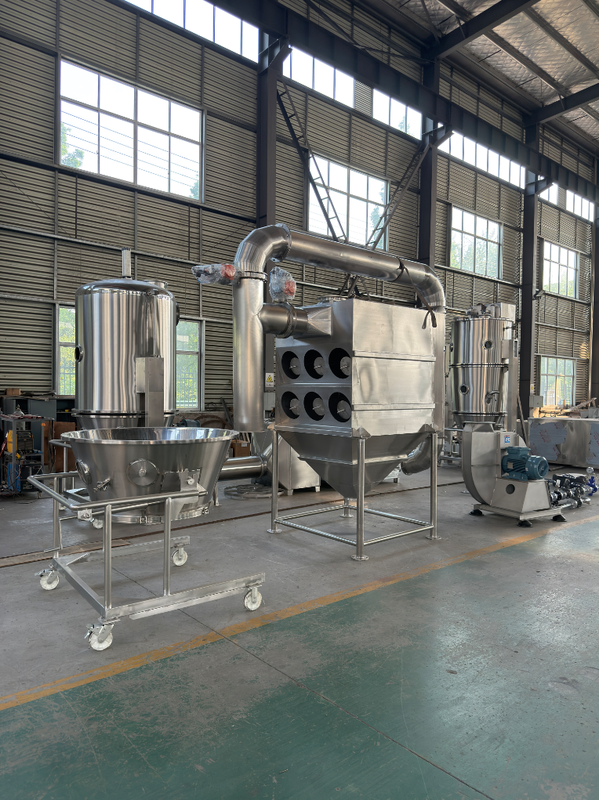

Description: Fluid Bed Dryer Machine
The Fluid Bed Dryer Machine is a highly efficient drying solution designed for modern industrial manufacturing. Engineered with advanced fluidization technology, this equipment provides fast, uniform, and energy-efficient drying for a wide range of materials, including powders, granules, pellets, crystals, and agglomerates. The Fluid Bed Dryer Machine is widely used in pharmaceutical, food processing, chemical, nutraceutical, biotechnology, and fine chemical industries where precise moisture control and consistent product quality are essential.
By suspending materials in a controlled stream of filtered heated air, the Fluid Bed Dryer Machine maximizes heat transfer efficiency while reducing drying time. This fluidized drying process prevents material clumping, improves airflow distribution, and ensures every particle is dried evenly. The result is higher production efficiency, lower energy consumption, and improved product consistency.
Manufactured from premium stainless steel and designed according to GMP and international quality standards, the machine features a fully enclosed structure that minimizes contamination and simplifies cleaning. An intelligent PLC control system with an optional touch screen allows operators to accurately adjust temperature, airflow, drying time, and process parameters for different production requirements.
Whether you require a standard model or a fully customized solution, our Fluid Bed Dryer Machine can be configured with various capacities, heating methods, filtration systems, and automation levels to meet your production needs.
Application
1. Medicine granulation and coating granulation: tablet granules, granule granules and capsule granules.
Coding: granule, pill protective layer, color preparation, slow release, film, enteric coating.
2. Food granulation and coated sugar, coffee, cocoa powder, cream, powder juice, amino acids, seasonings, puffed food.
3. Pesticide, pigment pigment, dye granulation
4. Powder, particles, bulk material drying
Technical Parameter
| Model |
3 |
5 |
15 |
30 |
45 |
60 |
90 |
120 |
150 |
200 |
300 |
500 |
| Volume |
12 |
22 |
45 |
100 |
155 |
220 |
300 |
420 |
530 |
660 |
1000 |
1500 |
| Capacity |
1.5/4.5 |
4/6 |
10/20 |
15/45 |
25/65 |
40/80 |
60/120 |
80/160 |
90/200 |
100/300 |
150/450 |
300/300 |
| Fan Power |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
18.5 |
22 |
30 |
37 |
| Steam consumption |
12 |
23 |
42 |
70 |
99 |
141 |
169 |
211 |
251 |
282 |
366 |
451 |
| Compressed air consumption |
0.3 |
1.3 |
0.3 |
0.4 |
0.4 |
0.6 |
0.6 |
0.9 |
0.9 |
0.9 |
1.3 |
1.5 |
| noise |
(The fan is isolated installed)≤75 |
| outline dimension |
1.0
×0.55
×1.8 |
1.2
×0.6
×2.1 |
1.25
×0.9
×2.1 |
1.6
×0.9
×2.3 |
1.65
×1.1
×2.4 |
1.85
×1.25
×3 |
1.85
×1.25
×3 |
2.2
×1.65
×3.1 |
2.27
×1.72
×3.1 |
2.34
×1.9
×3.5 |
2.8
×1.9
×3.8 |
3
×2.55
×4.2 |
Applications
The machine is main used for drying powder or granules from pharmaceutical,foodstuff, chemical and so on industries.
Company profile
our products sell well in over 20 countries. The company is constantly updating and developing pharmaceutical machinery, chemical equipment, drying equipment, mixing equipment, granulator, coater and sewage treatment equipment and other products. With strict testing means and a complete set of scientific management procedures, and through the ISO9001 international quality system certification, product quality has reached the advanced level at home and abroad, pharmaceutical machinery products in line with "GMP standard". Our company tenet: product quality to win with excellence, sales and service to honesty, the contract to honor the letter.
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,
Q: Payment of terms:
A: Acceptable payment terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment, and rest 70% after approvement but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new; We guarantee every set of our machines after shipment have warranty 15 months, during warranty period we will provide technician debugging onsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive notification.
Q: Package of merchandise:
A: Inner packed with plastic wrapping, external is plywood case.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology and choose model of machines, and give feasible advice of each material. Secondly visit our factory to do FAT before shipment, give us your advice and we modify the machine if not meet the user's satisfaction. Lastly, we will dispatch at least 1 experienced and responsible technician to go abroad for commissioning and train the operators. lf no need onsite commissioning, we provide video guidance.
Q: Which information do you require then you could choose model subsequently?
A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying? What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during drying process? What is the heating source, steam, electricity, natural gas or others? Last but important, what is capacity needed as how many kgs/h before drying or after drying?
Mobile Phone: 86-13961601352 Wechat/WhatsApp: +86-13961601352
Applications
The Fluid Bed Dryer Machine is suitable for drying a wide variety of materials, including:
- Medicine Manufacturing
- Food Processing
- Chemicals
- Nutraceuticals
- Biotechnology
- Cosmetics
- Fine Chemicals
- Agrochemicals
Typical products include pharmaceutical granules, herbal extracts, food additives, milk powder, protein powder, starch, seasonings, catalysts, pigments, resins, crystals, and chemical intermediates.
Technical Parameters:
| Technical Parameter |
Specification |
| Design |
Based On Customer Requirements |
| Way To Control |
Button/Touch Screen/Remote |
| Fan Power |
11kw |
| Water Evaporation |
160-210 KG/H |
| Operational Method |
Intermittent |
| Heating Method |
Electricity/Gas |
| Loading Capacity |
10KGS/H-500KGS/H |
| Yield |
>99 |
| Operation Pressure |
Atmospheric Dryer |
| Trademark |
Jiangyin SNYNXN |
Applications:
The Fluid Bed Dryer Machine is suitable for drying a wide variety of materials, including:
- Medicine Manufacturing
- Food Processing
- Chemicals
- Nutraceuticals
- Biotechnology
- Cosmetics
- Fine Chemicals
- Agrochemicals
Typical products include pharmaceutical granules, herbal extracts, food additives, milk powder, protein powder, starch, seasonings, catalysts, pigments, resins, crystals, and chemical intermediates.
Custom Engineering Solutions
We provide complete OEM and ODM manufacturing services for the Fluid Bed Dryer Machine. Our engineering team can customize:
- Drying capacity
- Heating system
- Machine dimensions
- Material of construction
- PLC automation level
- Air filtration system
- Explosion-proof design
- Feeding and discharge methods
- Voltage and electrical standards
Each solution is optimized according to the customer's production process, installation space, and industry requirements.
Support and Services:
Our Fluid Bed Dryer is designed to offer exceptional performance and reliability for all your drying requirements. To ensure your equipment operates at its best, we provide comprehensive technical support and services.
Our team of experienced engineers is available to assist with any technical queries you may have regarding the operation, maintenance, or optimization of your Fluid Bed Dryer. We aim to provide prompt and accurate responses to ensure minimal downtime and maximum productivity for your processes.
We offer a range of services, including:
- Installation guidance and start-up assistance to ensure your dryer is set up correctly and efficiently.
- Operational training for your staff to understand the full capabilities of the equipment and how to operate it safely and effectively.
- Troubleshooting support to help you diagnose and resolve any issues quickly.
- Maintenance and service plans tailored to your specific requirements to keep your dryer in optimal condition.
- Upgrades and retrofit services to improve performance, extend equipment life, and adhere to the latest industry standards.
- Genuine spare parts supply to ensure your equipment maintains its integrity and operates with the highest efficiency.
Our commitment to excellence guarantees that you have access to the latest technology and best practices in fluid bed drying. We understand the importance of uptime in your operations, and our support services are designed to help you achieve your production targets with confidence.
Packing and Shipping:
The Fluid Bed Dryer will be packaged in a heavy-duty, export-grade wooden crate, ensuring maximum protection during transit. The crate will be securely sealed and padded with shock-absorbent materials to safeguard the dryer against jolts and vibrations. Additionally, the package will include silica gel packets to control humidity levels and prevent any moisture-related damages.
For shipping, the packaged Fluid Bed Dryer will be placed onto a pallet, allowing for easy handling and movement via forklifts. The pallet will be wrapped with industrial-grade shrink wrap to maintain the integrity of the crate and prevent any tampering. The shipment will be labeled with all necessary handling instructions, including "Fragile," "Handle with Care," and "This Side Up" to ensure proper orientation and careful handling by the freight carriers.
Before dispatch, a thorough inspection will be conducted to ensure that the Fluid Bed Dryer and its components are securely packed and ready for shipping. All documentation, including the packing list, commercial invoice, and any required export certificates, will be attached in a visible and waterproof pouch on the outside of the crate. The Fluid Bed Dryer will then be shipped in compliance with all applicable international shipping regulations, ensuring a timely and safe delivery to the destination.
FAQ:
Q1: What is the brand and model of the fluid bed dryer you offer?
A1: We offer the SNYNXN brand FG Fluid bed dryer model, designed and manufactured in China.
Q2: What certifications does the SNYNXN FG Fluid bed dryer have?
A2: The SNYNXN FG Fluid bed dryer is CE and CCC certified, ensuring compliance with European and Chinese standards respectively.
Q3: What is the minimum order quantity for the SNYNXN FG Fluid bed dryer?
A3: The minimum order quantity for our fluid bed dryer is 1 unit.
Q4: How is the SNYNXN FG Fluid bed dryer priced and what are the payment terms?
A4: The price for the SNYNXN FG Fluid bed dryer is 10000USD per unit. Payment terms are TT (Telegraphic Transfer).
Q5: What are the packaging and delivery details for the SNYNXN FG Fluid bed dryer?
A5: The dryer is packaged in a wooden box to ensure its safety during transit. The delivery time is approximately 20 days after the confirmation of the order.
Q6: What is the supply ability for the SNYNXN FG Fluid bed dryer?
A6: We have the capability to supply 100 units of the FG Fluid bed dryer.
