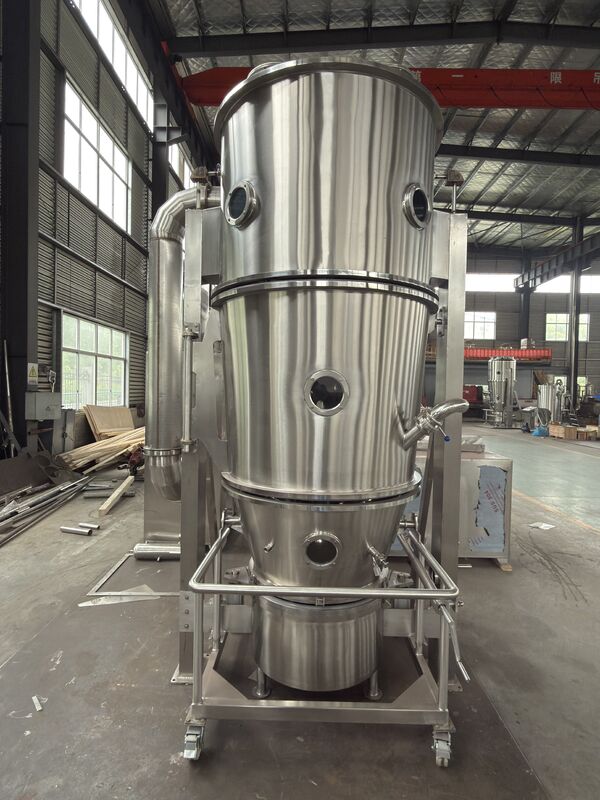

Description: Lab Size Fluid Bed Dryer Machine
The Lab Size Fluid Bed Dryer Machine is a compact and high-performance drying system specially designed for research and development, laboratory testing, pilot production, and small batch manufacturing. Based on advanced fluidized bed drying technology, this equipment provides fast, uniform, and efficient drying performance for powders, granules, crystals, and other solid materials.
Designed for R&D laboratories and pharmaceutical development centers, the Lab Size Fluid Bed Dryer Machine enables precise control of drying temperature, airflow, and processing time. It helps researchers optimize drying formulas and production parameters before large-scale industrial manufacturing.
The machine adopts a modular structure consisting of a bottom air chamber, material container, expansion chamber, and top filter chamber. Combined with auxiliary systems such as heating, air filtration, and intelligent control, it creates an efficient fluidized drying environment to achieve excellent drying results.
The Lab Size Fluid Bed Dryer Machine is also known as a laboratory fluidized bed dryer or small batch fluidized bed dryer. It is widely used in pharmaceutical, food, chemical, biotechnology, and nutraceutical industries for product development and quality testing.
Principle
When air is purified and heated, it is introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Application
The laboratory fluid bed dryer is suitable for:
- Manufacturing
- Medicine Development
- Biotechnology
- Nutraceuticals
- Food Processing
- Chemicals
- Fine Chemicals
- Research Laboratories
Typical materials include pharmaceutical granules, active pharmaceutical ingredients API, powders, food additives, herbal extracts, chemical particles, and other moisture-sensitive products.
Technical Parameter
| type |
3 |
5 |
30 |
60 |
120 |
200 |
300 |
500 |
1000 |
| item |
unit |
| Container of raw material |
diameter |
mm |
300 |
400 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
2200 |
| |
volume |
L |
12 |
22 |
100 |
220 |
420 |
670 |
1000 |
1500 |
2500 |
| Production capacity |
min |
kg/batch |
1.5 |
4 |
15 |
30 |
80 |
100 |
150 |
250 |
500 |
| max |
kg/batch |
4 |
6 |
36 |
72 |
140 |
240 |
360 |
600 |
1100 |
| consumption of steam |
kg/h |
12 |
23 |
70 |
140 |
211 |
282 |
366 |
465 |
800 |
| amount of compressed air |
m3/min |
0.3 |
0.3 |
0.3 |
0.6 |
0.6 |
0.9 |
0.9 |
0.9 |
1.5 |
| Power of fan |
kw |
2.2 |
4 |
5.5 |
11 |
18.5 |
22 |
30 |
45 |
75 |
| Temperature |
ºC |
120°C (Adjustable from ambient to 120) |
| Yield |
% |
>99 |
| Option time |
min |
1530(depends on material) |
| Content at final term. |
% |
-0.2( depends on material) |
| Noise |
dB |
≤75 |
| Height of main machine |
mm |
2100 |
2300 |
2500 |
3000 |
3300 |
3800 |
4000 |
4800 |
6200 |
Applications
The Fluid Bed Dryer Machine is widely used for efficient drying of powders, granules, crystals, and other solid materials across various industries. It is specially designed to provide rapid moisture removal, uniform drying performance, and stable product quality for production processes that require precise humidity control.
This advanced drying equipment is commonly applied in the pharmaceutical, food processing, chemical, nutraceutical, biotechnology, and fine chemical industries. It is suitable for drying pharmaceutical granules, active pharmaceutical ingredients API, food additives, starch, herbal extracts, chemical powders, pigments, catalysts, and other moisture-sensitive materials.
With its advanced fluidization technology, the Fluid Bed Dryer Machine ensures excellent heat transfer between hot air and materials, preventing uneven drying and improving overall production efficiency. The equipment is ideal for laboratory research, pilot production, and industrial-scale manufacturing where consistent drying results are required.
Main Application Industries
- Manufacturing – Drying of Medicine granules, API materials, pharmaceutical intermediates, and medical powders
- Food Processing – Drying of food ingredients, flavors, starch, protein powders, and nutritional products
- Chemical Industry – Drying of chemical powders, crystals, catalysts, and industrial materials
- Nutraceuticals – Processing of vitamins, supplements, and health-related products
- Biotechnology – Drying of biological materials and sensitive compounds
- Fine Chemicals – Moisture removal and particle conditioning for specialty chemicals
The Fluid Bed Dryer Machine provides a flexible drying solution with customized configurations to meet different material characteristics, production capacities, and process requirements, making it an ideal choice for global manufacturers seeking efficient and reliable drying technology.
Company profile
our products sell well in over 20 countries. The company is constantly updating and developing pharmaceutical machinery, chemical equipment, drying equipment, mixing equipment, granulator, coater and sewage treatment equipment and other products. With strict testing means and a complete set of scientific management procedures, and through the ISO9001 international quality system certification, product quality has reached the advanced level at home and abroad, pharmaceutical machinery products in line with "GMP standard". Our company tenet: product quality to win with excellence, sales and service to honesty, the contract to honor the letter.
FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,
Q: Payment of terms:
A: Acceptable payment terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment, and rest 70% after approvement but before shipment
Q: Quality Warranty:
A: We guarantee all the machines are brand new; We guarantee every set of our machines after shipment have warranty 15 months, during warranty period we will provide technician debugging onsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive notification.
Q: Package of merchandise:
A: Inner packed with plastic wrapping, external is plywood case.
Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology and choose model of machines, and give feasible advice of each material. Secondly visit our factory to do FAT before shipment, give us your advice and we modify the machine if not meet the user's satisfaction. Lastly, we will dispatch at least 1 experienced and responsible technician to go abroad for commissioning and train the operators. lf no need onsite commissioning, we provide video guidance.
Q: Which information do you require then you could choose model subsequently?
A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying? What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during drying process? What is the heating source, steam, electricity, natural gas or others? Last but important, what is capacity needed as how many kgs/h before drying or after drying?
