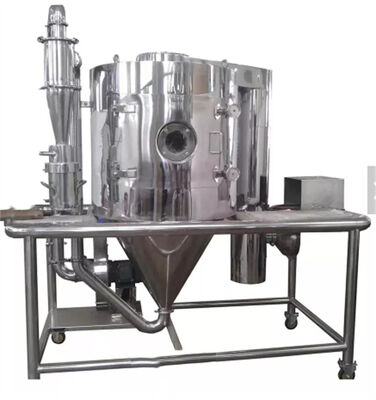

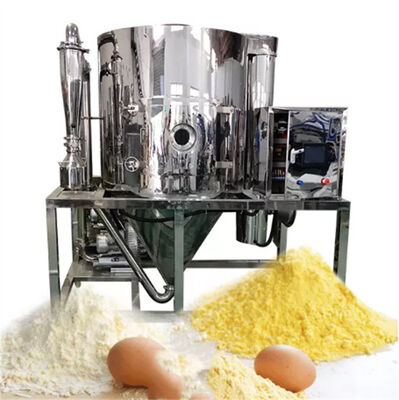

GLP Centrifugal Spray Dryer Egg Powder Making Machine

GLP Centrifugal Spray Dryer Egg Powder Making Machine

  • GLP Centrifugal Spray Dryer Egg Powder Making Machine
  • GLP Centrifugal Spray Dryer Egg Powder Making Machine
  • GLP Centrifugal Spray Dryer Egg Powder Making Machine
  • GLP Centrifugal Spray Dryer Egg Powder Making Machine
GLP Centrifugal Spray Dryer Egg Powder Making Machine
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: GLP 5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Film Wrapping, Wooden Case.
Delivery Time: within 25 days
Payment Terms: T/T, L/C
Supply Ability: 100 set/year
Contact Now
Detailed Product Description
Type: Spray Drying Equipment Application: From Liquid To Dry Powders
Drying Capacity: 50 Kg Working Process: Continuous Feed-in
Spray Direction: Downwards Cocurrent Flow Temperature Range Of Inlet Air: 140°C -300°C Adjustable
Maximum Feed: 5000 Ml/h Rotational Speed: 1500-2000 Ml/h
Key Selling Points: Long Service Life, Easy To Operate, Competitive Price Warranty: 1 Year, 2 Years Of Core Components
Highlight:

GLP Centrifugal Spray Dryer 50kg

,

50kg Centrifugal Spray Dryer GLP

,

SNYNXN Egg Powder Making Machine

Description of GLP Series Egg Powder Making Machine Spray Drying Machine



Industrial Spray Drying Machine For Milk, Spirulina, Protein, Coffee Spray Dryer

various fields where the production of a free powder sample is required.
GLP Spray Dryer has successfully processed samples in the following areas: Beverage, Flavours and colourings, Milk and egg products, Plant and vegetable extracts, Pharmaceuticals, Synthetics Heat sensitive materials, Plastics polymers and resins, Perfumes, Blood, Ceramics and superconductors Biochemicals, Dyestuffs, Soaps and detergents, Foodstuffs, Adehesives, Oxides, Textiles, Bones, Teeth and tooth amalgam and many others.



Working Principle:



1. After the air passes through the filter and the heating device, it enters the hot air distributor on the top of the drying room, and the hot air passing through the hot air distributor evenly enters the drying room and rotates in a spiral shape.

2. At the same time, the material liquid is sent to the centrifugal spray head (atomizer) installed at the top of the drying chamber, and the material liquid is sprayed into performance mist droplets.

3. The contact surface area of the material liquid and the hot air is greatly increased, and the water evaporates quickly, and the
finished product is dried in a very short time.

4. The powder is recovered by the collection tube at the bottom of the dryer, and
the exhaust gas is discharged by the centrifugal fan.



Features:

High speed drying:the surface area of liquid material is greatly increased after atomization, achieving instantaneous evaporation of 95% -98% water in the hot air flow, drying time only takes a few seconds, especially for heat-sensitive materials

Products achieve good uniformity, mobility and solubility, and also achieve purity, good quality. The production process is simplified and the operation control is convenient.

For liquid materials with the moisture content of 40-60% (special materials up to 90%) can be dried into powder products just with one time, do not need grinding and screening after drying, reduce production processes and improve product purity. The product size, bulk density, moisture, in a certain range can be adjusted by changing operating conditions, control and management are very convenient.

The air is filtered and heated into the top air distributor of the dryer, and the hot air enters the drying chamber evenly in a spiral fashion. The material liquid is sprayed into a fine atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.



Technical Specification:

Model-GLP 5 10 25 50 100 150 200~2000

Inlet temperature

(°C)

140-350

Outlet temperature

(°C)

80-90
Moisture maximum evaporation (kg/h) 5 10 25 50 100 150 200-2000
Rotation form of centrifugal spray head Compressed air transmission Mechanical transmission
Rotating speed (r.p.m) 25000 25000 18000 18000 18000 15000 8000-15000

Diameter of spray

disc (mm)

50 50 100 120 140 150 180-340
Heat source Electricity Electricity Electricity + steam Electricity+ steam, fuel oil, gas

According to

the actual situation

Electric heating

power (kw)

9 20 36 63 81 99

Length×width×height

(m)

1.8×0.93×

2.2

3.2x1.5x

2.4

3×2.7×

4.26

3.7×3.2×

5.1

4.6×4.2×

6

5.5×4.5×7
Dry powder recovery rate(%) ≥95



Operation Tips:

1. Atomizating: Atomizing system must insure uniform spraying fogdrops.
2. Hot airflow and fogdrops contacting: While the hot air come into drying tower, user have to consider the air flowing way and angle. No matter co-current flow, adverse current or mixed flow, user must insure the sufficient heat exchange, which is the key way to make sure the dry efficiency.
3. The angle design of pipelines and cone: It is pretty important to choose the suitable angle, please contact us for more working experience.

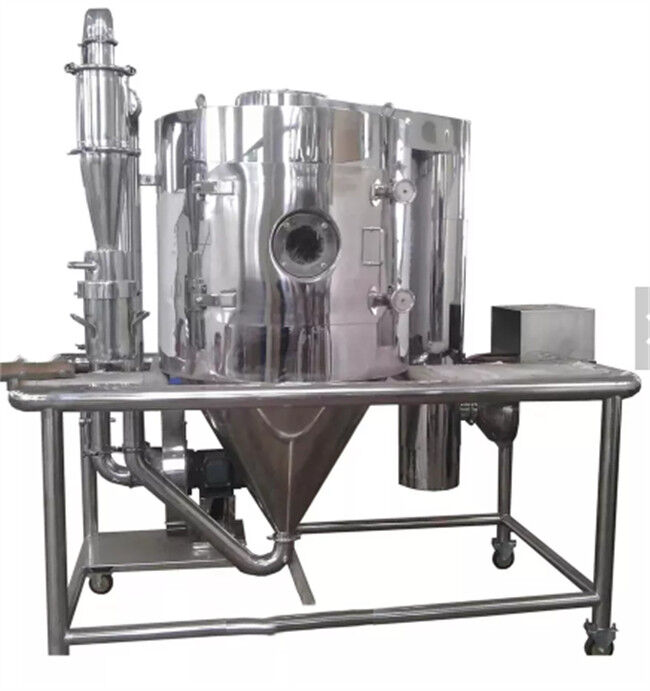

GLP Centrifugal Spray Dryer Egg Powder Making Machine 0

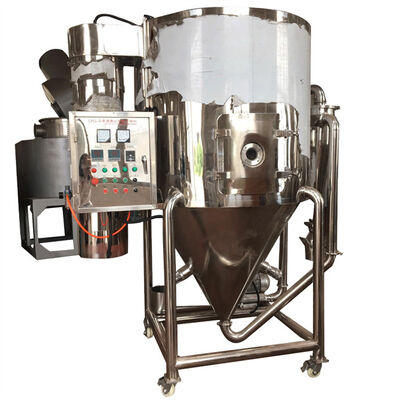

GLP Centrifugal Spray Dryer Egg Powder Making Machine 1

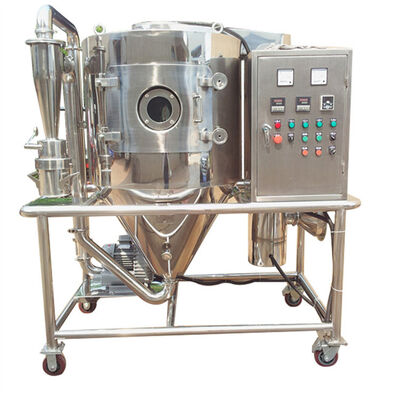

GLP Centrifugal Spray Dryer Egg Powder Making Machine 2

GLP Centrifugal Spray Dryer Egg Powder Making Machine 3GLP Centrifugal Spray Dryer Egg Powder Making Machine 4

Our Service
If you face any problems in future during the testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference.
1. Pre-service
24 Hours online service for your consult.
Help choose the right model, and a series of service, person, advise.
1) More than 15 years manufacturer experience in test equipment and with strong research and development team.
2) Accepted of customization for all kinds of special specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
2. After sale service
1) We deal with your complaints within 24 hours and solution provide within 3 working days.
2) Training how to install the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1-year warranty service and all life maintenance; our engineers could go to your place for better service necessarily.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence in us.
4. Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
