Specializing in the production of pharmaceutical machinery and granulating drying equipment.

|
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | GLP-150 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotaible |
| Packaging Details: | Film Wrapping, Wooden Case. |
| Delivery Time: | within 60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 set/year |
| Product Type: | Spray Drying Equipment | Application: | Food Processing, Pharmaceutical, Chemical Industry. |
|---|---|---|---|
| Working Process: | Continuous | Evaporation Capacity: | Max. 5 -2000 (kg/h) |
| Core Components: | Motor, PLC | Spray System: | Two- Fluid Nozzle (0.75/1.0/1.5/2.0/2.5mm) |
| Working Temperature: | Inlet 160℃; Outlet 85-90℃ | Electrical Heating: | 99KW |
| Installed Power: | Transmission 45KW | Packaging Details: | Export Standard And Sea Worthy Wooden Case. |
| Highlight: | Nozzle Jet Centrifugal Spray Dryer,5kg/h Centrifugal Spray Dryer,Pharmaceutical large spray dryer |
||
1,Feed system
It is composed of screw pump and feed pipe and valve. The screw pump adopts frequency conversion speed regulation to effectively control the feed quantity. The main part of the pipeline valve is SUS304 stainless steel, and it is clean and sanitary
2 ,Medium circulation system
It is composed of blower, draft fan, muffler, air regulating butterfly valve and wind pipe Draft fan and blower are high quality manufacturers supply, cooperation for many years, quality is stable; the blower for SUS304 stainless steel, to ensure clean air; fan with a silencer, effectively reduce the noise. The system volume, wind pressure, wind speed, is the key, based on years of experience, is now mature.
3,Air heating and cleaning system
It consists of early, medium and high temperature HEPA filters, fans, steam radiators, electric heaters, etc.
The heat source is a steam radiator and an electric heater. The material is made of stainless steel pipes and stainless steel fins. The utility model not only ensures the cleanness of the air inlet system, but also has high thermal efficiency and can guarantee the output heat

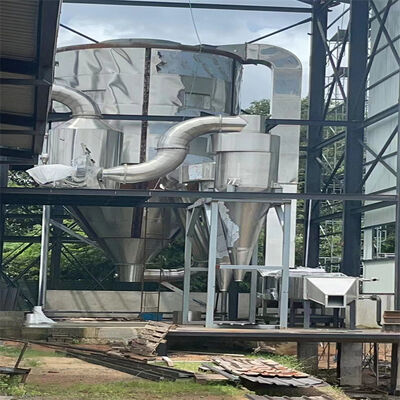

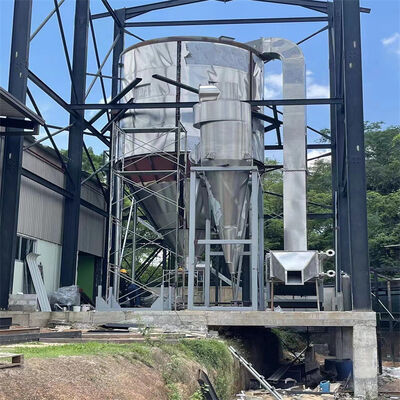

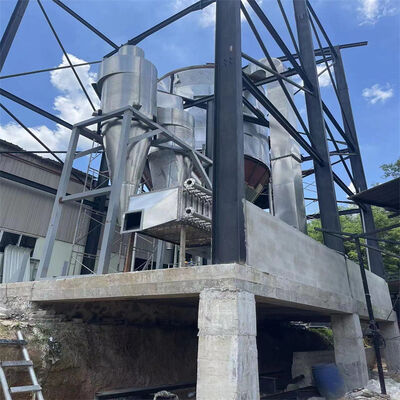

4,Drying tower system
It is composed of a dry main tower, a hot air distributor, an atomizer, an observation manhole, a tower lighting device, a pneumatic hammer, a lower bin, a cylinder body and a cone jacket, and a cooling system. This system is the core system
a). combined with the test experience, we in the design process of the main tower of the main tower: adjust the straight cylinder height to diameter ratio, adjusted by 0.9:1 routine to about 1.1:1; prolong the retention time of the material, the drying effect is ensured. The adjustment of the taper cone tower, consists of a conventional 60 degree angle adjustment to 54 degrees, fully considering the smooth material in the cone when feeding.
b). the atomizer atomizer using frequency converter to adjust the speed to achieve the best effect. The base will reduce the atomizing atomizer, the atomizing disk atomizer and increase the distance, the droplets in the air can not be returned under the spinning top, in order to ensure the normal operation of the system.
c). design a set of Taneiduo lighting devices and 1 doors, manholes.
d). hot air vortex shell tower by accelerating structure, the hot air in the tower when pressed material effectively, orderly and swirl decreased. Hot air distributor with the characteristics and requirements of the technology, do both sides distributor the wind guiding mechanism, and can adjust the angle, in order to control the hot air into the tower when the tangential angle.
e). the main tower design of jacket cooling cooling system: to avoid the main tower body wall temperature is too high and the receiving effect of the adsorption tower in the cone wall material by high temperature and coking softening phenomenon, ensure the quality of the materials.
5,Product collection system
The utility model is composed of a cyclone separator and a water film dust collector
6,Cold desiccant charging system
It is composed of air filter, freezing dehumidifier, cleaning pipe and so on. The system sends the fresh air to the clean area and collects the cooling air after the filtered fresh air passes through the refrigeration dehumidifier
7,Other auxiliary system
Are well-known manufacturers of supply, reliable performance; some pipes take into account a certain angle design, the use of suppression stainless steel pipe, to avoid the end material, blocking material, and local resistance is too large, affecting the phenomenon of material delivery
|
Item / Model (GLP)
|
5
|
25
|
50
|
100
|
150
|
200
|
500
|
800
|
1000
|
|
Inlet temperature (℃))
|
140-350 Automation
|
||||||||
|
Outlet temperature (℃))
|
80-90
|
||||||||
|
Spray pattern
|
High speed centrifugal atomizer (mechanical drive/stepless frequency control to choose)
|
||||||||
|
Water evaporation (kg / h)
|
5
|
25
|
50
|
100
|
150
|
200
|
500
|
800
|
1000
|
|
Atomizer speed (rpm)
|
25000
|
22000
|
21500
|
18000
|
16000
|
13000
|
12000
|
||
|
Atomizing disc diameter (mm)
|
60
|
120
|
150
|
180-210
|
|||||
|
Electric heating maximum power (kw)
|
8
|
31.5
|
60
|
81
|
99
|
Equipped with other heat sources
|
|||
|
Powder recovery (%)
|
about 95% more
|
||||||||
|
Covering length (m)
|
1.6
|
4
|
4.5
|
5.2
|
7
|
7.5
|
12.5
|
13.5
|
14.5
|
|
Covering width (m)
|
1.1
|
2.7
|
2.8
|
3.5
|
5.5
|
6
|
8
|
12
|
14
|
|
Tower height (m)
|
1.75
|
4.5
|
5.5
|
6.7
|
7.2
|
8
|
10
|
11
|
15
|
|
Nozzle lifting height (m)
|
- -
|
2.5
|
2.5
|
3.2
|
3.2
|
3.2
|
3.2
|
3.2
|
3.2
|
|
Note: The above data for reference only. Moisture evaporation and material properties, solid content and the hot air inlet temperature. Users can select the heating mode according to the local energy situation, select the collecting, dedusting method according to the material characteristics.
|
|||||||||
Service Terms:
Delivery Time: 75 days after prepayment. Destination port: the Port at your option
Term of Payment: T/T, L/C. 30% TT prepaid, and 70% balance payment before shipment.
Package: Export standard and sea worthy wooden case.
Port of Shipment: Shanghai or Ningbo port.
Warranty: Guarantee 12 months since installation and no more 16 months after delivery.
Other Terms: 100% brand new, manufactured in the year 2022. Origin of Goods: Jiangu, China.
