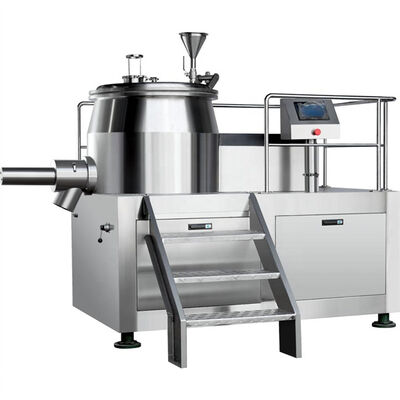

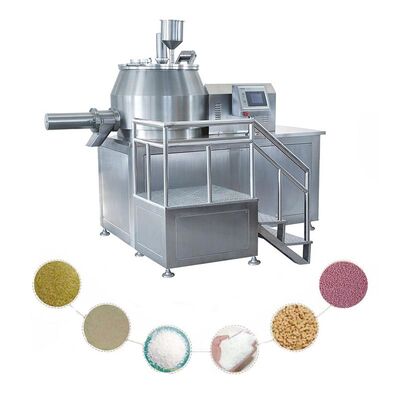

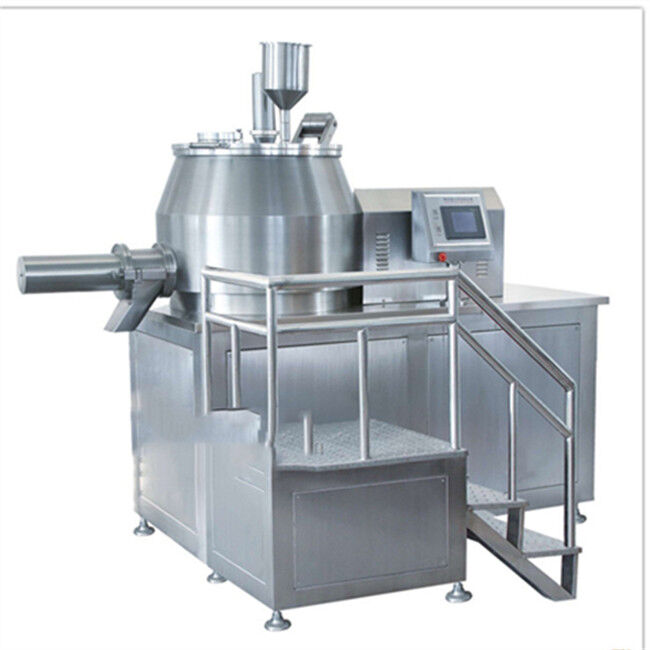

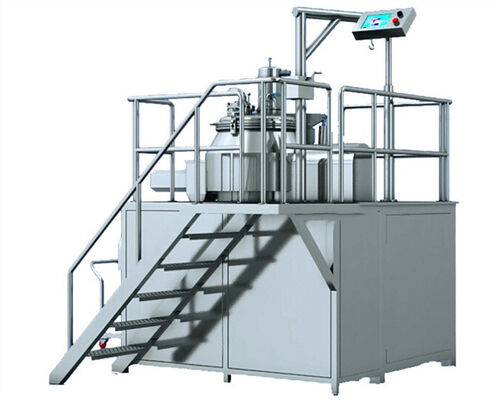

320kg/Batch Industrial Wet Gpharma Granulation Machine Super Rapid Mixing Granulator

Rapid Mixer Granulator/ High shear mixer granulator is developed for mixing of ingredients as well as wet granulation required for tablet/ capsule manufacturing process. This is achieved by reduced processing time, more homogeneous mixing, and uniformity of granule size and above all maintaining improved hygiene compliant to cGMP norms.

The High Shear Mixer Granulator performs dry mixing & wet granulating by basic design of the special arm of the mixing impeller and sequences of the mixing process in the cylindrical mixing drum with rounded connection to the base plate, achieve another special effect. The mixing process runs without varying pressure zone in the volume of mixing product.

Features of Rapid mixer granulator

1. The machine adopts horizontal barrel (cone) structure. Its structure is reasonable

2. The inner surface has no dead corner. It works at sealed state and confirms to the requirements of GMP

3. Short granulating time, high efficiency and energy saving

4. The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material to tablet processing procedure

5. Compressed with traditional process, it can reduce 25% of binder and shorten drying time too

6. Each batch needs 2 minutes to dry mixing and 1 minute to granulating. Compared with traditional process, its efficiency can raise 4-5 times

7. Whole operation has strict safe productive measures

8. It can mix uniformly even when the gravity difference between main material and excipient is very big, without the phenomenon of delamination.

Working Principles

It's based on two decisive factors essential for the intimate mixing system.

1. Spinning close to bottom of mixing bowl.

2. The impeller sets the entire mixture in whirling rising

tumbling motion ensuring a quick & even distribution of all dry components. This leads to an even distribution of all dry components & an even wetting of every granule. The large lumps occurred during wet mixing are broken up, by the strategically acted chopping tool rotating at 1440/2880 RPM.

The mixture can be discharged with the impeller running through outlet located on the side of the mixing bowl flush to the bottom.

Easy accessibility for cleaning is guaranteed by the low profile. The mixing tool is easily removed from the drive shaft providing an unobstructed mixing area which may be cleaned very easily.

CERTIFICAITONS:

1.Your enquiry or questions will reponse once we receive it!
2.Providing technical data,high-definition pictures,flow chart etc.
3.Supply the validation documents and certificates.
4.OEM/ODM is available.
5.Long-term after-sale service,door-to-door service and corporate training

1.Service before sale:

Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1.1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
1.2. Make plans for choice according to the needs and special requirements of users in different sectors;

2.Service in sale:

2.1. Ensure product with high quality and pre-commissioning before delivery;
2.2. Delivery on time;
2.3. Provide full set of documents as customer’s requirements.

3.Service after sale:

Provide considerate services to minimize clients’ worries.
3.1. Assist clients to prepare for the first construction scheme;
3.2. Install and debug the equipment;
3.3. Train the first-line operators;
3.4. Examine the equipment;
3.5. Take initiative to eliminate the troubles rapidly;
3.6. Provide technical support;
3.7. Establish long-term and friendly relationship.
