200 To 500kg/H Vertical Swing Oscillating Granulator Machine Tea Powder Making Machine

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	YK 100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	Positive And Negative Rotation Granulator Machine	Granulator Dia:	0.8-5 Mm
Usage:	Powder Granule Making	Capacity:	200-500 Kg/h
Speed:	Adjustable	Key Selling Points:	Easy To Operate, Long Term Use
Roller Diameter:	60-160 Mm	Productive Capacity:	20-1200 KG/H
Material:	SUS304, SUS316L, Other, Stainless Steel304/316L	After-sales Service Provided:	Free Spare Parts, Video Technical Support, Online Support
Highlight:	200kg/h Oscillating Granulator Machine , 500kg/h Oscillating Granulator Machine , SUS304 tea powder making machine

Description of YK Type Vertical Swing Granulator

Stainless Steel YK type Vertical Swing Granulator Flavored Tea Powder Beverage Chemical Powder Granulator Making Machine

This machine is a kind of special equipment that compulsorily pass through the screen to make the wet powder mixture under the positive and negative rotation of the rotating drum. There are two types: normal type and heavy type. The heavy type uses materials with high viscosity and difficult to granulate. The agitated material is made into particles of the required size, or the agglomerated material is broken into small particles.

Performance characteristics: Uniform granularity and simple control. The machine will make the wet powder mixture through the screen forcibly through the positive and negative rotation of the rotating drum to make granules. Adjusting the tightness of the screen and the rotation speed of the drum can control the particle size and density to a certain extent. The shaft rotation is well sealed and will not pollute materials: The main shaft of the machine is above the gearbox, and a tight shaft head sealing structure is designed to ensure that the shaft does not leak oil, do not wear materials, and prevent materials from being contaminated by lubricating oil, reaching GMP Claim.

Electromagnetic speed regulation has both deceleration and speed-increasing functions; the modified machine adopts electromagnetic speed regulation device to change the spindle speed, the faster the speed, the looser the particles; the slower the speed, the tighter the particles, and the particle size requirement can be achieved through the speed change. At the same time, the main shaft gearbox can speed up or slow down the main shaft according to the gear change. Beautiful appearance, easy to clean; the machine shell is all packed with stainless steel wire drawing board, which is corrosion resistant. The parts cleaned by this machine are: the granulating cavity part. Mainly screens and hexagonal drums. The drum does not need to be disassembled, and the screen is easy to disassemble and cut lightly, and it is very convenient to clean.

Model	Roller diameter (mm)	Roller speed (r/min)	Capacity (kg/h)	Swing angle	Power	Weight	Dimension
YK60	60	46	20-25	360	0.37	53	500400540
YK100	100	55	30-100	360	1.5	180	7004001050
YK160	160	55	150-300	360	3	280	12607501150
YK250	250	55	200-500	360	5.5	320	12609001400
YK320	320	55	300-800	360	7.5	500	130011001500

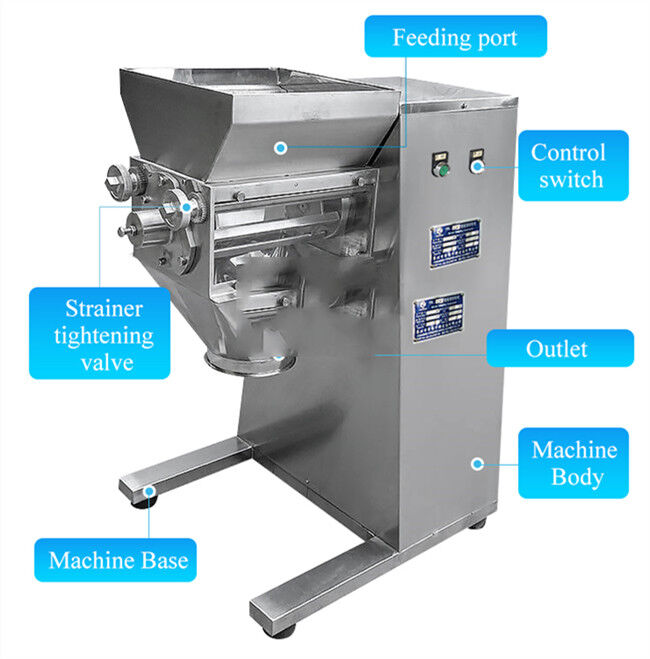

200 To 500kg/H Vertical Swing Oscillating Granulator Machine Tea Powder Making Machine 1

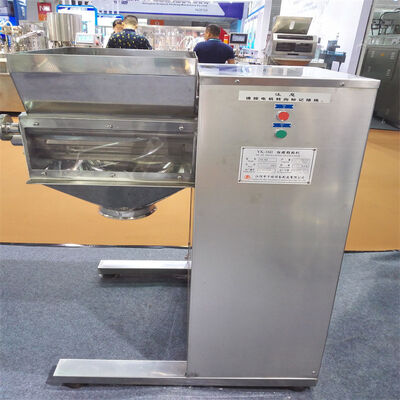

200 To 500kg/H Vertical Swing Oscillating Granulator Machine Tea Powder Making Machine 2

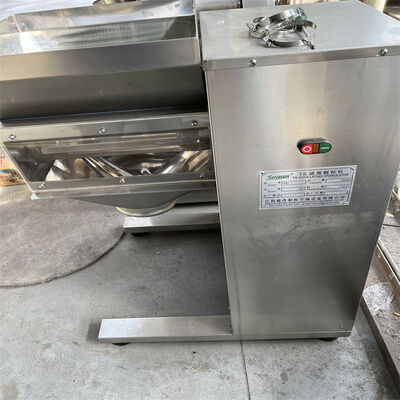

200 To 500kg/H Vertical Swing Oscillating Granulator Machine Tea Powder Making Machine 3

About us:

SNYNXN is a professional mechanical equipment manufacturer which is located in Jiangsu Province, China. The company is specialized in production, processing and sales of Pharmaceutical machinery, agriculture machinery and other machineries. The main production scopes that we cover are: Drying nad Granulating Equipment in pharmaceutical materials preparation processing, pesticide prodcuts processing machines, fruit and vegetables processing machines, grinding and mixing machines.
The company covers 35,000 m2 and the fixed asset of the company is RMB 10 million Yuan. There are over 20 employees, 4 technicians, and over 100 sets of various manufacturing equipment. The equipment are included: large scale forcing press machine, digital lathe, digital wire-electrode cutting equipment, various kinds of processing machines and equipment, etc. The company owns national patents and proprietary technology.
