Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | GHL 25 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film Wrapping, Wooden Box |
| Delivery Time: | WITHIN 50 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SET/ YEAR |

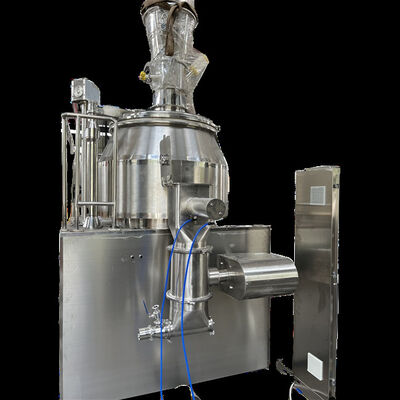

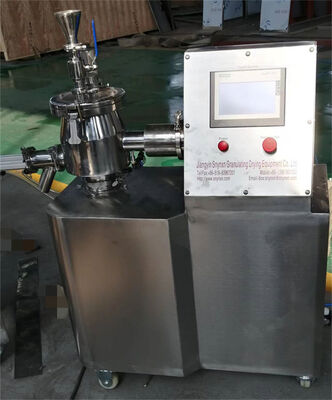

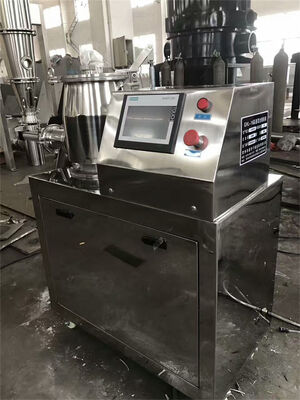

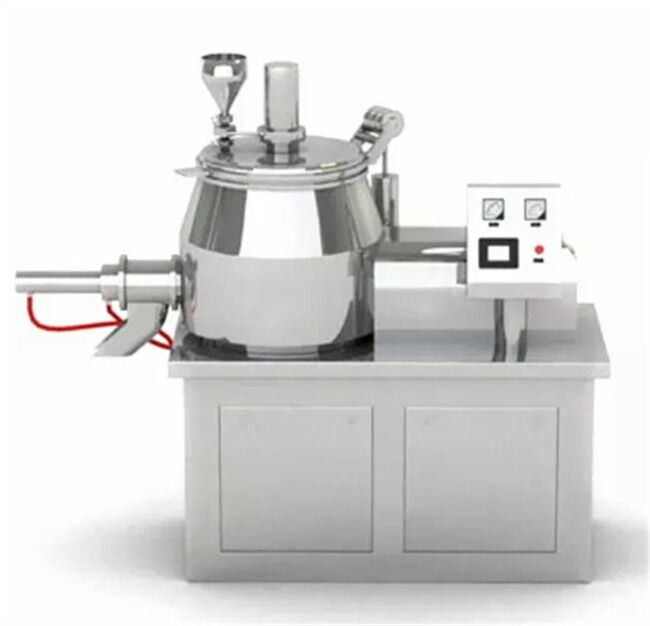

| Machine Name: | Lab Scale Mixer Granulator | Application: | Pharmaceutical Rapid Mixer High Shear Glatt Speed Powder Granules |
|---|---|---|---|
| Process Volume: | 5 Liters | Capacity: | 1 (kg/Batch) |
| Machine Feature: | Dry Mixing, Wet Mixing, Cutting | Voltage: | 220V/380V/415V/600V |
| Mixing Power: | 1.1 | Core Components: | Engine, Bearing, Motor (2 Years Warranty) |
| Marketing Type: | Brand New, IN STOCK | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | Lab Scale High Speed Mixer Granulator,GMP High Speed Mixer Granulator,600V pharmaceutical granulator machine |
||
High Shear Manufacturer Granulation Machine Wet Rapid Mixer Product Granulator
High speed mixer granulator is widely used in pharmaceutical, food, chemical and light industries. etc, to blend powdery materials and granulate.
1. It is provided with special mixing barrel and conical column of a compound structure. The corners on the inner wall are subject to smooth transition and mirror polishing with easy cleaning and without material sticking.
2. The mixing and granulating procedure can be completed in one step with the materials in the closed mixing barrel.
3. It adopts PLC control. The mixing and granulating motors are subject to variable frequency speed adjustment. All operations can be carried out automatically or manually.
4. It is provided with interlocking protection device to ensure safer operation.
5. It is equipped with printer to automatically print all process parameters, with the original records conforming to the actual ones.
6. It can be equipped with wet granulation machine and swing granulator and connect with fluidized bed dryer to form a fully closed granulating production line.
Technical Parameters:
| ITEM | GHL-10 | GHL-50 | GHL-150 | GHL-200 | GHL-250 | GHL-300 |
| VOLUME(L) | 10 | 50 | 150 | 200 | 250 | 300 |
| CAPACITY (kg/batch) | 3 | 15 | 50 | 80 | 100 | 130 |
| STIR SPEED (rpm) | 300/600 | 300/210 | 270/180 | 270/180 | 188/130 | 160/110 |
| STIR POWER (kw) | 1.5/2.2 | 4/5.5 | 9/11 | 11/14 | 11/14 | 11/14 |
| CUT POWER (kw) | 0.85/1.1 | 1.5/2.2 | 2.4/3 | 3.3/4 | 3.3/4 | 4.5/5.5 |
| CUT SPEED (rpm) | 1500/3000 | |||||
| WOR TIME (min) | 8-15 | |||||
| GRANULE SIZE(mesh) | 20-80 | |||||
The above is our technical data. only for reference. We can also design different varieties upon customer's request.
