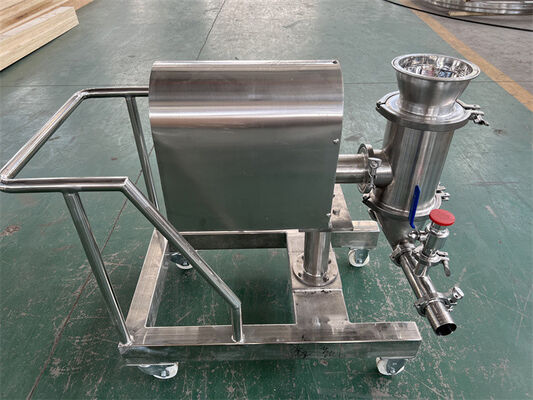

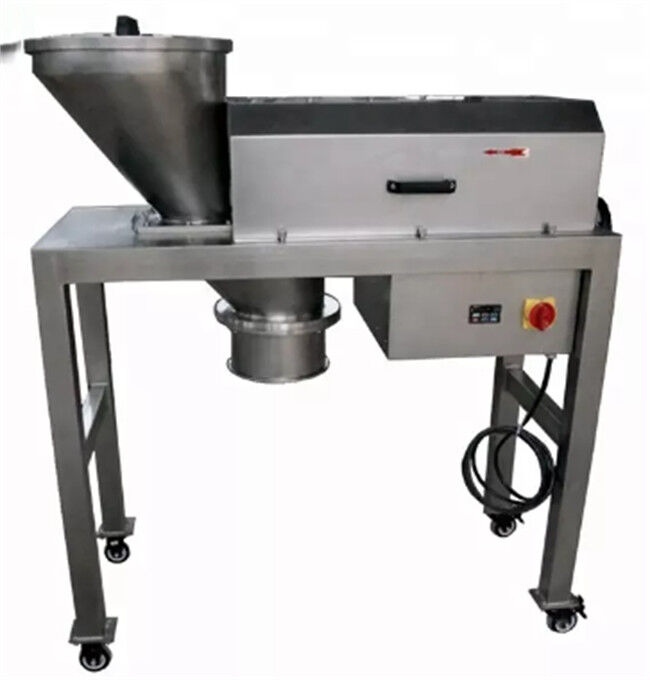

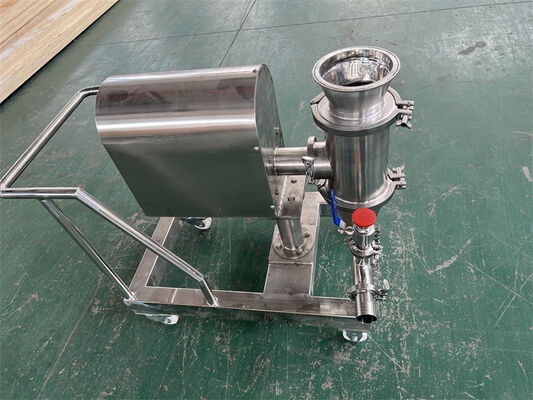

10 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry

10 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry

  • 10 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry
  • 10 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry
  • 10 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry
  • 10 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry
10 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: KZL-150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packing in Wooden case
Delivery Time: IN 30 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 sets / year
Contact Now
Detailed Product Description
Name: Cone Mill Dry Granulator Capacity: 10-1000 KG/H
Granularity: 6-80 (mesh) Function: Dry Granulation Milling
Key Selling Point: Automatic Granulating Core Components: PLC Pump, Motor.
Voltage: 220/380V, 50/60Hz, Customized After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance
High Light:

10KG/H Cone Mill Machine

,

1000KG/H Cone Mill Machine

,

Pharmaceutical dry granulation machine

Description of KZL series Cone Mill Dry Granulator For Pharmaceutical Industry



Competitive Price Cone Mill Dry Granulator For Pharmaceutical Industry



KZL series cone mill is used in pharmaceutical, food, fine chemical processing industries. This machine reaches the world advanced level and conforms to the GMP specification. It is completely made of stainless steel material.

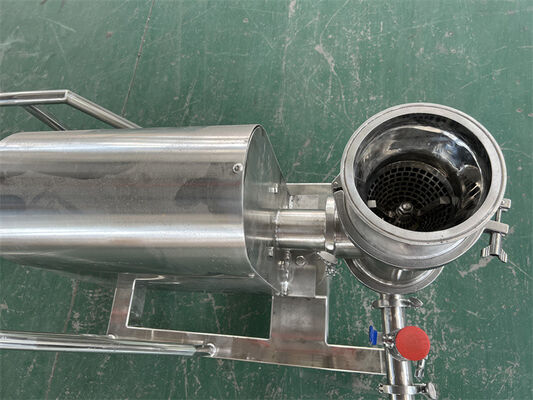

The material to be processed enters into the feed inlet of grinding and granulating machine, drops into the conical sieve chamber. The rotary knife plays a whirling action to the material, and throws the granules to the sieve mesh surface by centrifugal force, The granulates are ground into particles by the shearing action produced by the rotary knife and the sieve mesh, and discharged through the sieve apertures. The size of ground particles can be adjusted by the sieve mesh number, the gap between rotary knife and sieve mesh, and the rotary speed.

Technical advantages

1. Robust,simple and compact design requires minimum maintenance;
2. Made by SUS304 or SUS316 and mirror polished to meet GMP standards.
3. Gentle grinding action. Permits uniform size distribution, resulting in the minimum of fines.
4. Very easy and convinent for cleaning and changing screen.
5. Low dust levels. No need for air filtration. Keeps installation costs toa minimum.
6. High efficiency and low heat generation.

Main technical parameters
Model

KZL

-100

KZL

-150(A)

KZL-

300(A)

KZL

-450(A)

KZL

-700(A)

KZL

-1000(A)

Capacity of cone mill (kg/h) 10-100 15-150 30-300 45-450 70-700 100-1000
Granularity (mesh) 6-40 6-80
Drive seat temperature rise(℃) <30
Range of speed regulation(rpm) 100-1450 FZB series frequency control 300-3600
Motor power(kW) 0.75 1.5 1.5 2.2 3 5.5
Overall dimension(L×W×H)(mm)

850

*500*1050

720

*445*1345

810

*445*1345

920

*445*1430

1000

*500*1530

1100

*600*1875

The height from ground to discharge mouth(mm) 600 650 650 690 690
10 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry 010 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry 110 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry 2

10 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry 3

10 To 1000KG/H Cone Mill Machine Dry Granulator Machine For Pharmaceutical Industry 4

SNYNXN is a high-tech enterprise mainly engaged in the research, development, production and sales of Pharmaceutical Machines. The main products are Fluid Bed series, drying and granulating machine etc., which are mainly used in the fields of pharmaceutical, food, health care products and feed.
SNYNXN owns certificates of GMP, CE, SGS, ISO9001, AAA etc. With good quality and professional aftersales service, we enjoy high reputation among our customers over 120 countries and regions around the world.

Q: What information should be provided in order to get a proposal or quotation?
A: Our cone mill can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to process
2) Product size before milling
3) Required final product size
4) Process capacity in kg/h

Q: How the machine will be delivered ?
A: The granulator is packed in plywood box for shipping
