Specializing in the production of pharmaceutical machinery and granulating drying equipment.

|
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | GLP 200 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotaible |
| Packaging Details: | Film Wrapping, Wooden Case. |
| Delivery Time: | within 25 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 set/year |
| Features: | Low Consumption, High Efficiency | Type: | Spray Drying Machine |
|---|---|---|---|
| Raw Material Processing: | Liquid Material, Suspension Material | Working Process: | Continuous Feed-in |
| Drying Capacity: | 5-2000 KG/h, Variable Accordingly | Heating Source: | Gas Coal Oil Electric Biomess, As Optional |
| Working Temperature: | Customized, Control Accuracy: ±0.5℃ | Video Outgoing-inspection: | Provided |
| Machinery Test: | Provided | After Sales Service: | Online Support, Video Technical Support, Free Spare Parts |
| High Light: | Liquid Herb Vaporizer Atomizer,Centrifugal Spray Dryer 2000 KG/H,High Efficiency Centrifugal Spray Dryer |
||

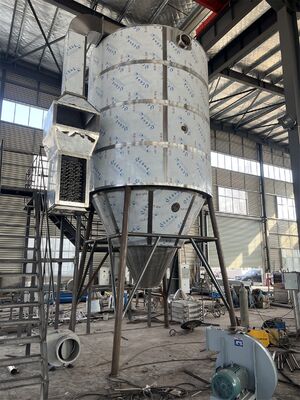

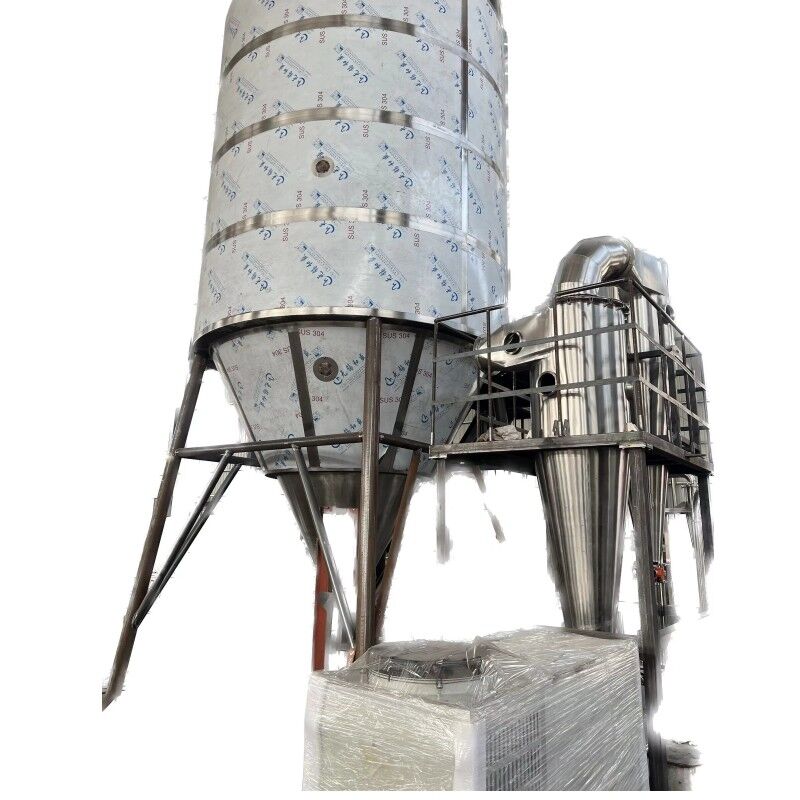

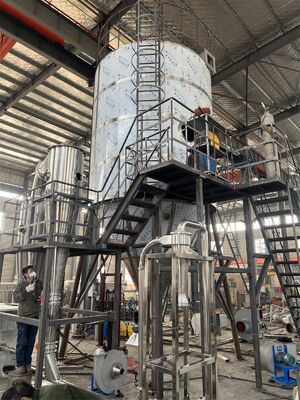

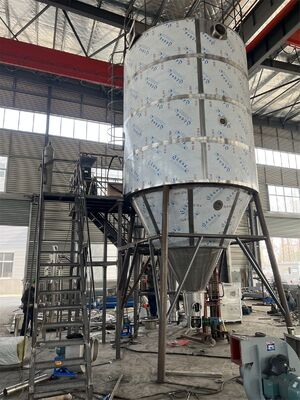

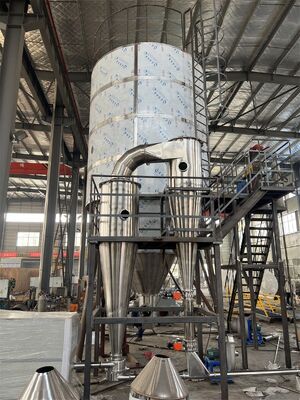

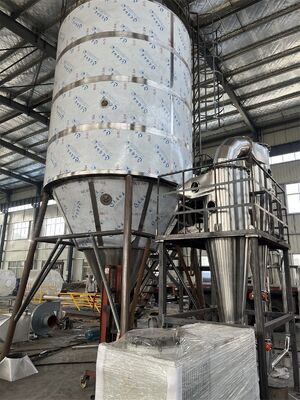

Description of GLP Series Industrial Liquid Spray Drying Machine
Industrial Liquid Spray Drying Machine Whey Protein Powder Spray Dryer Small Milk Powder Making Machine
1.Drying speed is fast
2.suitable for DRYING heat-sensitive materials
3.products with good dispersion, fluidity and solubility
4.The production procedures are simple and the operation and control are easy.
5.High drying efficiency. The liquid with the moisture contents 50-80% (for special materials, the contents may reach 90%) can be dried into the powder of particle products for one time.
6.After drying, there is no need for crushing and sieving, so as to reduce operation procedures in the production and to enhance product purity.
7.The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope.
8. SUS304 stainless steel material material
9. Control system integration operation
10.Specifically designed with a wall vibrator installed in the tower cone, so that sticky powder in the drying tower quickly fall, to avoid the product for a long time to stay at high temperatures, affecting product quality
11.The unit is equipped with quick cleaning holes in many places, easy to clean. Apply to the requirements of replacement varieties.
1. specially designed for hot air distributor, the wind is reasonable divided.
2. it is made according to the EU standard to improve the surface finish of the inner wall so that the material is difficult to adsorb.
3. the equipment is specially designed in the process of making, and it is convenient for the user to do antistatic treatment.
4. design an air hammer in the proper position of the tower body. regularly strikes the wall of the tower to reduce absorption.
Shrink the cone angle and increase the flow one cone surface.
5.Energy saving design
The main tower is designed as 3 layer structure. The insulation layer is designed between the jacket and the cover, which not only saves energy but also keep the temperature of work scene not too high. Improve the working environment, reduce the energy consumption of the factory's central air-conditioning.
6.Health design
Because the clearance needs in chemical production, especially for changing varieties The cleaning port is designed on the tower and the thicker pipeline, and the hand hole is designed for the easy aggregate part. The connection of each pipe is favorable for disassembly and installation. The whole silicone pad is used for cleaning and replacement.
The feed pipe is made of stainless steel pipe.
The material contact pipe is made of stainless steel pipe.
7.Recycling design
The wet dust remover is used in the tail gas treatment, especially designe demister to reduce the loss of water in the process of dust removal, you can use purified water as the circulating water if it is necessary to further reduce the cost of the product, the material return to the concentration process when it is set to a certain concentration, almost no loss of material.
Technical Specification:
| Model-GLP | 5 | 10 | 25 | 50 | 100 | 150 | 200~2000 |
|
Inlet temperature (°C) |
140-350 | ||||||
|
Outlet temperature (°C) |
80-90 | ||||||
| Moisture maximum evaporation (kg/h) | 5 | 10 | 25 | 50 | 100 | 150 | 200-2000 |
| Rotation form of centrifugal spray head | Compressed air transmission | Mechanical transmission | |||||
| Rotating speed (r.p.m) | 25000 | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
|
Diameter of spray disc (mm) |
50 | 50 | 100 | 120 | 140 | 150 | 180-340 |
| Heat source | Electricity | Electricity | Electricity + steam | Electricity+ steam, fuel oil, gas |
According to the actual situation |
||
|
Electric heating power (kw) |
9 | 20 | 36 | 63 | 81 | 99 | |
|
Length×width×height (m) |
1.8×0.93× 2.2 |
3.2x1.5x 2.4 |
3×2.7× 4.26 |
3.7×3.2× 5.1 |
4.6×4.2× 6 |
5.5×4.5×7 | |
| Dry powder recovery rate(%) | ≥95 | ||||||
If you face any problems in future during the testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference.
1. Pre-service
24 Hours online service for your consult.
Help choose the right model, and a series of service, person, advise.
1) More than 15 years manufacturer experience in test equipment and with strong research and development team.
2) Accepted of customization for all kinds of special specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
2. After sale service
1) We deal with your complaints within 24 hours and solution provide within 3 working days.
2) Training how to install the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1-year warranty service and all life maintenance; our engineers could go to your place for better service necessarily.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence in us.
4. Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
