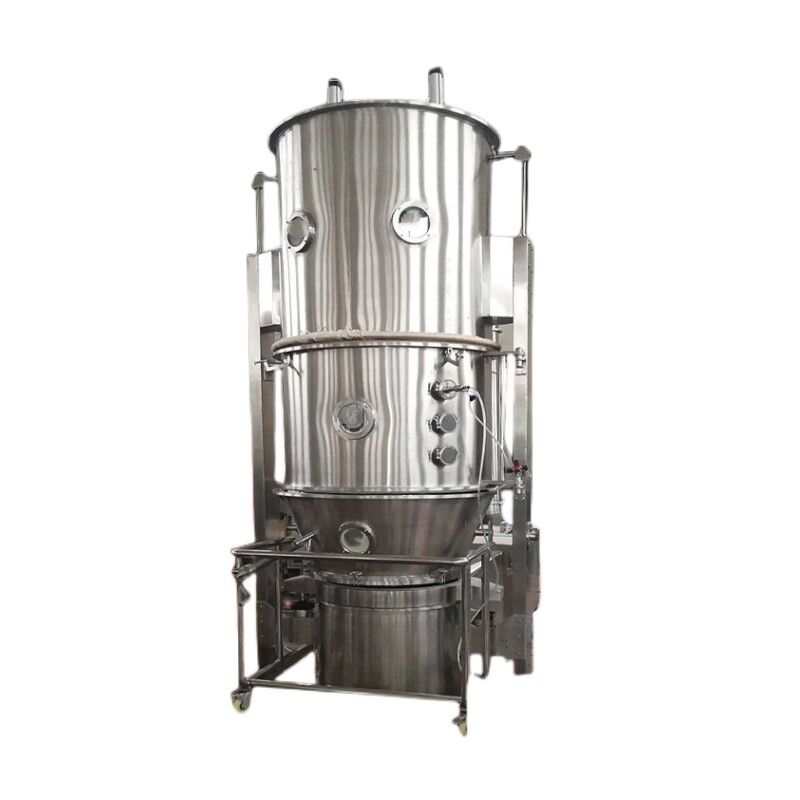

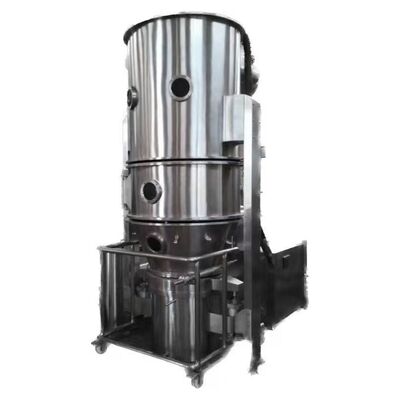

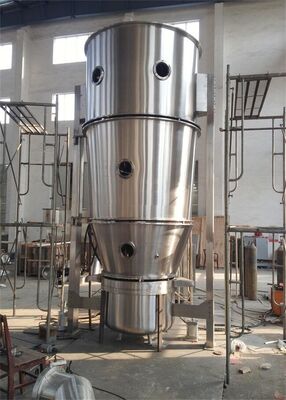

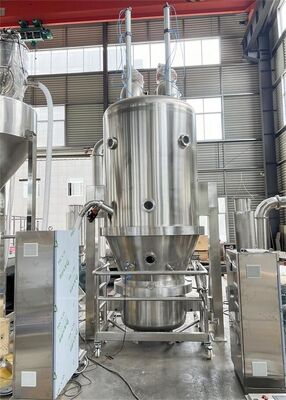

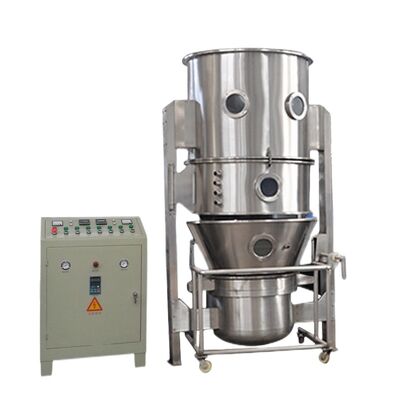

Pharmaceutical Fluid Bed Dryer For Powder Vertical Type 1100kg / Batch 2.2 KW

Pharmaceutical Fluid Bed Dryer For Powder Vertical Type 1100kg / Batch 2.2 KW

Pharmaceutical Fluid Bed Dryer For Powder Vertical Type 1100kg / Batch 2.2 KW
Pharmaceutical Fluid Bed Dryer For Powder Vertical Type 1100kg / Batch 2.2 KW
Pharmaceutical Fluid Bed Dryer For Powder Vertical Type 1100kg / Batch 2.2 KW
Product Details:
Place of Origin: JIANGSU, CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP, ISO 9001 Certification
Model Number: FG 120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD8000-150000/SET
Packaging Details: Film Wrapping, Wooden Case.
Delivery Time: 50 - 90 DAYS
Payment Terms: L/C, T/T,
Supply Ability: 500 SETS/YEAR
Contact Now
Detailed Product Description
Product Description: Pharmaceutical Fluidized Bed Dryer Output: 1.5 - 1100 Kg/batch
Used For: Drying Powders Granules Particles Machine Type: Fluid Bed Drying Machine
Functions: Drying, Reduce Material's Moisture, Fluid Fluidized Bed Dryer Price, Salt/powder/particle/chemical Drying Power: 2.2 KW
Power Source: 380V, 220v, Customized Applicable: Drying In Medicine Processing, Chemicals Processing, Food Processing,
Constructive: SUS304, SUS316L, Other, Stainless Steel304/316L Sales Service: SAT, Engineers Available To Field Maintenance And Repair Service
High Light:

pharmaceutical Fluid Bed Dryer

,

1100 kg/batch Vertical Fluid Bed Dryer

,

2.2 KW Fluid Bed Dryer

Description: Fluid Bed Dryer Machine

Product overview:
FL and FG series vertical boiling granulation dryer is the principle of material powder particles, in the raw material container (fluidized bed) in a ring fluidized state, after purified heated air preheating and mixing, the adhesive solution atomization spray, make several particles gathered into particles containing adhesive, due to the hot air to material drying, make the particles in water evaporation, adhesive solidification, this process is repeated.

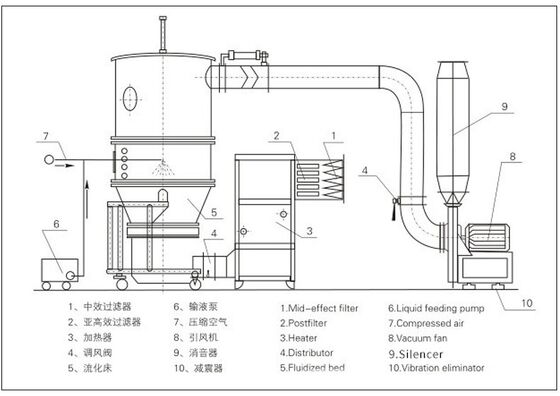

Principle
Material microparticles, in an annular fluidized state in the raw material container (fluidized bed), are preheated and mixed by heated air after purification. The adhesive solution is sprayed into the aerosol, so that several particles gather into particles containing the adhesive. Due to the hot air drying the material, the moisture in the particles evaporate. The adhesive coagulates, and this process is repeated to form ideal, uniform microporous spherical particles.

Application
1. Drug granulation and coating granulation: tablet granules, granule granules and capsule granules.
   Coding: granule, pill protective layer, color preparation, slow release, film, enteric coating.
2. Food granulation and coated sugar, coffee, cocoa powder, cream, powder juice, amino acids, seasonings, puffed food.
3. Pesticide, pigment pigment, dye granulation
4. Powder, particles, bulk material drying


Technical Parameter

Model 3 5 15 30 45 60 90 120 150 200 300 500
Volume 12 22 45 100 155 220 300 420 530 660 1000 1500
Capacity 1.5/4.5 4/6 10/20 15/45 25/65 40/80 60/120 80/160 90/200 100/300 150/450 300/300
Fan Power 2.2 3 4 5.5 7.5 11 15 18.5 18.5 22 30 37
Steam consumption 12 23 42 70 99 141 169 211 251 282 366 451
Compressed air consumption 0.3 1.3 0.3 0.4 0.4 0.6 0.6 0.9 0.9 0.9 1.3 1.5
noise (The fan is isolated installed)≤75
outline dimension 1.0
×0.55
×1.8
1.2
×0.6
×2.1
1.25
×0.9
×2.1
1.6
×0.9
×2.3
1.65
×1.1
×2.4
1.85
×1.25
×3
1.85
×1.25
×3
2.2
×1.65
×3.1
2.27
×1.72
×3.1
2.34
×1.9
×3.5
2.8
×1.9
×3.8
3
×2.55
×4.2

Applications

The machine is main used for drying powder or granules from pharmaceutical,foodstuff, chemical and so on industries.

Pharmaceutical Fluid Bed Dryer For Powder Vertical Type 1100kg / Batch 2.2 KW 0

Pharmaceutical Fluid Bed Dryer For Powder Vertical Type 1100kg / Batch 2.2 KW 1

Company profile
our products sell well in over 20 countries. The company is constantly updating and developing pharmaceutical machinery, chemical equipment, drying equipment, mixing equipment, granulator, coater and sewage treatment equipment and other products. With strict testing means and a complete set of scientific management procedures, and through the ISO9001 international quality system certification, product quality has reached the advanced level at home and abroad, pharmaceutical machinery products in line with "GMP standard". Our company tenet: product quality to win with excellence, sales and service to honesty, the contract to honor the letter.

Pharmaceutical Fluid Bed Dryer For Powder Vertical Type 1100kg / Batch 2.2 KW 2

Pharmaceutical Fluid Bed Dryer For Powder Vertical Type 1100kg / Batch 2.2 KW 3

Pharmaceutical Fluid Bed Dryer For Powder Vertical Type 1100kg / Batch 2.2 KW 4

FAQ
Q: Delivery period:
A: Around 15-60 days, delivery perious will vary as different types of machinery,


Q: Payment of terms:

A: Acceptable payment terms: T/T, L/C, Cash after signing the contract, firstdeposit 30% of total as prepayment, and rest 70% after approvement but before shipment

Q: Quality Warranty:
A: We guarantee all the machines are brand new; We guarantee every set of our machines after shipment have warranty 15 months, during warranty period we will provide technician debugging onsite, or free spare parts caused by the malfunction of machines. We guarantee we reply the user's bewilderment within 24 hrs after receive notification.

Q: Package of merchandise:
A: Inner packed with plastic wrapping, external is plywood case.

Q: What is service when we place an order with you?
A: First we invite you to visit our factory, and negotiate the tecnnology and choose model of machines, and give feasible advice of each material. Secondly visit our factory to do FAT before shipment, give us your advice and we modify the machine if not meet the user's satisfaction. Lastly, we will dispatch at least 1 experienced and responsible technician to go abroad for commissioning and train the operators. lf no need onsite commissioning, we provide video guidance.

Q: Which information do you require then you could choose model subsequently?
A: We need to know the information as below: What is your material name? What is the initial moisture percentage before drying? What is the residual moisture percentage after drying? What is the heating temperature your material can undertake during drying process? What is the heating source, steam, electricity, natural gas or others? Last but important, what is capacity needed as how many kgs/h before drying or after drying?
