Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | FL 120 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Film wrapping, wooden case. |
| Delivery Time: | 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SETS/ YEAR |

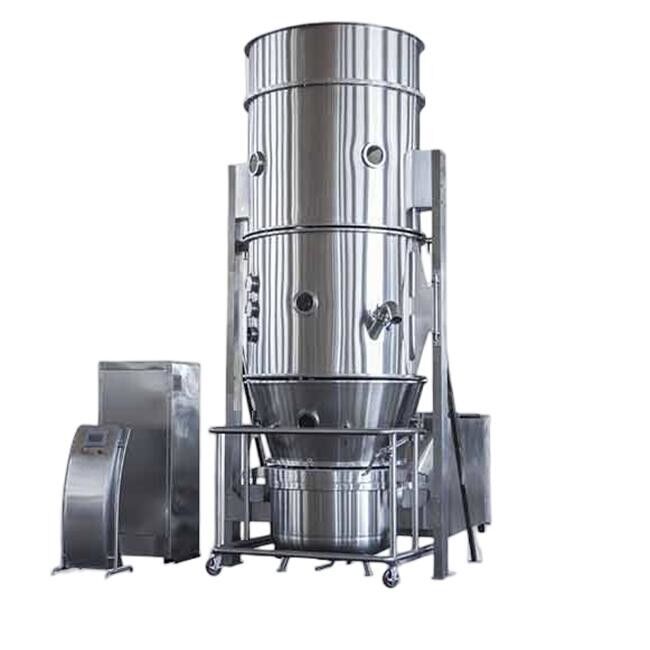

| Product: | FL-120 Fluid Bed Drying Granulator | Function: | Granulating & Drying, Granulator, Food, Pharmaceutical, |
|---|---|---|---|
| Container Volume: | 12L-1500L | Capacity: | 80 - 160 Kg/batch |
| Materials Processed: | Powder, Granules, Pharmaceutical, Food, Chemical Industrial | Machine Material: | SUS304, SUS316L, Other, Stainless Steel304/316L |
| Temperature: | Room Temp. - 120 | Working Time: | 45-90 Min (varies As Different Raw Materials) |
| High Light: | SNYNXN SS304 fluid bed drying,SS316 fluid bed dryings,SNYNXN mixing fluid bed dryer granulator |
||
Features
1 . Fluid bed to achieve fast heat transmission of medium.
2. Seal negative pressure operation, there is no dust.
3. Because of using anti-static material as filter, it is safe in operation;
4. The equipment has no dead corner so it is easy to clean fully and there is no cross pollution;
5.It is conformity with the requirements of GMP.
Technical Parameter
| type | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||
| item | unit | ||||||||||
Container of raw material |
diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
Production capacity |
min | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
| max | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
| consumption of steam | kg/h | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
amount of compressed air |
m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
| Power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
| Temperature | ºC | 120°C (Adjustable from ambient to 120) | |||||||||
| Yield | % | >99 | |||||||||
| Option time | min | 1530(depends on material) | |||||||||
| Content at final term. | % | -0.2( depends on material) | |||||||||
| Noise | dB | ≤75 | |||||||||
| Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 | |
Company profile
Q: Are you really a manufacturer? Where is your factory? How can I visit your factory?
A: Sure, we are a source manufacturer, Jiangyin Snynxn Granulating and Drying Equipment Co.,ltd. SINCE 2007. Our factory is located In Jiangyi city, Jiangsu province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know if your machine is designed for my product?
A: Don't worry, you can send us your rough draft or product design. We will confirm with engineers and designers. After the machines are done, we will take videos and clearer pictures for you. We can also show you on-line by video chatting. And the machines will be adjusted well before shipment.
Q: How can I trust you for the first-time business?
A: Please note our business license and certificates above. If you don't trust us, we suggest using Made-in-China as platform for all transactions to protect your money and ensure our service for you.
Q: How about the after service and guarantee period?
A: We offer 12 months warranty since the arrival of the machine. Overseas technical support is available. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How to contact you?
A: You can click at the "contact supplier" to contact online persons. We are always here for you.
Need more machines details and videos? Please contact us directly!
