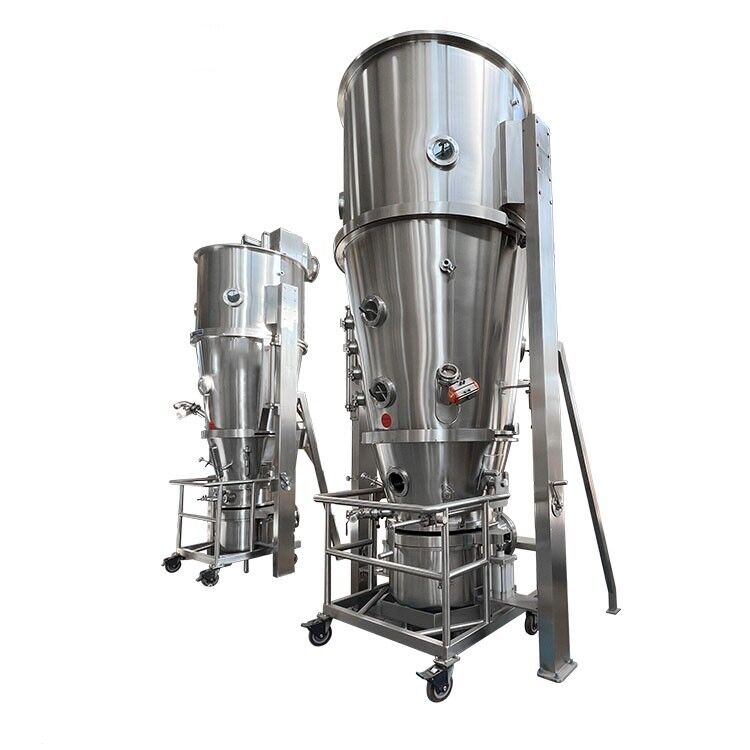

SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder

SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder

  • SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder
  • SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder
  • SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder
  • SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder
SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: SGS CE ISO GMP
Model Number: FL 60
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: Film wrapping, wooden case.
Delivery Time: 60 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 SETS/ YEAR
Contact Now
Detailed Product Description
Machine Model: FL-60 Fluid Bed Granulator Final Product: Milk Powder, Detergent Powder, Medicine Powder Etc.
Heat Source: Steam, Electricity, Hot Oil, Coal, Gas Etc Main Material: SUS304, SUS316L, Other, Stainless Steel304/316L
Outer Size: 1.85*1.4*3M Or Customized Processing Method: Spray Drying And Granulation
Certifications: GMP, ISO, CE, SGS After Sales Warranty: Supply Video, Online Technical Support, Spare Parts
Highlight:

SUS304 Fluid Bed Granulator

,

Fluid Bed Granulator

,

milk powder Fluid Bed Coater

Machine Name:

Fluid Bed Granulator And Coator For Pharmaceutical Industry​ Fluid Bed Dryer Granulator



SUS304 Fluid Bed Granulator and Coater For Pharmaceutical Industry



Main Features

Through powder granulation, improve fluidity, reduce dust flying.
The solubility was improved by powder granulation.
Mixing- granulation -drying is completed in one machine.
Use anti static filter cloth to ensure the safety of the equipment.
Set up the pressure discharge hole, in case of explosion, personnel will not be injured.
There is no dead angle in the equipment, the loading and unloading is light and fast, and the washing is convenient, which
conforms to the GMP specification.
High degree of automation, equipped with program control, simulation screen display technology for users to choose.

Working Principle

Powder material into the hopper container, due to the effect of hot air flow, the powder suspension shows a fluidized circulation flow and achieve uniform mixing,at the time, spray a mist binder to wet the powder in the container to make the powder condensed into loose small particles, when granulating, due to the high-efficiency drying of hot air flow, the water is continuously evaporated and the powder is solidified continuously, process repeated, forming ideal and uniform spherical particles with multiple micropores, the three processes of mixing, granulation and drying are completed in the container at one time.The water content and disintegration time of solid preparation were taken as the investigation indexes, and the results were tested by T test. Results: when the solid preparation was dried, the boiling drying method was significantly different from the traditional drying method.



Applications
Drug granulation and coating. Granulation: tablet granule, granule for granule, capsule granule. Coating: pellet, pill protective layer, color slow release, film, enteric coating. Food granulation and coating. Fried sugar, coffee, cocoa powder, cream powder juice, amino acid, seasoning, puffed food. Granulation of pesticides, pigments and dyes. Powder, granule, block material drying.



Technical Data

Capacity (Kg /batch) 5 15 30 60 120 200 300 500 800-1000
Scope of application for liquid(g/cm3) <1.3



By client
























Material yield rate (%) ≥99
Qualified rate of end products (%) ≥85
Container volume (L) 22 45 100 220 420 670 1000 1500
Diameter r(mm) 500 550 700 1000 1200 1400 1600 1800
Power of fan (Kw) 3 5.5 7.5 11 18.5 22 30 45
Power of supply liquid motor (Kw) 0.37
Pressure of steam (Mpa) 0.4-0.6
Consumption of steam (Kg/h) 18 35 60 120 140 180 310 400
Pressure of compressed air (Mpa) 0.4-0.6
Working temperature (℃) Normal temperature -120℃ could adjust
Overall dimension of machine (L×W×H) refer to installation drawing or customer’s room

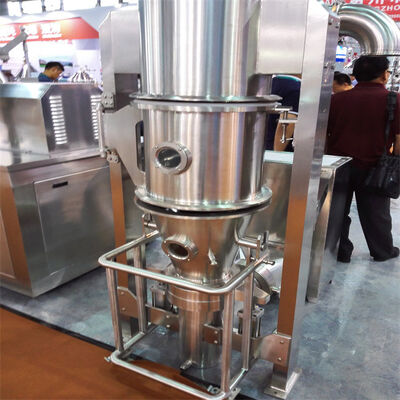

SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder 0

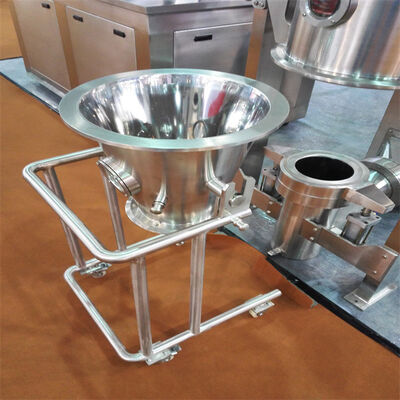

SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder 1

Material
Stainless Steel
Customized
Accept
Service
OEM and OEM
Package
Standard wooden packing for sea shipping

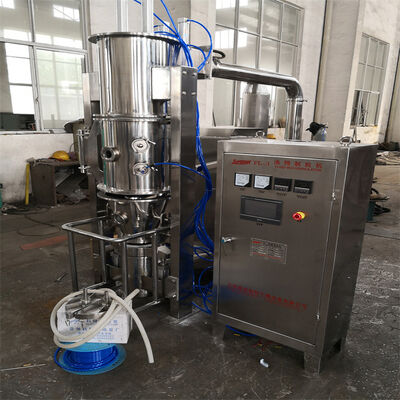

SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder 2



OUR FACTORY:


SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder 3

SUS304 SUS316 Fluid Bed Granulator Coater For Pharmaceutical Industry Milk Powder 4
