Pharmaceutical Lab Use Mini Fluid Bed Spray Granulator Drying Machine

Name: Pharmaceutical Lab Use Mini Fluid Bed Spray Granulator Drying Machine
Brand: SNYNXN
SKU: FL 3
Rating: 4.5 (122 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	SGS CE ISO GMP
Model Number:	FL 3

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	NEGOTIABLE
Packaging Details:	Film wrapping, wooden case.
Delivery Time:	20 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 SETS/ YEAR

Contact Now

Detailed Product Description

Type:	Fluid Bed Drying And Granulating Equipment	Application:	Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing Line
Evaporation Capacity:	23 (kg/h)	Output Capacity:	1.5-4 Kg
Heat Method:	Electric Heating	Processing:	Spray Drying And Granulation
Case Body Shape:	Square-shape	Construction Material:	Stainless Steel 304 / SUS316L
After Sales Warranty:	Supply Video, Online Technical Support, Spare Parts	Warranty:	1 Year, 2 Years Of Core Components
High Light:	Pharmaceutical fluid bed spray granulator , Lab fluid bed spray granulator , 23kg/h fluidized bed drying

Description of FL Series Mini Fluidized Bed Drying Granulator Machine

Pharmaceutical Lab Use Mini Fluidized Bed Drying Granulator Machine Fluid Bed Dryer

The fluidized granulator is a new craft set combining the fluidized bed technology and spraying technology to make granules in medical industry, foodstuff, chemical industry and so on.

Features

(1) It has four functions: Mixing, drying, granulating. it can make powder material into granules by one step directly, dry the material, and quickly fluidizing granulate.

(2) Under airtight negative pressure condition, clearance, no dead angle.

(3) Making use of the fluidized material as wet sticky thing to make granules can save much alcohol and bring down the cost, and can produce small, no sugar or low sugar medical particle. (4) The final products can be easy fusion and decomposed.

Principle of work:

The powder granule in the container (fluization) appear in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Applications

Drug granulation and coating.

Granulation: tablet granule, granule for granule, capsule granule. Coating: pellet, pill protective layer, color slow release, film, enteric coating. Food granulation and coating

Fried sugar, coffee, cocoa powder, cream powder juice, amino acid, seasoning, puffed food. Granulation of pesticides, pigments and dyes. Powder, granule, block material drying.

Technical Data

Capacity (Kg /batch)	5	15	30	60	120	200	300	500	800-1000
Scope of application for liquid(g/cm3)	<1.3								By client
Material yield rate (%)	≥99
Qualified rate of end products (%)	≥85
Container volume (L)	22	45	100	220	420	670	1000	1500
Diameter r(mm)	500	550	700	1000	1200	1400	1600	1800
Power of fan (Kw)	3	5.5	7.5	11	18.5	22	30	45
Power of supply liquid motor (Kw)	0.37
Pressure of steam (Mpa)	0.4-0.6
Consumption of steam (Kg/h)	18	35	60	120	140	180	310	400
Pressure of compressed air (Mpa)	0.4-0.6
Working temperature (℃)	Normal temperature -120℃ could adjust
Overall dimension of machine (L×W×H)	refer to installation drawing or customer’s room

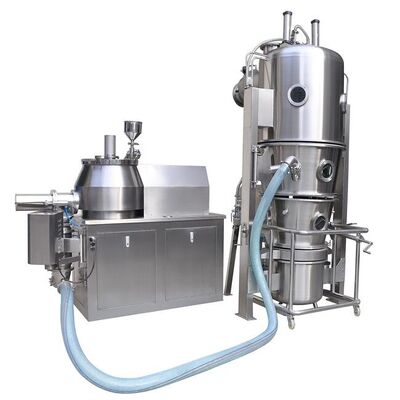

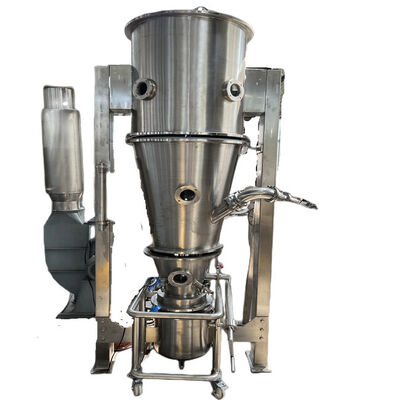

Pharmaceutical Lab Use Mini Fluid Bed Spray Granulator Drying Machine 0

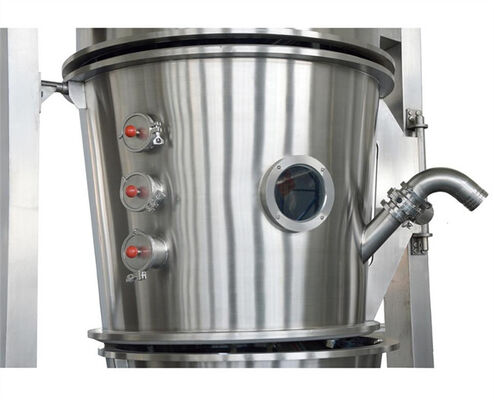

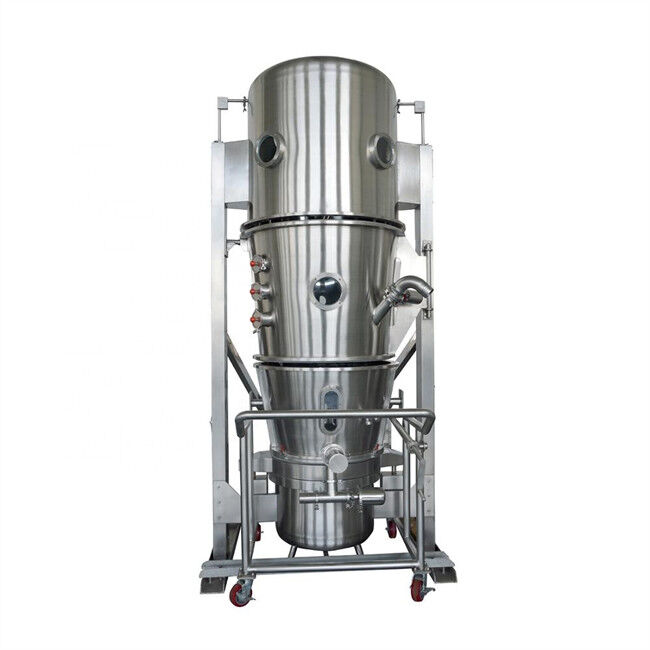

Pharmaceutical Lab Use Mini Fluid Bed Spray Granulator Drying Machine 1
