Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | FL 300 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Film wrapping, wooden case. |
| Delivery Time: | 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SETS/ YEAR |
| Product: | FL-300 Fluid Bed Granulator | Used For: | Granulating & Drying Food, Pharmaceutical, Chemicals |
|---|---|---|---|
| Capacity: | 150 - 450 Kg/batch | Heat Source: | Steam, Electricity, Hot Oil Etc |
| Container: | 1000L | Processed: | Powder, Granules Of Pharmaceutical, Food, Chemical Industrial |
| Material: | SUS304, SUS316L, Other, Stainless Steel304/316L | After Warranty: | Supply Video, Online Technical Support, Spare Parts |
| High Light: | Pharmaceutical fluidized bed drying process,1000L fluidized bed drying process,450kg/batch fluid bed processor technology |
||

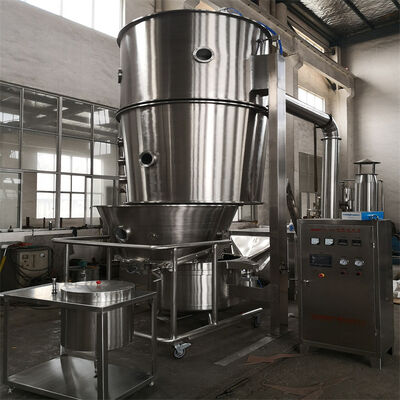

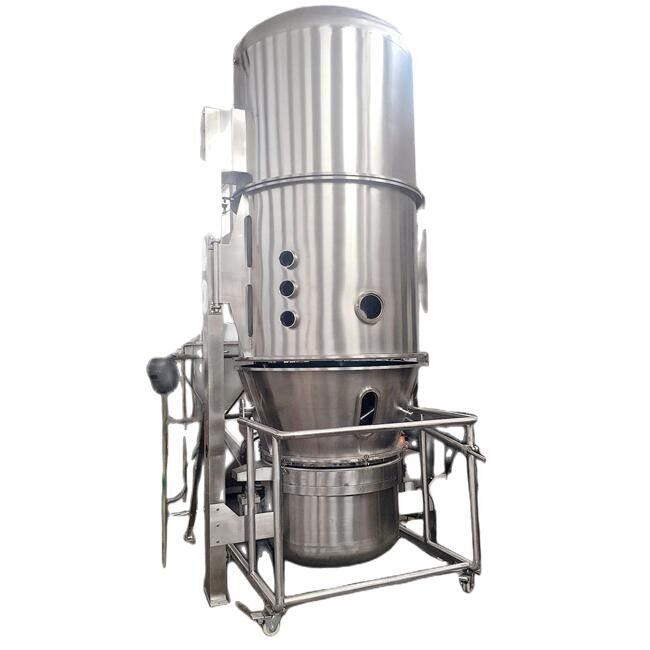

FL Series One Step Fluid Bed Dryer Granulator
1. cGMP Design: 150 grit exterior finish, mirror finish on internal surfaces. The system can meet GMP standard;
2. HEPA air filter: The air filter consists of primary stage, secondary stage and high efficiency stage air filter and the air cleanness can reach 100,000 grade;
3. Automatic pneumatic sealing: two pneumatic cylinders lift the granulation bowl for sealing with the top chamber; the inflated square rubber ring will seal the bottom chamber to create a completely sealed granulation chamber;
4. Two-bag-filter-chamber system: The top bag filtering system has two chambers which work alternately to avoid air pressure onto the filter bag. The product rate can reach 99%.
5. Accurate air flow control: The exhaust fan is combined with Siemens inverter to accurately control the air flow rate for achieving perfect fluidization.
6. Good working condition: The whole system is working under negative pressure, so there is no powder leaking at all. Exhaust fan is equipped with silencer as well as isolated installation, the noise is below 75 dB(A).
7. Safety measures: The whole system adopts following measure to 100 % make sure safety during operation:

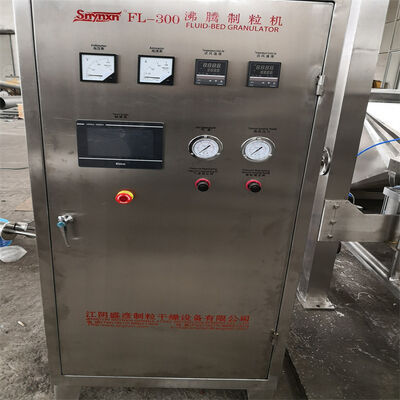

1) Function interlocked: All the function buttons in the control panel are interlocked (only proper operation steps can run the system) to prevent any mistakable operation to the machine.
2) Explosion proof design: Granulation chamber is equipment with venting. When the pressure inside the chamber is getting higher than the rated one (say 2 bar), the rupture membrane will break to release the pressure.
3) Pressure monitoring: Pressure sensor is equipped to monitor pressure change inside the granulation chamber. When pressure is getting higher (especially when the bag filter is choked) and positive pressure condition is formed, electrical heater and exhaust fan will stop automatically and pressure release valve will open.
Main Technical Parameters
|
Model
|
FL-30
|
FL-60
|
FL-120
|
FL-200
|
FL-300
|
|
Volume of drying bowl (L)
|
100
|
220
|
420
|
670
|
1000
|
|
Diameter (mm)
|
700
|
1000
|
1200
|
1400
|
1600
|
|
Loading capacity (kg/batch)
|
15-45
|
30-90
|
80-160
|
100-300
|
150-450
|
|
Exhaust fan (KW)
|
7.5
|
11
|
18.5
|
22
|
30
|
|
Steam consumption (kg/h)
|
70
|
140
|
210
|
282
|
366
|
|
Steam pressure (Mpa)
|
0.3-0.6
|
||||
|
Working temperature (°C )
|
Ambient temp. -120
|
||||
|
Working time (Min)
|
45-90
|
||||
|
Product collection rate (%)
|
≥ 99
|
||||
|
Noise (dBa)
|
≤ 75
|
||||
|
Weight (kg)
|
700
|
1000
|
1300
|
1500
|
1800
|
|
Dimension (L x W x H) M
|
1.6x1.1x2.5
|
1.85x1.4x3
|
2.2x1.65x3.3
|
2.34x1.7x3.8
|
2.8x2.0x4.0
|

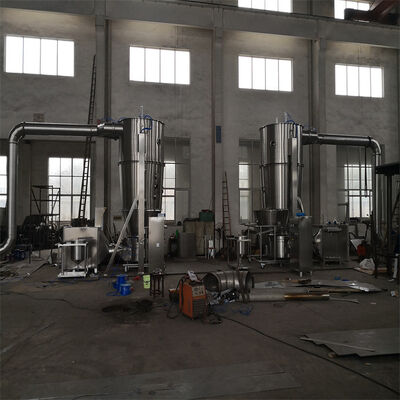

OUR FACTORY:
SNYNXN is a comprehensive company integrating R&D, production and sales. We carefully design and manufacture food and pharmaceutical processing equipment for customers around the world. Based on product quality, we constantly pursue technological innovation, expand and improve our product line. We have first-class scientific research talents, a professional sales team, and perfect after-sales service to ensure that you can use our products without worry in the whole process.
Since its establishment, our company has developed various products, including drying ovens, spray dryers, freeze dryers, granulators, industrial dryers, mixing machines, etc. Our products are best-selling all over the world and have gained wide praise, which are applied in food, pharmacy, chemical industry, schools, scientific research institutions and other fields. In production, we have established a complete quality management system to ensure product quality, realize safe production, and strive to produce attractive appearance, practical, stable, and cost-effective products. We will always serve you sincerely and believe that SNYNXN will become your preferred supplier.
Q: What information should be provided in order to get a proposal or quotation?
A: Our fluid bed dryer granulator can be customerized.
Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to make
2) Bulk density and particle size of your product
3) Type of binder you plan to use
4) Process capacity in kg/batch
5) What heat source you plan to use; steam or electricity
6) Your required granule size
Q: How the granulator will be delivered ?
A: The dryer is packed in plywood box for shipping
Need more machines details and videos? Please contact us directly!
