Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | FL 60 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |

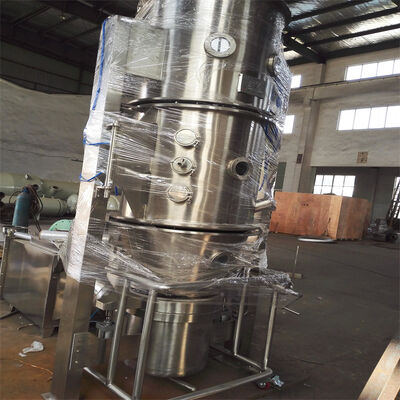

| Packaging Details: | Film wrapping, wooden case. |
| Delivery Time: | 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SETS/ YEAR |
| Equipment: | FL-60 Fluid Bed Drying Granulator | Finished Product: | Milk Powder, Detergent Powder, Medicine Powder Etc. |
|---|---|---|---|
| Heating Source: | Steam, Electricity, Hot Oil Etc | Construct Material: | SUS304, SUS316L, Other, Stainless Steel304/316L |
| Machine Type: | Drying Granulator | Dimension: | 1.85*1.4*3M Or Customized |
| After Warranty: | Supply Video, Online Technical Support, Spare Parts | Standard: | GMP, ISO, CE |
| High Light: | CE Automatic fluid bed drying equipment,ISO fluid bed drying equipment,SUS316L vertical fluidized bed dryer |
||

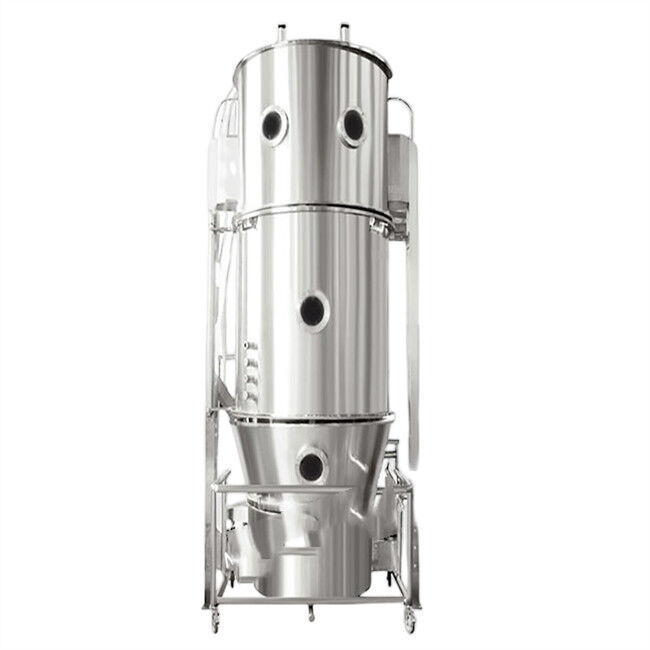

Machine Name: One Step Powders Fluid Bed Dryer Granulator
Description:
Powder materials fed into hopper sealed container will form a suspending & fluidizing state and flow circularly owing to hot air steam action so as to reach to be uniformly mixed, and then fog type adhesive is sprayed to lubricate/wet powder inside the container, making powder to be condensed as small porous grains and finished grains, that is to say, due to high effective drying & continuous vaporized moisture on continuous condensed powder under hot air-steam action, ideal, uniform and porous ball-shaped grains will be formed in the container at three operation of mixture, granulation and drying finished a time, namely "One Step Granulating".
Application:
This dryer is applicable for the mixture, granulation and drying of powder materials. It is widely used in the fields of medicine, foodstuff, chemical, light industry, etc and is one of the granulating drier adopted extensively in the world at present.
Technique parameters
|
Item |
3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | ||
| Container of raw material | Dia. | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | |
| Production capacity | Min | Kg/batch | 1.6 | 4 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | |
| Consume of steam | Kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | |
| Amount of compressed air | M3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 1.1 | 1.6 | |
| Power of fan | kW | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | |
| Temperature | ℃ | From room temperature to operating temperature in 120℃ to be set randomly | ||||||||
| Yield | % | >99 | ||||||||
| Option time | Min | 15-30 | ||||||||
| Content at final term | % | -0.2 | ||||||||
| Noise | dB | ≤75 | ||||||||
| Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4400 | |
ADVANTAGES:
1). All parts of contacted with raw materials are made up by stainless steel.
2). Seated using silastic gas-filled sealing ring.

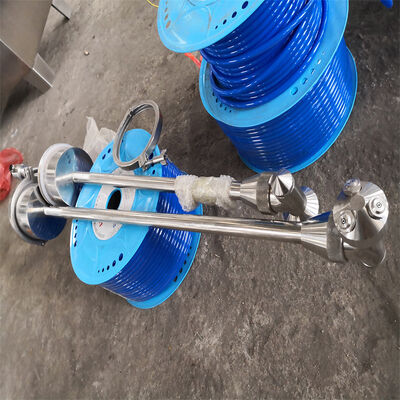

3). Able to control granular size by means of two-flow spraying gun.
4). Able to finish mixture, granulation and drying in the same sealed container thanks to rapid & high effective operation, thus preventing powder from fly up, leakage and pollution.
5). The upper top and lower bottom of the machine are all butterfly seal joints which are beautiful in shape, small in air resistance, clean, easy to be washed, have no dead comer and are in conformity with requirements of GMP.
