120KG Pharmaceutical Fluid Bed Granulator For Pellet And Pills Production Line

Name: 120KG Pharmaceutical Fluid Bed Granulator For Pellet And Pills Production Line
Brand: SNYNXN
SKU: FL 120
Rating: 4.7 (192 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	FL 120

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	NEGOTIABLE
Packaging Details:	Film wrapping, wooden case.
Delivery Time:	60 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 SETS/ YEAR

Contact Now

Detailed Product Description

Machine Type:	FL-120 Fluid Bed Drying Granulator	Product Type:	FERTILIZER, Milk Powder, Medicine Powder, Chemicals
Steam Pressure:	0.3~0.6 Mpa	Heating Method:	Steam, Electricity, Hot Oil Etc
Showroom Location:	After Consult	Industry:	Pharmaceutical, Agriculture , Foodstuff And Chemical
Power Supply:	220V, 380V/50HZ, Customized	Certification:	GMP, ISO, CE
High Light:	120KG Fluid Bed Granulators , Pharmaceutical Fluid Bed Granulator 120KG , GMP vibrating bed dryer SNYNXN

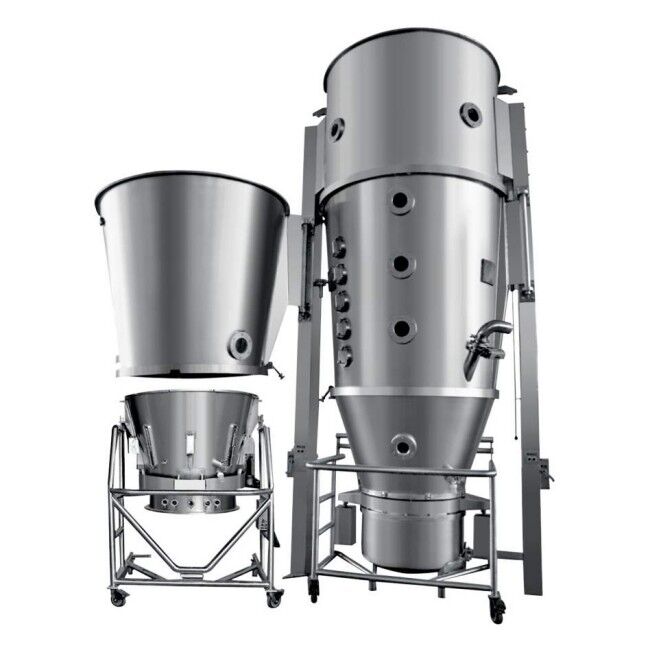

Machine Name: Pharmaceutical Fluid Bed Dryer Granulator

Automatic Model FL 120KG Pharmaceutical Fluid Bed Dryer Granulator For Pellet And Pills Production Line

Features:

Combines multifunctional functions of pilling, granulation, coating, mixing and drying, reduce steps of techniques, process of contamination, and save the labor cost.

Working Principle:

The powder granulation in the container (fluidization) appear in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and Porous granules.

Main properties:

1. Because of powder Granulation, the fluidity is improved and the dust is reduced;

2. Because of powder Granulation, its solving property is improved;

3. The mixing ,Granulating and drying can be completed in one step-inside the machine;

4. The operation of equipment is safe because the anti static filtering cloth is adapted;

5. The operation of personnel can not be damaged if explosion take place because there is releasing hole;

6. The equipment had no dead corner, Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP

Technique parameters

ITEM			3	5	30	60	120	200	300	500
Container of raw material	Dia.	mm	300	400	700	1000	1200	1400	1600	1800
Container of raw material	Volume	L	12	22	100	220	420	670	1000	1500
Production capacity	Min	Kg/batch	1.6	4	15	30	80	100	150	250
Production capacity	max	Kg/batch	4	6	36	72	140	240	360	600
Consume of steam		Kg/batch	12	23	70	140	211	282	366	465
Amount of compressed air		M3/min	0.3	0.3	0.3	0.6	0.6	0.9	1.1	1.6

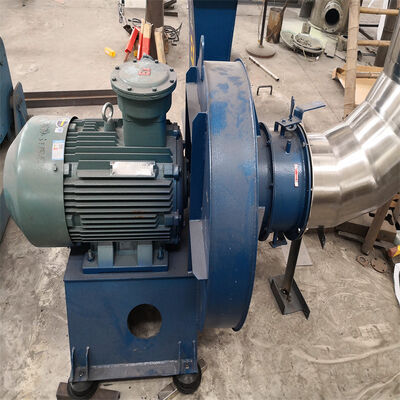

Power of fan		kW	2.2	4	5.5	11	18.5	22	30	45
Temperature		℃	From room temperature to operating temperature in 120℃ to be set randomly
Yield		%	>99
Option time		Min	15-30
Content at final term		%	-0.2
Noise		dB	less than 75
Height of main machine		mm	2100	2300	2500	3000	3300	3800	4000	4400
