Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | FL 15 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Film wrapping, wooden case. |
| Delivery Time: | 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SETS/ YEAR |
| Equipment: | FL 15 Fluid Bed Drying Granulator | Function: | Mixing, Drying, Granulating, Coating |
|---|---|---|---|
| Processing: | Powder, Granules, Pharmaceutical, Food, Chemical Industrial | Batch Output: | 10 - 20 Kgs |
| Applicable Industries: | Pharmaceutical Processing Production Line | Core Components: | PLC, Engine, Pump |
| Warranty Of Core Component: | 1 Year | After-sales Service Provided: | Online Support, Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Video Technical Support, Field Maintenance And Repair Service |
| High Light: | 10kgs Fluid Bed Granulator,20kgs Fluid Bed Granulator,fluidized bed spray dryer |
||
Name: Fluid Bed Granulator Mixing-Granulating Coating Of Granules

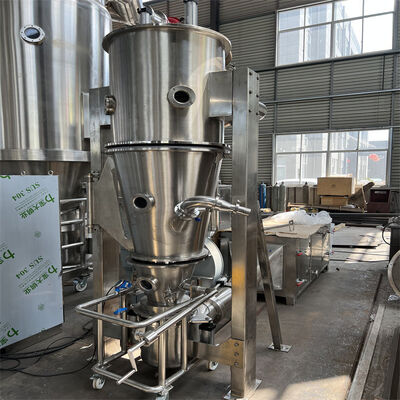

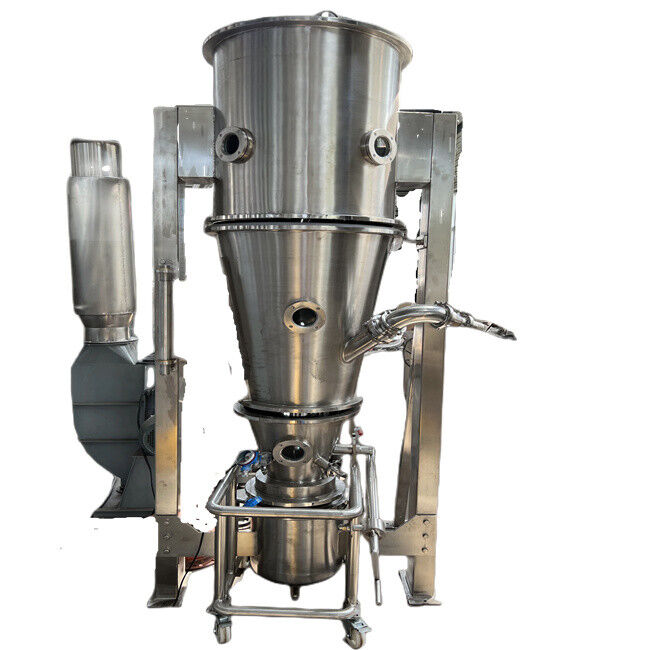

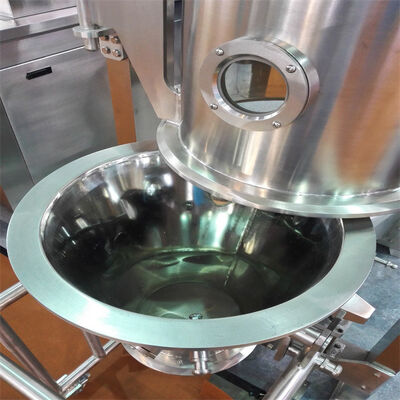

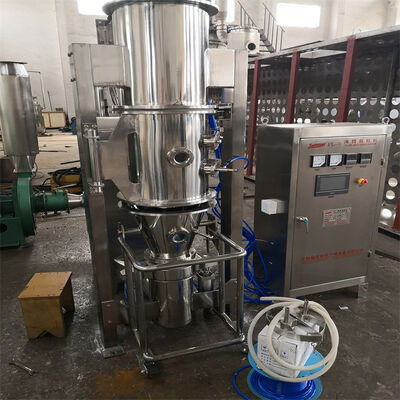

FL-15 Fluid Bed Granulator Mixing-Granulating Coating Of Granule Top Spraying Drying In One Step
|
Item
|
Specification
|
|||||
|
Name
|
Unit
|
3
|
5
|
15
|
30
|
|
|
Container Volume
|
L
|
12
|
22
|
45
|
100
|
|
|
Diameter
|
mm
|
350
|
500
|
550
|
700
|
|
|
Capacity
|
kg/batch
|
3
|
5
|
15
|
30
|
|
|
|
Pressure
|
Mpa
|
0.4-0.6
|
|||
|
Consumption
|
kg/h
|
15
|
18
|
35
|
60
|
|
|
Power of fan
|
kw
|
2.2
|
3
|
5.5
|
7.5
|
|
|
Power of supply liquid motor
|
kw
|
0.37
|
||||
|
|
Pressure
|
Mpa
|
0.4-0.6
|
|||
|
Consumption
|
m 3 /min
|
0.3
|
0.3
|
0.6
|
0.9
|
|
|
Working temperature
|
℃
|
Normal temperature -120℃ could adjust
|
||||
|
Noise
|
DB
|
Installed separated with fan ≤75
|
||||
|
Overall dimension of machine
|
mm
|
Installation drawing or customer’s room
|
||||
