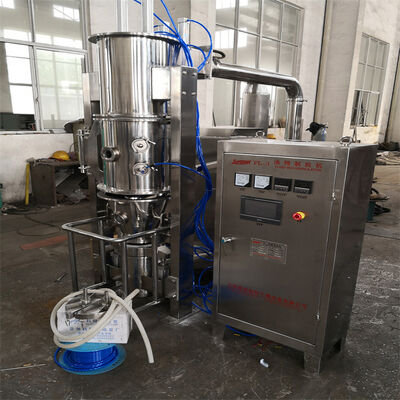

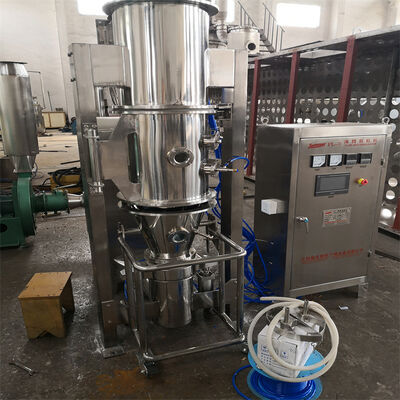

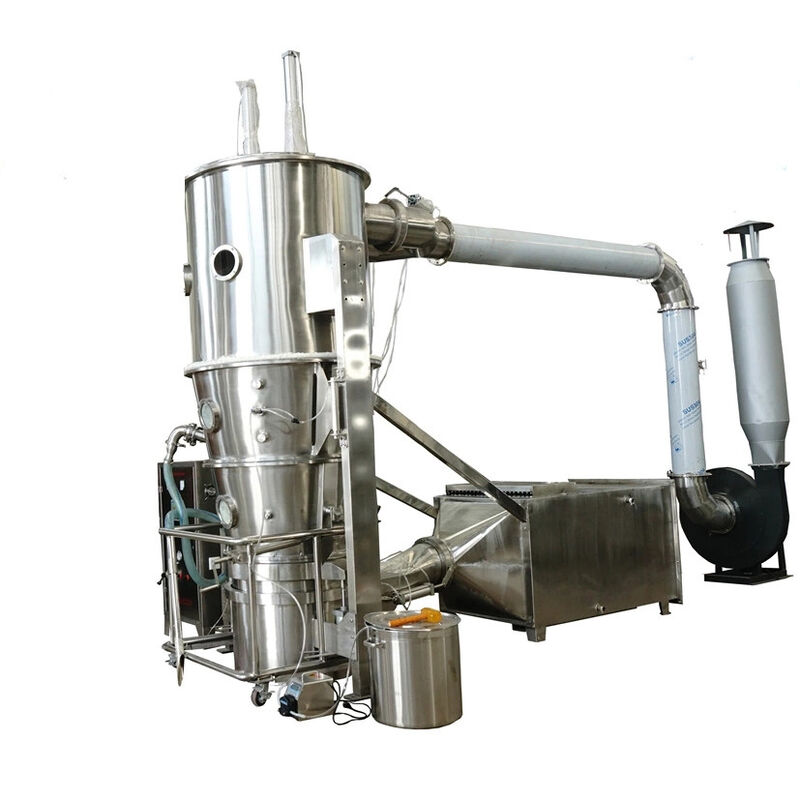

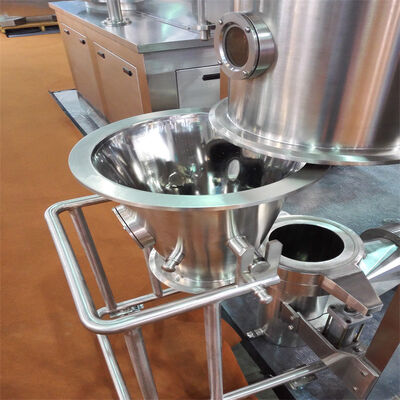

FL Vertical Fluid Bed Granulator 160KGS Pharmaceutical Spray Granulating Machine

FL Vertical Fluid Bed Granulator 160KGS Pharmaceutical Spray Granulating Machine

FL Vertical Fluid Bed Granulator 160KGS Pharmaceutical Spray Granulating Machine
FL Vertical Fluid Bed Granulator 160KGS Pharmaceutical Spray Granulating Machine
FL Vertical Fluid Bed Granulator 160KGS Pharmaceutical Spray Granulating Machine
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: FL 120
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: Film wrapping, wooden case.
Delivery Time: 60 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 SETS/ YEAR
Contact Now
Detailed Product Description
Type: FL-120 Fluidized Bed Granulator Processing Capacity: 80-160KGS
Heating Method: Vapor Steam, Electricity, Heating Oil, Coal Final Products: FERTILIZER, Milk Powder, Medicine Powder, Chemicals
Key Point: Multi Function In Single Step, Rapid, High Efficiency Applicable: Pharmaceutical, Agriculture , Foodstuff And Chemical
Power Supply: 380V/50HZ, Or Customized Post Sales Service Provided: Online And Field Maintenance Or Repair Service
High Light:

SNYNXN 80KGS Fluid Bed Granulator

,

SNYNXN Vertical Fluid Bed Granulator

,

160KGS pharmaceutical granulators

Name: Multi function Spray Granulating Machine Fluid Bed Granulator



FL Vertical Fluidized Bed Machine Pharmaceutical Spray Granulating Machine Fluid Bed Granulator



Fluid bed Granulator's Brief Introduction:
Put the powder for granulation or the granular material for coating into the fluidized bed. The cold air enters from the heating chamber at the rear of the main engine. After the primary effect and intermediate effect filter, the heater is heated to the temperature required by the inlet air and then enters the fluidized bed. It is fluidized in the bed, and the binder for granulation is sent to the two-fluid atomizer by the infusion pump, and sprayed to the fluidized material after atomization. The powders bridge each other and gather into granules and grow up or form a film on the material to be coated. After the water volatilizes, it is taken out of the machine by the exhaust air.

Equipment Working Principle:
The material is suspended under the action of clean hot air flow (negative pressure) to form a fluidized state, and its surface is in full contact with the hot air, and the heat is evenly heated to a heat exchange state, which has extremely high efficiency.

Equipped with a suitable spray system and further improvements in the functional structure of the fluidized bed, it appropriately exhibits the characteristics of fluidized bed spray drying granulation and coating, that is, it has become a kind of drying, granulation, and coating. Use process equipment.




Main Machine Paramenters
Item
Unit
Model
FL-300
FL-500
FL-1000
Container
Diameter
mm
1600
1800
2200
Volume
L
1000
1500
3000
Capacity
Min.
kg/batch
150
250
800
Max.
kg/batch
450
750
1200
Steam consumption
kg/batch
366
451
750
Steam pressure
Mpa
0.1-0.4
0.1-0.4
0.1-0.4
Compressed air volume
m3/min
1.5
3
4
Fan motor power
kW
37
45
90
Temperature
℃
RT-120
RT-120
RT-120
Material collection rate
%
＞99
＞99
＞99
Operating time
min
15~30 (subject to raw material)
15~30 (subject to raw material)
15~30 (subject to raw material)
Final moisture content
%
0.2
0.2
0.2
Noise
dB
≤75
≤75
≤75
Weight
kg
1800
2500
3500
Dimensions
m
2.8*2*4.5
3*2.25*5
4*2.8*7.2

FL Vertical Fluid Bed Granulator 160KGS Pharmaceutical Spray Granulating Machine 0

FL Vertical Fluid Bed Granulator 160KGS Pharmaceutical Spray Granulating Machine 1

FL Vertical Fluid Bed Granulator 160KGS Pharmaceutical Spray Granulating Machine 2



Certifications:



FL Vertical Fluid Bed Granulator 160KGS Pharmaceutical Spray Granulating Machine 3

FL Vertical Fluid Bed Granulator 160KGS Pharmaceutical Spray Granulating Machine 4

FAQ
1. Do you have any installation team for installing and debug in my country ?
Yes, we have almost 20 agent&customer from different countries, all of them able to supply after sale service.
2.Can your machine meet our need well?
We supply you a proposal as to your specific requst, each machine is customized to satisfy customer's need well.
3. Are you a factory or a trading company?
e are the manufacturer, and have been in industry for more than ten years.
4. What's your payment way?
T/T by our bank account directly, or by MadeinChina trade assurance service, or by the West Union, or in cash.
5. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
6. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Made in China trade assurance service or by LC.
7. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 20 years, and we can provide better after-sales service.
