Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | FL 5 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Film wrapping, wooden case. |
| Delivery Time: | 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SETS/ YEAR |
| Equipment Model: | FL-5 Fluid Bed Granulator | Making Product: | Milk Powder, Detergent Powder, Medicine Powder Etc. |
|---|---|---|---|
| Heat Source: | Steam, Electricity, Hot Oil, Coal, Gas Etc | Main Material: | SUS304, SUS316L, Other, Stainless Steel304/316L |
| Overall Size: | 1.2*0.7*2.1M Or Customized | Functions: | Spray Drying And Granulation |
| Standard: | GMP, ISO, CE | After Sales Warranty: | Supply Video, Online Technical Support, Spare Parts |
| High Light: | Automatic Fluid Bed Granulator,GMP Fluid Bed Granulator,SUS304 laboratory fluid bed dryer |
||
Machine Name:

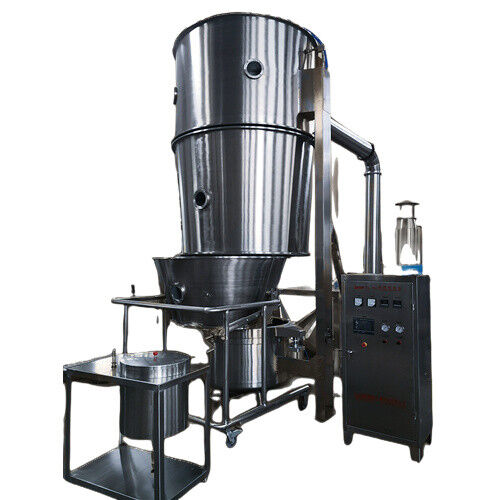

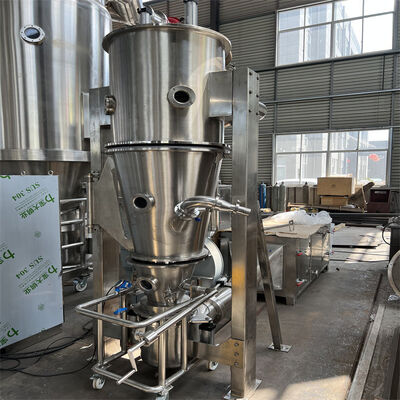

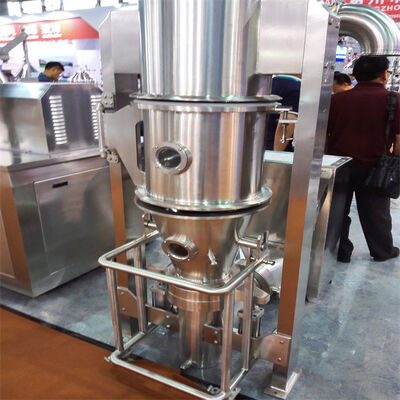

Lab Pharmaceutical Machinery Rapid Mixer Fluid Bed Dryer Granulator
Automatic GMP Designed Lab Pharmaceutical Machinery Rapid Mixer Fluid Bed Dryer Granulator
Machine Introduction
The machine is mainly used for the operations of mixing, granulating, drying and coating of granule “Top Spraying”, etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
Mixing-granulating-drying in one-step.
Adopting double chamber filtering bags system, removing dust completely.
Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.
Can choose 2 bar explosion-proof design.
Designed, manufactured and laid out by GMP.
Function feature and the principle of action
This machine is suitable for drying for powder and granules.
The principle of action is based on: Put the raw material into the fluid bed. The cold air is drawn into the fluid bed through the pre filters and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater. The material is fluidized in the fluid bed regularly. The evaporating moisture is drawn out by the fan.
Technical Data
| Capacity (Kg /batch) | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | 800-1000 |
| Scope of application for liquid(g/cm3) | <1.3 |
By client
|
|||||||
| Material yield rate (%) | ≥99 | ||||||||
| Qualified rate of end products (%) | ≥85 | ||||||||
| Container volume (L) | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 | |
| Diameter r(mm) | 500 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| Power of fan (Kw) | 3 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| Power of supply liquid motor (Kw) | 0.37 | ||||||||
| Pressure of steam (Mpa) | 0.4-0.6 | ||||||||
| Consumption of steam (Kg/h) | 18 | 35 | 60 | 120 | 140 | 180 | 310 | 400 | |
| Pressure of compressed air (Mpa) | 0.4-0.6 | ||||||||
| Working temperature (℃) | Normal temperature -120℃ could adjust | ||||||||
| Overall dimension of machine (L×W×H) | refer to installation drawing or customer’s room | ||||||||
ADVANTAGES:
1). All parts of contacted with raw materials are made up by stainless steel.
2). Seated using silastic gas-filled sealing ring.
3). Able to control granular size by means of two-flow spraying gun.
4). Able to finish mixture, granulation and drying in the same sealed container thanks to rapid & high effective operation, thus preventing powder from fly up, leakage and pollution.
5). The upper top and lower bottom of the machine are all butterfly seal joints which are beautiful in shape, small in air resistance, clean, easy to be washed, have no dead comer and are in conformity with requirements of GMP.
|
Material
|
Stainless Steel
|
|
Customized
|
Accept
|
|
Service
|
OEM and OEM
|
|
Package
|
Standard wooden packing for sea shipping
|
