Specializing in the production of pharmaceutical machinery and granulating drying equipment.

|
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | GHL 800 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film Wrapping, Wooden Box |
| Delivery Time: | WITHIN 50 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SET/ YEAR |
| Type: | Pelletizing Wet Granules Mixing Granulation | Capacity: | 1 - 500 Kgs/Batch |
|---|---|---|---|
| Granulation Speed: | 50-3000rpm | Cutting Speed: | 0-2900 R/Min |
| Compressed Air: | 0.4-0.6 MPa | Core Components: | Engine, Motor, Gear |
| Key Selling Points: | High Productivity | Warranty Of Core Components: | 5 Years |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverages Plant | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| High Light: | 3000rpm GHL High Speed Mixer Granulator,3000rpm Gear High Speed Mixer Granulator,3000rpm pharmaceutical rapid mixer granulators |
||

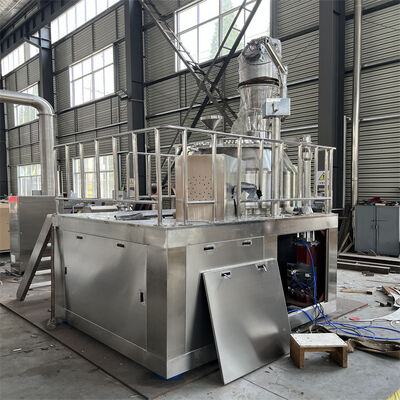

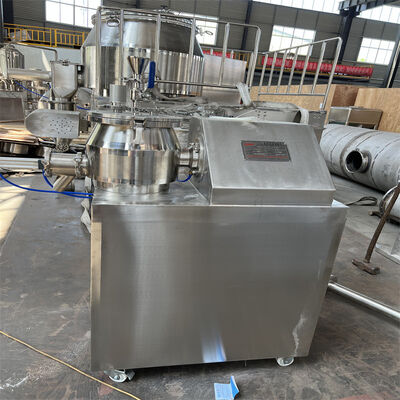

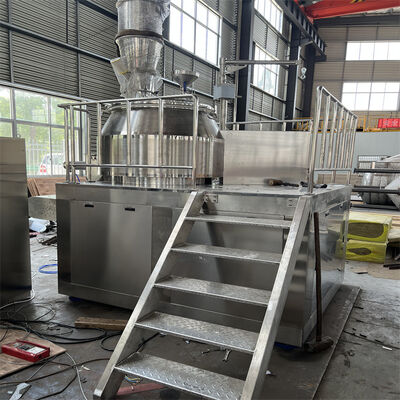

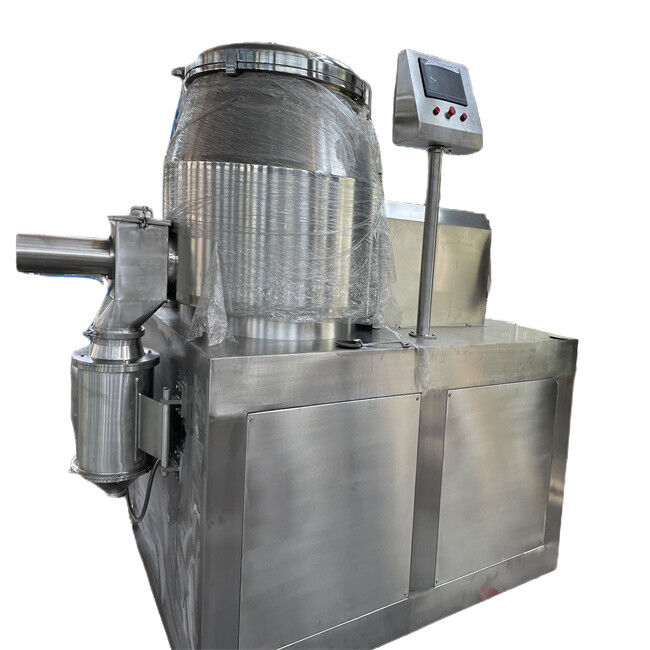

GHL Type Granulators Wet Mixer GHL Rapid Mixing Granulation Machine
These machines are suitable for crushing thermal sensitive material and granulating for damp material. It is less the heat and the powder dust. The sieve of stator is made of stainless steel plate. It is not easy to damage. The gap between crushing blade and sieve can be adjusted. Can treat material that is adhesive or in gum or heat or damp state.
1)It is the structure of horizontal cylinder (cone).
2) Full sealed driving shaft, to use water when cleaning.
3)Fluidization granulation, the finished granules are similar to roundness with good liquidity.
4)Compared with traditional process, it can reduce 25% binder and the dry time can be shortened.
5)Each batch of materials will be dry-mixed for 2 minutes and be granulated for 1-4 minutes. Compared with traditional process, it has improved by 4-5 times.
6)All the processes of dry-mixing & wet-mixing & granulating are finished in a closed vessel. So that it has reduced the process and also compiles with GMP standard.
7)Whole operation has the strict safety precautions.
Technical parameters
|
Main Technical Data:
|
|
|
|
Motor Power
|
Kw
|
4.5
|
|
Capacity
|
Kg/h
|
150~300
|
|
Mesh Hole Diamater
|
Mm
|
3×3－8×8(Choose one)
|
|
Rotating Speed
|
rpm
|
0-1600(Inverter Adjusting)
|
|
Cutting Knife Speed
|
rpm
|
200~1600
|
Our Company
- Since year 2007, SNYNXN CHINA had started manufacturing Pharmaceutical machines such as Drying Machine, Granulating Machine, Crushing Machine, Mixing Machine and Evaporating equipment.Contact Person: Salin Chen
Tel: +86-13961601352
