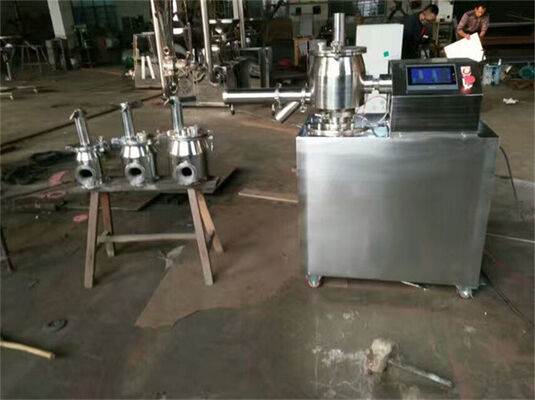

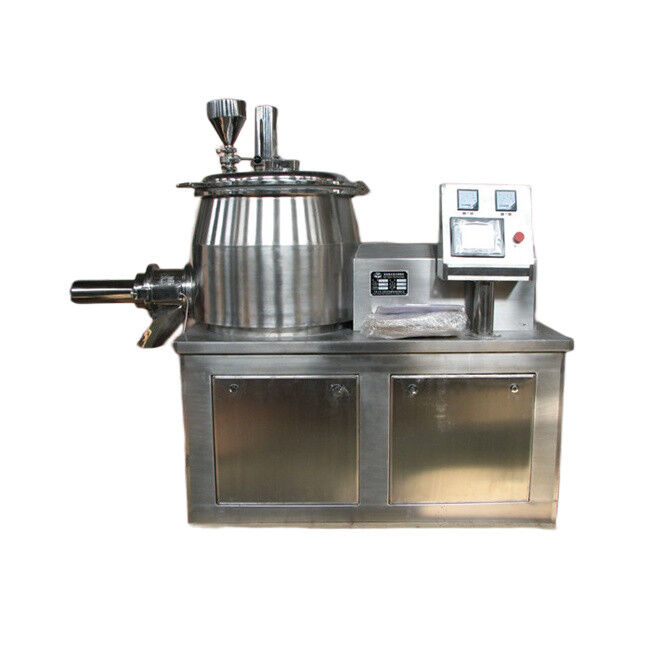

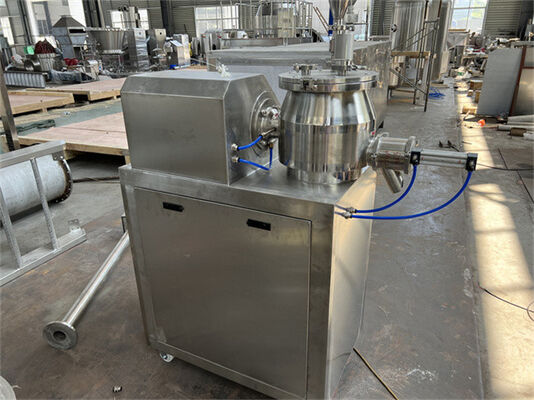

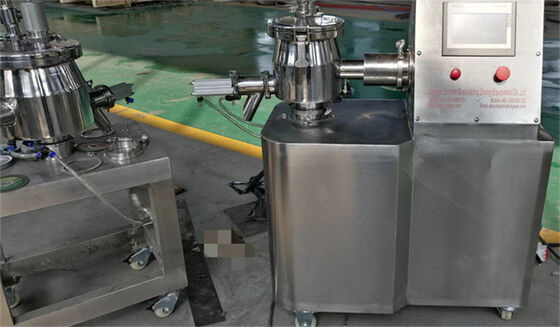

GHL Pharamaceutical Wet Type Powder High Speed Mixer Granulator Rapid Mixture

Name: GHL Pharamaceutical Wet Type Powder High Speed Mixer Granulator Rapid Mixture
Brand: SNYNXN
SKU: GHL 200
Rating: 5 (186 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	GHL 200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Film Wrapping, Wooden Box
Delivery Time:	WITHIN 50 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 SET/ YEAR

Contact Now

Detailed Product Description

Product Type:	Pharmaceutical Granulator	Working Volume:	60-150L
Place Of Origin:	Jiangsu, China	Output (kgs/Batch):	1 - 500
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Food & Beverages Plant	Video Outgoing-inspection:	Provided
Key Selling Points:	Rapid, Automatic, Large	Voltage:	220V/380V/415V/600V
Warranty:	1 Year, 12 Months	Showroom Location:	Mexico, Russia, Bangladesh
High Light:	GHL Pharamaceutical High Speed Mixer Granulator , High Speed Mixer Granulator GMP , Automatic rapid mixture granulator

Name: Pharamaceutical Rapid Powder Mixer Granulator

GHL Pharamaceutical High Speed Wet Type Powder Mixing Granulator

Description:

Main Application:GHL high speed mixing granulator is a high efficiency equipment that can mix different powder materials and granulate granule in one procedure. It is widely used for pharmaceutical industry, foodstuff industry and chemical industry, etc..

Working principle:The powder material and adhesive are mixed fully at the bottom to become humid soft material, the nit is cut through high speed crusher and become uniform granules.

Features:

1, The machine adapts horizontal cylinder structure. Its structures is reasonable;

2, Use air filled seal shaft to drive. When washing, it can be changed to water;

3, Use fluidization to Granulate and the granule is like ball. lts flowability is good;

4, Compared with the traditional process,25%) of adhesive can be reduced and the drying time can be shorted;

5, The time of mixing in dry is 2 minutes and the time of granulating is 1-4 minutes. Compared with the traditional process, 4-5 times of efficiency is raised;

6, In the same sealed container, dry mixing, humidity mixing and granulating can be finished, it is in conformity with the requirements of GMP;

7, The whole operation has strict safe and protective measures.

8, The mixing and cutting speed are controlled through frequency change, so the granules are more even.

Main Technical Data

parameter type	GHL-5	GHL-10	GHL-20	GHL-30	GHL-50	GHL-100	GHL-200	GHL-250	GHL-300	GHL-400	GHL-600	GHL-800	GhL-1000	G-L-1200	GHL-1500
Capacity (L)	5	10	20	30	50	100	200	250	300	400	600	800	1000	1200	1500
Production capacity (kg/)	1	3	6	10	15	30	60	80	120	150	200	250	300	400	500
Stirring power(kw)	1.1	1.5	2.2	3	5.5	7.5	11	11	15	22	30	37	45	45	55
Mixing time(min>	0-7
Stirring speed(r/min)	0-400			0-300			0-200			0-150			0-110
Cutting power(kw)	0.55	0.75	1.1	1.5	2.2	3	5.5	5.5	7.5	11	15	18.5	22	22	30
Cutting time(min)	0-5
Cutting speed(r/min)	0-2900
Compressed air pressure(Mpa)	0.4-0.6
Amount of compressed air(m3/min)	0.3			0.6		0.9			1.1		1.5			1.8
