Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | GHL 50 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film Wrapping, Wooden Box |
| Delivery Time: | WITHIN 50 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SET/ YEAR |

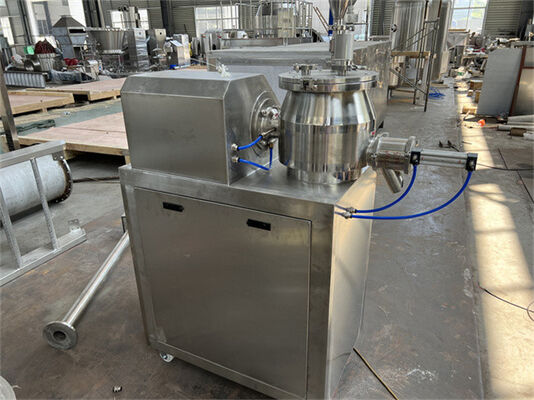

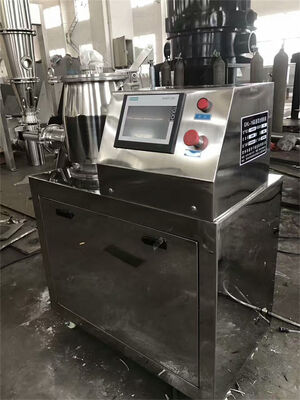

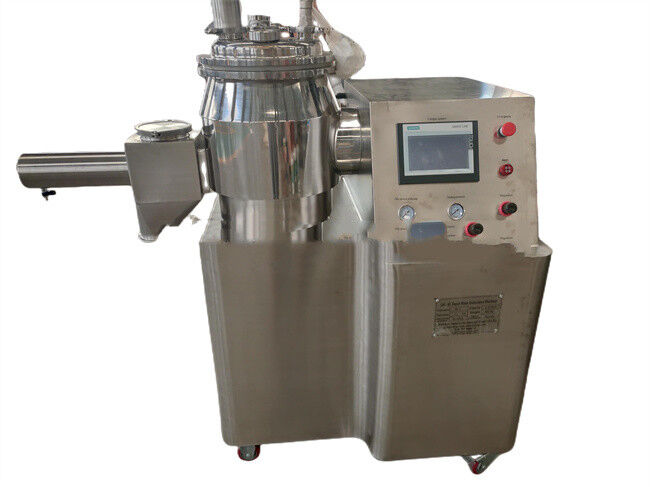

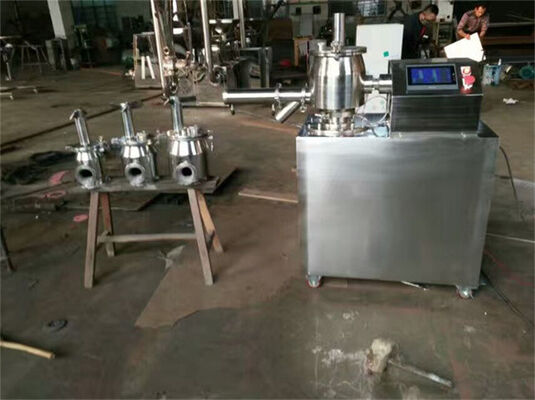

| Machine Name: | High Speed Mixing Granulator | Product Type: | Pharmaceutical Granulator |
|---|---|---|---|
| Volume: | Depending On Model (5-1500L) | Output (kgs/Batch): | 1 - 500 |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverages Plant | Mixing Power: | 1.1-55Kw |
| Voltage: | 220V/380V/415V/600V | Warranty: | 1 Year, 12 Months |
| Material: | SS304 Or SS316 Is Optional | Showroom Location: | Mexico, Russia, Bangladesh |
| High Light: | Pharmaceutical rapid mixer granulation,55Kw rapid mixer granulation,SS304 high shear granulator |
||
1.The machine adopts horizontal barrel(cone) structure. Its structure is reasonable.
2. The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
3. Short granulating time, high eficiency and energy saving
4. The character of granule is uniform and the luidization of granule is good. It provides ideal granule material to tablet pressing procedure.
5. Compared with traditional process, it can reduce 25% of binder and shorten drying time too.
6. Each batch needs: 2 minutes to dry mixing and 1~4 minutes to granulating. Compared with traditional process, its eficiency can raise 4~5 times.
7. Whole operation has strict safe protective measures.
8. It can mix uniformly even when the gravity difference between main material and excipient is very big,without the phenomenon of delamination.
Working Principles:
The powder raw material and adhesive in a cylinder are mixed fully at the bottom to turn into a humid soft material.Then it is crushed at a high speed and become uniform granules.
Technical parameters:
| Specification Item | 7/2.5 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 |
| Capacity (Kg /batch) | 0.3-1 | 3 | 15 | 35 | 50 | 60 | 80 | 100 | 135 | 200 |
| Granules size (Mesh) | 20-80 | |||||||||
| Working time (min) | 5-7 | |||||||||
| Container volume (L) | 7/2.5 | 10 | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 600 |
| Mixing power (Kw) | 0.75 | 2.2 | 4/5.5 | 6.5/8 | 6.5/8 | 11/14 | 11/14 | 13/16 | 18.5/22 | 22/28 |
| Cutting power (Kw) | 0.75 | 1.1 | 1.3/1.8 | 2.4/3 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
| Mixing speed (r/min) | 30-1000 | 30-600 | 200/400 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Cutting speed (r/min) | 300-3000 | 1500/3000 | ||||||||
| Pressure of compressed air (Mpa) | 0.3-0.6 | |||||||||
| Consumption of compressed air (m3/min) | None | 0.1 | 0.11 | 0.13 | 0.2 | 0.25 | 0.25 | 0.3 | 0.4 | 0.4 |
| Weight (Kg) | 150 | 300 | 400 | 800 | 900 | 1200 | 1500 | 1550 | 1650 | 1800 |
| Overall dimension of machine (L×W×H) | 800× 450× 900 | 1250× 550× 1160 | 1730× 750× 1610 | 1950× 750× 1810 | 1950× 750× 1810 | 2210× 880× 2000 | 2210× 880× 2000 | 2310× 1050× 2000 | 2485× 1080× 2050 | 2585× 1400× 2100 |
