Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | 50B |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 30 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Type: | Multi-functional Pulverizer | Capacity: | 20-1000 Kg/h |
|---|---|---|---|
| Fineness Diameter: | 40 -120 MESH | Applicable Industries: | Farms, Energy & Mining, Pharmacy |
| Usage: | Fine Powder Making | Voltage: | 220/380/415V |
| Core Components: | Bearing, Motor, Engine | Warranty: | 1 Year, 2 Years Of Core Components |
| Construction Material: | Stainless Steel 304/316 | After Warranty Service: | Video Technical Support, Online Support |
| High Light: | 1500kg/h powdered sugar grinder,415V powdered sugar grinder,380V sugar milling machine |
||

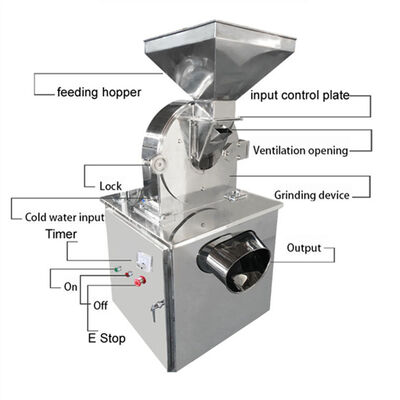

This machine utilizes the relatively high-speed operation between the movable chain disc and the fixed one, so that the materials are crushed by the impact of the gear plate, the friction and collision of the materials with each other.
Crushed material can be discharged directly from the grinding chamber through the discharge port, normally collected by a long cotton bag.
The crushed size is up to change of different mesh sieves.
The structure of the machine is simple and sturdy, operation is stable, grinding the material quickly and evenly, the effect is good.
The machine is made of food grade stainless steel.
All the slots in the housing (crushing trough) are machined by precision machining so as to achieve smooth surface and easy cleaning.
It changes the rough, easy-to-accumulate and difficult-to-clean phenomenon of ordinary crusher's inner wall.
Technical Parameters
| Model | 20B | 30B | 40B | 50B | 60B | 80B |
| Capacity (kg/h) |
60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 | 400-2000 |
|
Shaft speed (r/min) |
4500 | 3800 | 3400 | 3200 | 2800 | 2000 |
| Fineness size (mesh) | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 |
| Motor power(kW) | 4 | 5.5 | 7.5 | 11 | 15 | 22 |
| Weight (kg) |
180 | 260 | 360 | 450 | 550 | 850 |
|
Dimension (without dust collector) (mm) |
550*600*1250 | 600*700*1450 | 750*800*1550 | 800*850*1600 | 1000*900*1680 | 1100*950*1960 |
|
Dimension (with dust collector) (mm) |
1100*600*1650 | 1200*700*1650 | 1350*800*1700 | 1450*850*1750 | 1550*1000*1750 |
1700*1000*2000 |
Trade Fair Exhibitions:
We will attend several ten trade fairs domestic and overseas in one year normally,
like Canton Fair, FIC, CPHI, CIPM, ANUGA FOOD TEC., COLOGNE PROSWEETS ETC.
We expect to meet with you!
