Dry Tea Industrial Pulverizer Machine Spices Powder Leaf Crushing Machine 415V

Dry Tea Industrial Pulverizer Machine Spices Powder Leaf Crushing Machine 415V

  • Dry Tea Industrial Pulverizer Machine Spices Powder Leaf Crushing Machine 415V
  • Dry Tea Industrial Pulverizer Machine Spices Powder Leaf Crushing Machine 415V
  • Dry Tea Industrial Pulverizer Machine Spices Powder Leaf Crushing Machine 415V
  • Dry Tea Industrial Pulverizer Machine Spices Powder Leaf Crushing Machine 415V
Dry Tea Industrial Pulverizer Machine Spices Powder Leaf Crushing Machine 415V
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: 40B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packing in Wooden case
Delivery Time: IN 30 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 sets / year
Contact Now
Detailed Product Description
Features: Simple Operation, Cost Effective, Rapid Porduction Type: Super Fine Grinder
Capacity: 20-1000 Kg/h Size Of Raw Material To Be Fed: <10mm
Size Of Product: 40 -120 Meshes Usage: Fine Powder Making
Voltage: 220/380/415V Warranty: 1 Year, 2 Years Of Core Components
Construction Material: Stainless Steel 304/316 Explosion Proof: Optional
High Light:

high speed Industrial Pulverizer Machine

,

Dry Tea Industrial Pulverizer Machine ODM

,

leaf crushing machine 415V

Product Description:Industrial Multi-Functional Pulverizer

Industrial Spices Powder Grinder Leaf Crushing Machine Dry Tea Pulverizer Crusher For Sale Multi-Functional Pulverizer

this machine is suitable for pharmaceuticals, chemical, food and other industries, it is the supporting equipment for theprevious process of micro-grinding processing. In order to meet the needs of customers for grinding at slightly lower than normal temperature, a water-cooled jacket can be installed according to customer requirements.

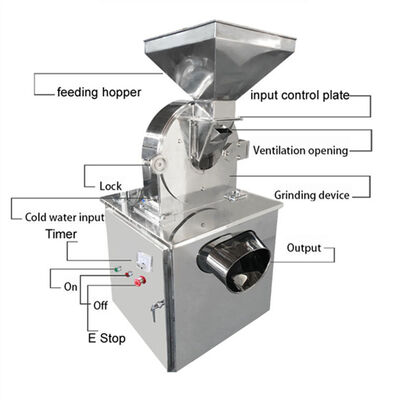

This machine utilizes the high--speed relative motion between the moving and regular tooth set, which makes the material crushed through concussion, rub and crush between the materials. The structure of machine is simple, firm and operating steadily and the result of crushing is well, no dust nuisance. The crushed material is discharged directly from mainframe. The different sizes of the granule are gained through replacing different pore sizes of sieve. In addition, this machine is made of the whole stainless steel, surface of the inside of the machine is smooth, which changes the phenomenon of inboard wall coarse and accumulating of powder in the past. It meets national standard even more to make medicines, food, chemical industry, etc.

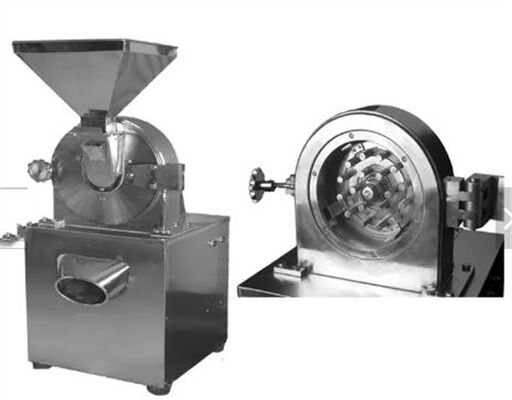

The machine uses the relative movement between the active and fixed fluted disc to impact, grind and crush the target materials.
The crushed material is discharged directly from the grinding chamber of the main frame.
Those pharmaceutical, chemical and food stuff products from the machine are in accordance with national requirement, achieving GMP



Technical Parameters

Model 20B 30B 40B 50B 60B 80B
Capacity
(kg/h)
60-150 100-300 160-800 200-1000 300-1500 400-2000

Shaft speed

(r/min)

4500 3800 3400 3200 2800 2000
Fineness size (mesh) 2-120 2-120 2-120 2-120 2-120 2-120
Motor power(kW) 4 5.5 7.5 11 15 22
Weight
(kg)
180 260 360 450 550 850

Dimension

(without dust collector)

(mm)

550*600*1250 600*700*1450 750*800*1550 800*850*1600 1000*900*1680 1100*950*1960

Dimension

(with dust collector)

(mm)

1100*600*1650 1200*700*1650 1350*800*1700 1450*850*1750 1550*1000*1750

1700*1000*2000
