Specializing in the production of pharmaceutical machinery and granulating drying equipment.

|
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | CT-7 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 30 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Features: | Easy To Operate, Long Term Sustainable | Type: | Hot Air Circulating Drying Oven |
|---|---|---|---|
| Application: | Chemicals Processing, Medicine Processing, Plastics Processing, Food Processing, Product Drying | Capacity: | 100-2000 Kg/batch |
| Heating Source: | Steam+electricity | Range Of Temperature: | 20-160 (adjustable) |
| Power: | 0.5kw-65kw | Voltage: | 380v Or 220v Or As Consumer Request |
| Construction Material: | Stainless Steel 304 / SUS316L | After-sales Service Provided: | Online Support, Field Maintenance And Repair Service, Free Spare Parts, Video Technical Support |
| High Light: | 100kg/batch Hot Air Drying Oven,2000kg/batch Hot Air Drying Oven,Fruit Mango food drying oven |
||

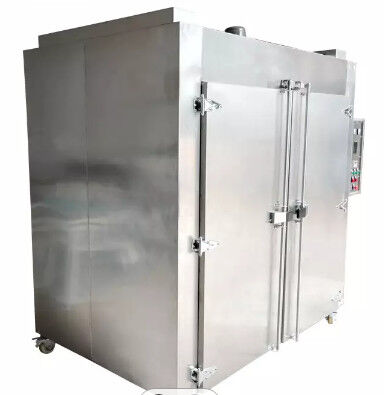

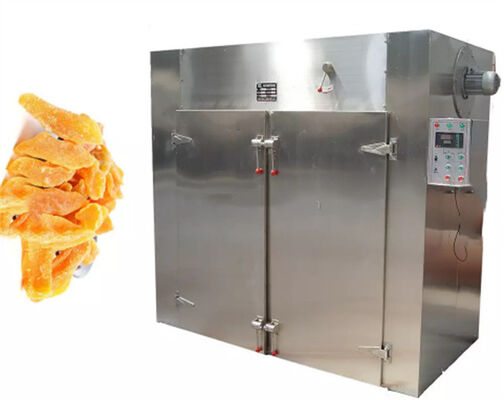

High Thermal Efficiency Food Hot Air Drying Oven Fruit Mango Drying Machine
The hot air circulating drying oven is widely applied for the heating and dehumidifying of raw materials and products in the lines of pharmacy, chemical, foodstuff industry etc.
Specialty:

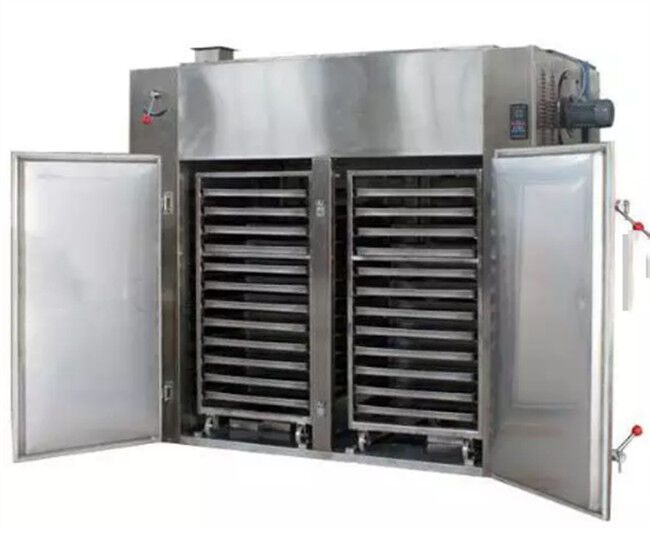

Great part of hot wind is circulated in the oven with high thermal efficiency, less energy consumption.The oven is equipped by the adjustable air-distributing plates to utilize the forced ventilating to dry the target materials evenly. The hot air circulating drying oven runs in stable condition, low noise, self-control temperature, easy installing and maintaining, and wide application.
1) The inner wall of dryer is fully welded by stainless steel, and outer wall also adopts stainless steel 304.
2) The tray is made of stainless steel 304, which is good for drying food.
1) The heating sources are optional, you can use steam or electricity.
2) Hot air circulation drying system, which can dry food faster.
3) Temperature control which can set different hot air temperature according to different food.
Technical Parameter
| No. | Model | Field standard model | Evaporate d area (m3) |
Effective volume (m3) |
Drying capacity (kg/batch) |
radiator area(m3) |
Steam consumption on(kg/h) | Electrical Heater power(kw) |
Fan volume (m3/h) | Fan power (kw) |
| 1 | CT-C-O | RXH-7-C | 7.1 | 1.3 | 60 | 15 | 15 | 6-9 | 4510 | 0.45 |
| 2 | CT-C-I | R×H-14-C | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 4510 | 0.45 |
| 3 | CT-C-II | R×H-27-C | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45×2 |
| 4 | CT-C-IIA | R×H-27-C | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 9020 | 0.45×2 |
| 5 | CT-C-III | R×H-41-C | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 |
| 6 | CT-C-IIIA | R×H-41-C | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 13530 | 0.45×3 |
| 7 | CT-C-IV | R×H-54-C | 56.5 | 10.3 | 480 | 96 | 80 | 60 | 18040 | 0.45×4 |
| 8 | CT-I | R×H-14-B | 14.1 | 2.6 | 120 | 23 | 20 | 15 | 1414 | 1.1 |
| 9 | CT-II | R×H-27-B | 28.3 | 4.9 | 240 | 48 | 40 | 30 | 5230 | 1.1 |
| 10 | CT-III | R×H-41-B | 42.4 | 7.4 | 360 | 72 | 60 | 45 | 9800 | 2.2 |
| 11 | CT-IV | R×H-54-B | 56.5 | 10.3 | 480 | 96 | 80 | 60 | 9800 | 2.2 |
Showcase:
SNYNXN has found nearly 15 years, who designs and manufactures overall Powder processing solutions for the Chemical, Pharmaceutical, Food, Mineral, Cosmetic and Plastic industries, like powder Drying, grinding machines, mixing machines,..etc.
SNYNXN is constantly committed to develop new advanced techniques and methods on the machines, since our goal is to be your trusted manufacture of creative and value added process solutions.
