Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | FLP 90 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 60 DAYS |
| Payment Terms: | T/T, L/C |
| Type: | Multi-functional Fluid Bed Coating Machine | Container Diameter: | 700 - 1500 MM |
|---|---|---|---|
| Capacity: | 2.5-120 KGS/BATCH | Heating Method: | Electrical,oil,coal,steam |
| Steam Consumption: | 0.9-1.6 M3 (depend On Model) | Key Words: | Granulator/Coating Machine/Granules And Pellet Coating Machine |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Construction Material: | 304/316, According To Customer's Requirements | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| High Light: | electrical fluidized bed granulator,Multifunctional fluidized bed granulator,SS3004 Pellet Coating Machine |
||

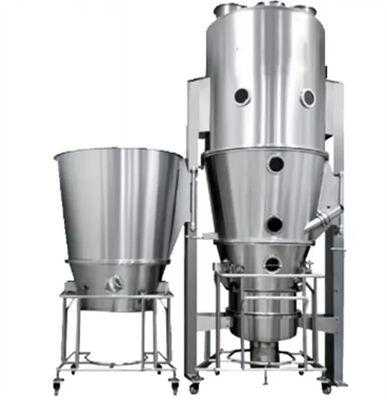

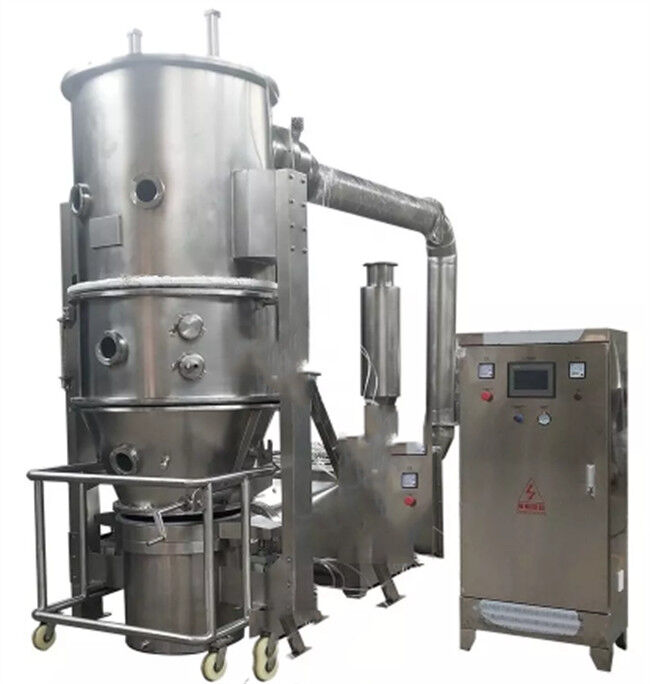

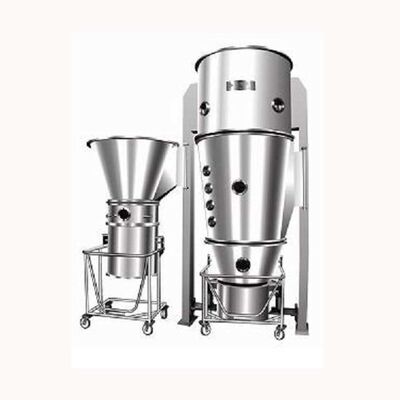

The Coating Granulator Machine is a multifunctional fluid bed granulator integrating various functions such as top spray, bottom spray and side spray. It has various functions such as mixing, drying, granulating, coating and pelletizing. It is widely used in such industries as pharmaceutical, food, chemical industry, etc.
Work principle

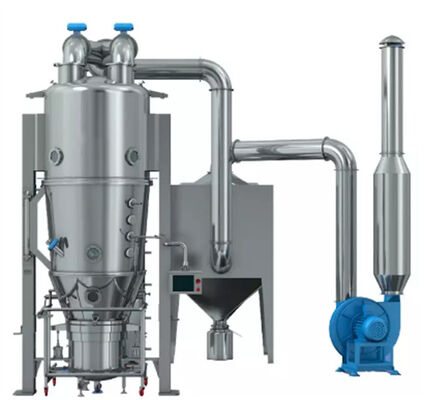

Coating Granulator is composed of air inlet system, fluid bed system, top spray system, bottom spray system, side spray system and exhaust and dust filter system. The top spray provides the granulating function, the bottom spray provides the pellet coating function and the side spray provides the pelletizing function. The above functions are realized in one multifunctional fluid bed granulator. Users can select the optional functions according to actual process requirements.
Technical Data:
| Item | Model (FLP) Specifications | |||||||||
| Name | Unit | 10 | 15 | 20 | 30 | 45 | 60 | 90 | 120 | |
| Diameter | mm | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1400 | 1500 | |
| Productive Capacity | Kg/batch | 2.5-10 | 3-15 | 5-20 | 7.5-30 | 10-45 | 15-60 | 20-90 | 30-120 | |
| Power of Fan | kw | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 | |
| Steam | Pressure | Mpa | 0.4-0.6 | |||||||
| Consumption | Kg/h | 35 | 42 | 47 | 60 | 140 | 160 | 180 | 240 | |
| Compressed Air | Pressure | Mpa | 0.6 | |||||||
| Consumption | M3/min | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | |
| Noise | DB | No more than 75db of fan | ||||||||
Q: How does the machine fit our voltage?
A: For each piece of equipment, our salesman will confirm the voltage with the customer.
Q: How can I buy the machine?
A: Firstly, our salesman will discuss with you all the details of the machine, the lead time and the payment condition.
Secondly, after receiving the 30% down payment, the production will begin.
Finally, we’ll show you the photos and the test video of the finished machine. You pay the balance and the equipment will be shipped as scheduled, by our forwarder or by your familiar forwarder.
Q: How long is your machine’s warranty?
A:1 year after the delivery. During the one year, we can offer the broken parts free of charge, if the problem isn’t caused by wrong operation.
Q. What can you provide for after-sale service?
A: We can send the engineer to the customer’s factory for the installation and operation training if the customer requires it. We can also supply the installation and operation instructions by video.
Q: If we have a very special request on the production line, could you help me to do the design?
A: Customized design is provided.
Contact Person: Salin Chen
Tel: +86-13961601352
