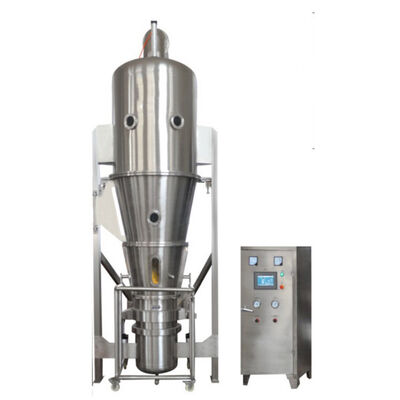

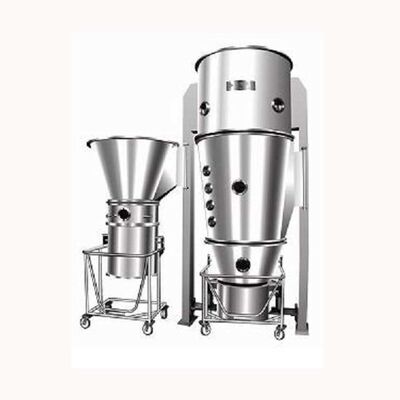

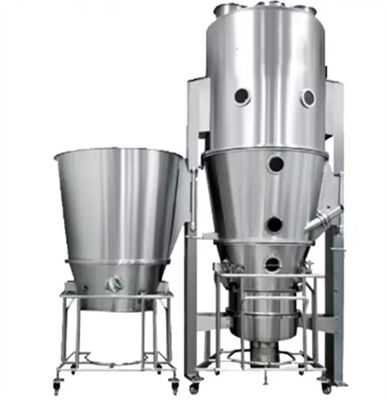

FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine

FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine

  • FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine
  • FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine
  • FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine
  • FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine
FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: FLP 60
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Standard Export Packing in Wooden case
Delivery Time: IN 50 DAYS
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Type: One-Step Fluid Bed Granulator Coating Machine Key Words: Mixer Dryer Granulating Coating One-step Fluid Bed Gran
Container Diameter: 700 - 1500 MM Capacity: 2.5-120 KGS/BATCH
Working Temperature: RMT- 120 C Steam Consumption: 0.9-1.6 M3 (depend On Model)
Key Selling Points: Easy To Operate Power Of Electric Heater: Depends On Client's Requirement
Construction Material: 304/316, According To Customer's Requirements Warranty: 1 Year, 2 Years Of Core Components
High Light:

FLP 60 fluid bed granulator

,

One Step fluid bed granulator

,

GMP granulate dryer

Description of Multifunctional Fluid Bed Dryer Granulator Coating Machine

FLP-60 Mixer Dryer Granulating Coating One-Step Fluid Bed Granulator Machine


Material suspends and forms fluidized state under the action of the undefiled hot air flow (negative pressure), its surface is in full contact with the heated air, and the material is evenly heated and reaches ideal state for hot swapping thus to have a high efficiency.



Product Application
1)Use screw to extrude and vibrate granule and granulate granule using the methods of humidity, high speed and mixing;
2)Suitable for drying humidity block or powder raw material in the fields such as pharmaceutical, foodstuff, feedstuff, chemical industries etc.
3)The raw material is large in granule and small in block and having adhesive property.
4)Suitable for raw materials, its volume will be changed when dry, such as giantarum, polyacrylamide, etc.



Configured with proper spraying system and through further structural improvement, fluid bed becomes multi-purpose technological equipment in combined functions of drying, granulating, solution coating, and power dressing.



This model is equipped with one or more among top spray, bottom spray and side spray systems integrately, which are mostly used in the applications of granulating, drying, pelletizing and coating granules in the pharmaceutical, food, chemical industries.

FLP granulator/pelletor/coater is a multi-function equipment integrated spray drying-granulating- centrifugal spray coating-fluid coating- drying in one body. The machine is compatible various process operations. Particularly it is suitable for granulating,pelleting and coating in medicine, food and chemical industries

Features:
1) The structure of fluidization bed is of round so as to avoid dead corner.
2) Inside the hopper there is a stir in order to avoid lomeration of raw material and forming canal of flow.
3) The granule is discharged through the method of turning over.It is very convenient and full. The discharged system can be designed as request too.
4) It is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient for cleaning. It is an ideal equipment that is in conformity with the requirements of GMP.
5) The drying speed is fast and the temperature is uniform.In general the drying time is 20~30 minutes.



Technical Data

Item Model (FLP) Specifications
Name Unit 10 15 20 30 45 60 90 120
Diameter mm 700 800 900 1000 1100 1200 1400 1500
Productive Capacity Kg/batch 2.5-10 3-15 5-20 7.5-30 10-45 15-60 20-90 30-120
Power of Fan kw 5.5 7.5 7.5 7.5 11 11 15 18.5
Steam Pressure Mpa 0.4-0.6
  Consumption Kg/h 35 42 47 60 140 160 180 240
Compressed Air Pressure Mpa 0.6
  Consumption M3/min 0.6 0.6 0.6 0.9 0.9 1.1 1.3 1.5
Noise DB No more than 75db of fan
FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine 0
FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine 1

Our Ceritifications:
FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine 2
FLP 60 Granulate Mixer Dryer Coating One Step Fluid Bed Granulator Machine 3
SNYNXN is a high-tech enterprise mainly engaged in the research, development, production and sales of Pharmaceutical Machines. The main products are Fluid Bed series, drying and granulating machine etc., which are mainly used in the fields of pharmaceutical, food, health care products and feed.
SNYNXN owns certificates of GMP, CE, SGS, ISO9001, AAA etc. With good quality and professional aftersales service, we enjoy high reputation among our customers over 120 countries and regions around the world.
