Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | SGS CE ISO GMP AAA |
| Model Number: | FL 60 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Film wrapping, wooden case. |
| Delivery Time: | 40 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SETS/ YEAR |
| Type: | Fluidized Bed Dryer Machine For Making Dry Medicine Granule | Application: | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing Line |
|---|---|---|---|
| Function: | One Step Mixing Drying And Granulation | Evaporation Capacity(kg/h): | Depends On Different Model |
| Container Volume: | 220 L | Output Capacity: | 3-500 KG Depend On Model |
| Fan Power: | 3-45 KW | Core Components: | Bearing, Gear, Motor, Gearbox, Other, PLC |
| Warranty: | 1 Year, 2 Years Of Core Components | After Sales Warranty: | Supply Video, Online Technical Support, Spare Parts |
| High Light: | 220L Fluid Bed Granulator,300KG Fluid Bed Granulator,500KG lab scale granulator |
||
Description of Fluidized Bed Dryer Machine For Making Dry Medicine Granule

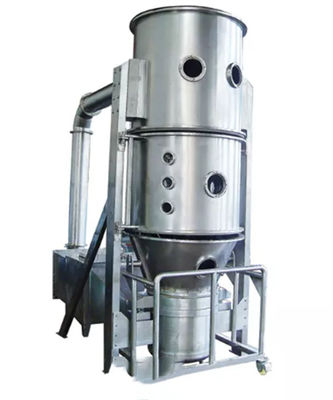

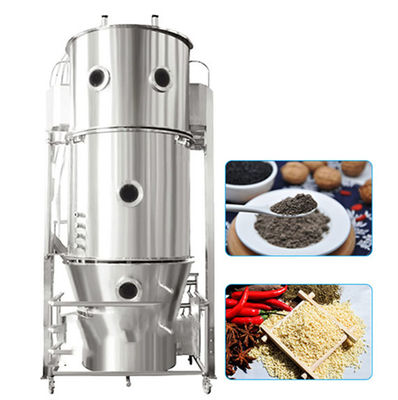

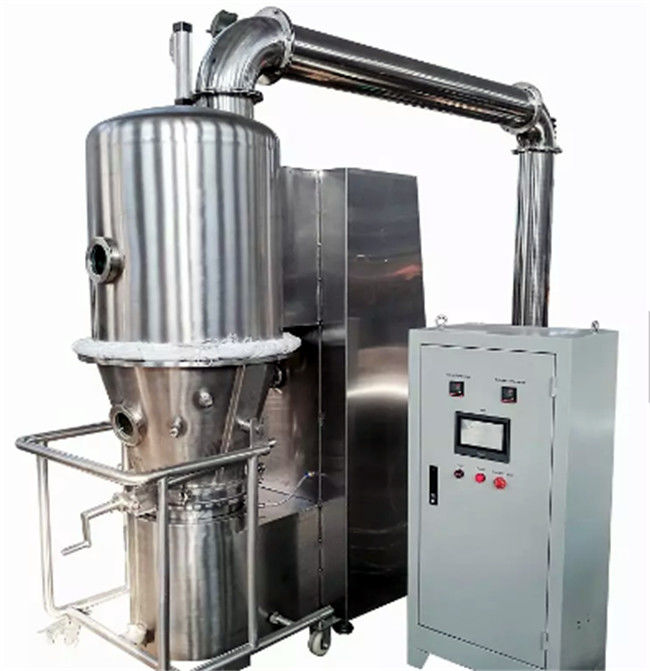

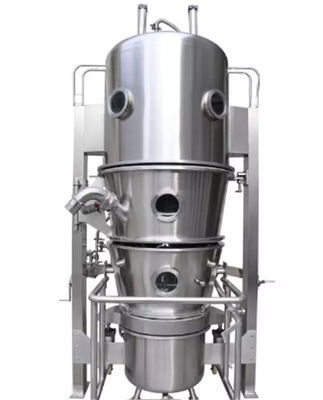

FL Series GMP Pharmacy Fluidized Bed Dryer Machine For Making Dry Medicine Granule
The powder granule in fluid bed appears in the state of fluidization.
It is preheated and mixed with clean and heated air.
At the same time the solution of adhesive is sprayed into the container.
It makes the particles become granulating that contains adhesive.
Being of unceasing dry through hot air, the moisture in the granulating is evaporated.
The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Technical Parameters:
|
Model-FL
|
5
|
30
|
60
|
120
|
200
|
300
|
500
|
|
Capacity(Kg/Batch)
|
5
|
30
|
60
|
120
|
200
|
300
|
500
|
|
Material yield Rate(%)
|
>/=99%
|
||||||
|
Qualified Rate (%)
|
</=85%
|
||||||
|
Container Volume(L)
|
22
|
100
|
220
|
420
|
670
|
1000
|
1500
|
|
Diameter(mm)
|
500
|
700
|
1000
|
1200
|
1400
|
1600
|
1800
|
|
Power of Fan(Kw)
|
3
|
7.5
|
11
|
18.5
|
22
|
30
|
45
|
|
Liquid Feed Power(Kw)
|
0.37
|
||||||
|
Pressure of Steam(MPa)
|
0.4~0.6
|
||||||
|
Consumption Steam(Kg/h)
|
18
|
60
|
120
|
140
|
180
|
310
|
400
|
|
Compress Air Pressure( MPa)
|
0.4~0.6
|
||||||
|
Consumption of Air(m3/min)
|
0.3
|
0.9
|
0.9
|
0.9
|
1.1
|
1.1
|
1.5
|
|
Working Temperature C
|
Room temperature~120C adjustable
|
||||||
|
Noisy(dB)
|
Installed separated with fan </=75
|
||||||
Pre-service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
Sale service
1. Ensure product with high quality and pre-commissioning before delivery; provide each manufacturing step photo for customer checking on time.
2.Testing the machine and making video for customer’s checking.
3. Delivery on time;
4.Provide full sets of documents as customer’s requirements.
After-sale service
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
