Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series

Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series

  • Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series
  • Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series
  • Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series
  • Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series
  • Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series
  • Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series
Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: SGS CE ISO GMP AAA
Model Number: FL 5
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: NEGOTIABLE
Packaging Details: Film wrapping, wooden case.
Delivery Time: 40 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 SETS/ YEAR
Contact Now
Detailed Product Description
Type: Fluid Bed Dryer And Granulating Machine Application: Medicine Processing, Chemicals Production Line
Functions: Mixing Drying And Granulation Output: 1.5-1200 Kgs/batch Depends On Different Model
Drying Container: 12-2500L Keyword: Fluidized Bed, Drying Tower, Chemical Drying Equipment
Fan Power: 3-45 KW Core Components: Bearing, Gear, Motor, Gearbox, Other, PLC
Warranty: 1 Year, 2 Years Of Core Components After Sales Warranty: Online Technical Support, Spare Parts, On Filed Training
High Light:

FL Series Drying Granulation Machine

,

Vertical Fluid Bed Dryer Granulation Machine

,

45 KW Fluid Bed Dryer Granulator

Description of Pharmaceutical Grade FL Series Fluidized Bed Dryer



FL Series industrial Used Fluid Bed Dryer For Granule And Powder Material Fluid Bed Granulation Dryer



The advantage of fluid bed dryer technology rests with maintaining evenness and recurrence of product quality, which reflects an ideal balance between production efficiency and product quality.

In the process of fluidization, the materials floats above the air, with surface in full contact with the heated air,and the materials therefore is evenly heated and reaches an ideal state for heat exchange thus to have a high efficiency.

Configurated with proper spraying system and through further structural improvement, the fluid bed then becomes a multi-purpose processing facility in combined functions of drying, granulating, solution coating, and powder dressing.

Main Features

◎ Through powder granulation, improve fluidity, reduce dust flying;

◎ Through powder granulation;

◎ mixed-granulation-drying-completed in one machine (one step legal grain);

◎ antistatic filter material, safe equipment operation;

◎ adhesive atomizer with multi-fluid spray gun, uniform fog grain, the qualified rate of finished products is greatly improved;

◎ equipment has no dead corners, loading and unloading light and fast, rinse clean.



1) Mixing-granulator-dryer in one-step.

2) Adopting double chamber filtering bags system, removing dust completely.

3) Adopting multi-fluid nozzle, it gurantees that the formed granule is uniform and the content of powder is very low.

4) Can choose two bars explosion-proof design

5) Designed, manufactured and laid out by GMP

6) Design&Manufactured in accordance with JB20014-2004 <Fluid Bed Dryer Granulator In Medicine>



Technical Parameters:

Model-FL
5
30
60
120
200
300
500
Capacity(Kg/Batch)
5
30
60
120
200
300
500
Material yield Rate(%)
>/=99%
Qualified Rate (%)
</=85%
Container Volume(L)
22
100
220
420
670
1000
1500
Diameter(mm)
500
700
1000
1200
1400
1600
1800
Power of Fan(Kw)
3
7.5
11
18.5
22
30
45
Liquid Feed Power(Kw)
0.37
Pressure of Steam(MPa)
0.4~0.6
Consumption Steam(Kg/h)
18
60
120
140
180
310
400
Compress Air Pressure( MPa)
0.4~0.6
Consumption of Air(m3/min)
0.3
0.9
0.9
0.9
1.1
1.1
1.5
Working Temperature C
Room temperature~120C adjustable
Noisy(dB)
Installed separated with fan </=75

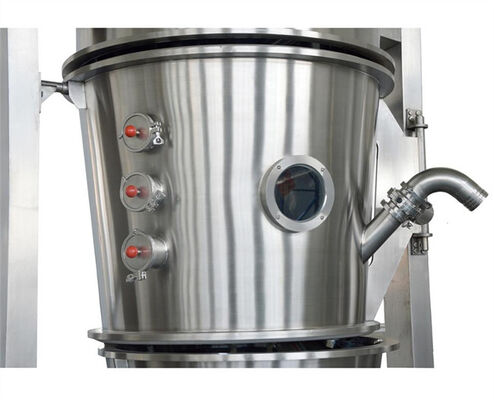

 Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series 0

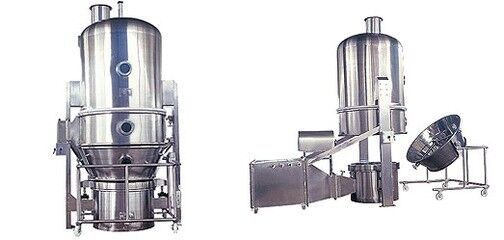

Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series 1

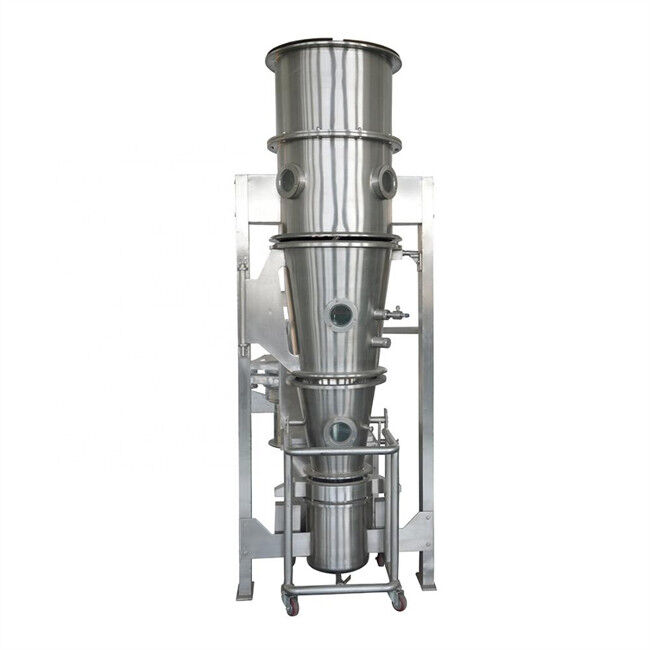

Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series 2

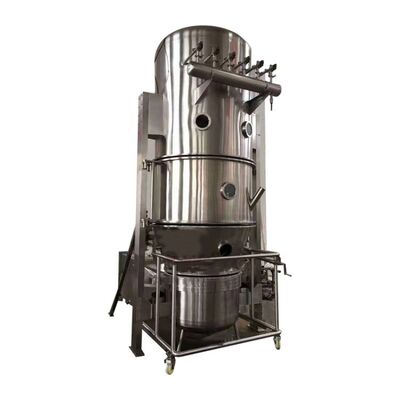

Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series 3

OUR FACTORY:

Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series 4
Vertical Fluid Bed Dryer Granulation Machine Chemical FL Series 5

Pre-service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.

2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.

3.We will recommend and offer machine according to customer’s use and purchase budget.

Sale service
1. Ensure product with high quality and pre-commissioning before delivery; provide each manufacturing step photo for customer checking on time.

2.Testing the machine and making video for customer’s checking.
3. Delivery on time;
4.Provide full sets of documents as customer’s requirements.

After-sale service
1.We will guarantee the machine quality for 1 year.

2.We provide free training and answer customer's question on technology in time.


Before offering you a good price, We need to know the information as below:
What is your material name?
What is the initial moisture percentage before drying?
What is the residual moisture percentage after drying?
What is the heating temperature your material can undertake during dryingprocess?
What is the heating source, steam, electricity, natural gas or others?
Last but important, what is capacity how many kgs/h before drying or after drying?
