Specializing in the production of pharmaceutical machinery and granulating drying equipment.

|
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | FL 120 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Film wrapping, wooden case. |
| Delivery Time: | 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 SETS/ YEAR |
| Product: | FL-120 Fluid Bed Drying Granulator | Function: | Granulating & Drying, Granulator, Food, Pharmaceutical, |
|---|---|---|---|
| Container Volume: | 12L-1500L | Capacity: | 80 - 160 Kg/batch |
| Materials Processed: | Powder, Granules, Pharmaceutical, Food, Chemical Industrial | Machine Material: | SUS304, SUS316L, Other, Stainless Steel304/316L |
| Temperature: | Room Temp. - 120 | Working Time: | 45-90 Min (varies As Different Raw Materials) |
| High Light: | Vertical fluid bed dryer granulator,12L fluid bed dryer granulator,1500L fluidized bed spray granulation |
||
Food Powder Spray Granulating Machine Coffee Drying Powder Fluid Bed Dryer Granulator in Multi Industry

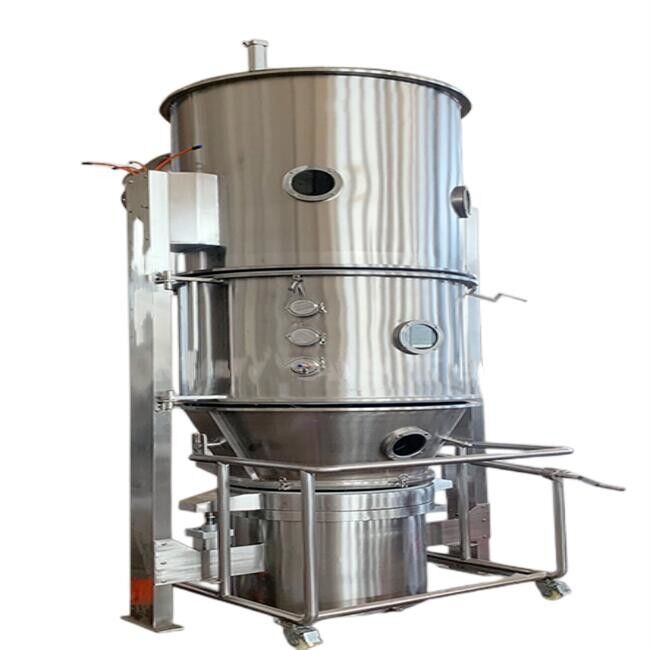

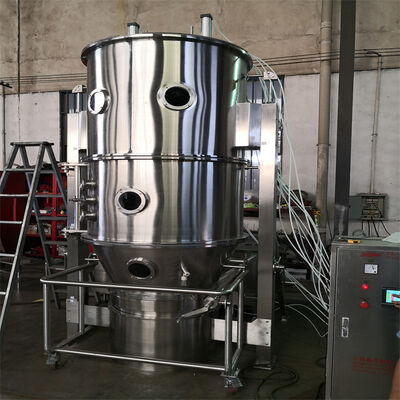

Vertical Vibration Pharmaceutical Granulation Machine Fluid Bed Dryer Granulator
Material suspends and forms fluidized state under the action of the undefiled hot air flow (load pressure), its surface is in full contact with the heated air, and the material is evenly heated and reaches ideal state for hot swapping thus to have a high efficiency. Configured with proper spraying system and through further structural improvement, fluid bed becomes a kind of multi-purpose processing facility in combined functions of drying, granulating.
Nozzle designs of Fluidized Bed Granulator
i. Pressure nozzle – This type of nozzle breaks up fluid under pressure by its inherent instability and its impact on the atmosphere, one another jet, or on a fixed plate.
ii. Rotating nozzle – This nozzle type is also known as rotary atomizer and it is used mainly in spray drying application.
iii. Airless spray nozzle – With this type of nozzle, the fluid is separated into two streams that are brought back together at the nozzle orifice, whereupon impingement from drops.
Main Parameters:
| type | 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | 1000 | ||
| item | unit | ||||||||||
Container of raw material |
diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 2200 |
| volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | 2500 | |
Production capacity |
min | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | 500 |
| max | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | 1100 | |
| consumption of steam | kg/h | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | 800 | |
amount of compressed air |
m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.5 | |
| Power of fan | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | 75 | |
| Temperature | ºC | 120°C (Adjustable from ambient to 120) | |||||||||
| Yield | % | >99 | |||||||||
| Option time | min | 1530(depends on material) | |||||||||
| Content at final term. | % | -0.2( depends on material) | |||||||||
| Noise | dB | ≤75 | |||||||||
| Height of main machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4800 | 6200 | |
The process consists of two programs including mixing and granulating process.
Powder material can be charged into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hopper is closed. In the meanwhile, all materials grow up the shape of liquid bridge under continuous effects of conical wall. Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turned to loosen. At last, while opening the hopper outlet, waterish particles are pushed off under the centrifugal effects blade.
1. Drugs granulation and coating.
2. Granulation: Tablet particles, granule particles, capsule particles.
3. Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating.
4. Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.
5. Pesticide, paint pigment, dry granulation Powder, granules, block materials.

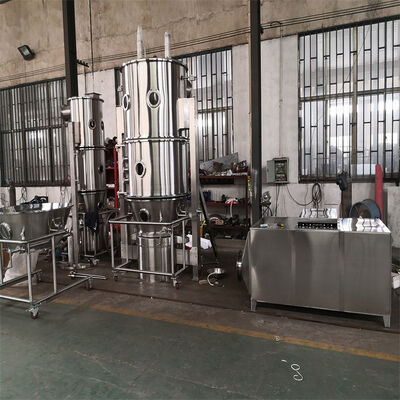

OUR FACTORY:
Packing: The product will be packed in wooden case, and also can be packed in other ways as your request. Both neutral and customized packing is available.
Shipping: We can ship the goods to you by international express, such as DHL, UPS, TNT and so on. And you can choose the appropriate way based on your timeline and budget. Besides, you can choose to use your own shipping agent.
Express: Door to door, very convenient, don't need clearance or pick-up.
By air: Form Airport to the airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent do for you.
By sea: Port to port and you need to do the customs clearance and pick up the goods at your local port, which you can have a local shipping agent do for you.
SNYNXN is a comprehensive company integrating R&D, production and sales. We carefully design and manufacture food and pharmaceutical processing equipment for customers around the world. Based on product quality, we constantly pursue technological innovation, expand and improve our product line. We have first-class scientific research talents, a professional sales team, and perfect after-sales service to ensure that you can use our products without worry in the whole process.
Since its establishment, our company has developed various products, including drying ovens, spray dryers, freeze dryers, granulators, industrial dryers, mixing machines, etc. Our products are best-selling all over the world and have gained wide praise, which are applied in food, pharmacy, chemical industry, schools, scientific research institutions and other fields. In production, we have established a complete quality management system to ensure product quality, realize safe production, and strive to produce attractive appearance, practical, stable, and cost-effective products. We will always serve you sincerely and believe that SNYNXN will become your preferred supplier.
Pre-sale service:
--24 Hours online service.
--Help choose the right model with a series of services and advice.
--Provide you with the best quote offer.
--Provide discount for bulk orders.
--Meet your customized requirement.
--Choose a payment term convenient for you.
--Promptly production and delivery of information.
--Provide invoice.
After-sale service:
--Product installation support.
--Technical Engineers are available.
--Remote control technical consultation.
--1 year warranty service and lifelong maintenance.
