Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | 20B |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden case |
| Delivery Time: | IN 60 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Machine Type: | Spice Powder Pulverizer | Finished Size: | 20 - 120 Mesh |
|---|---|---|---|
| Usage: | Make Super Fine Powders | Capacity: | 5 - 800 Kg/h |
| Model: | 20B-100B | Range Of Spindle Speed: | 2200 - 4500 R.p.m |
| Machinery Test Report: | Provided | Feature: | Easy Operation, Low Cost, Rapid Production. |
| Dimension(L*W*H): | As Per Ordered Model | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| High Light: | 20B turmeric powder making machine,SS316L turmeric powder making machine,GMP powder grinder machine |
||
Product Application
This pin mill is widely used in Food, chemical, pharmaceutical and other industries.
There are different models for different requirement.
It has mesh screen inside of the grinding chamber, you can get the powder size by changing the screen size.
Easy to operate,clean and maintenance.
Main Features
1. This grinding machine is widely used in food, chemical and pharmaceutical industry.
2. For normal material, it can grind into 20-120 mesh.Customer can use different size of sieves to get the fineness they need.
3. This machine has different models, capacity from 20-1000 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. Simple structure, convenient cleaning and low noise.

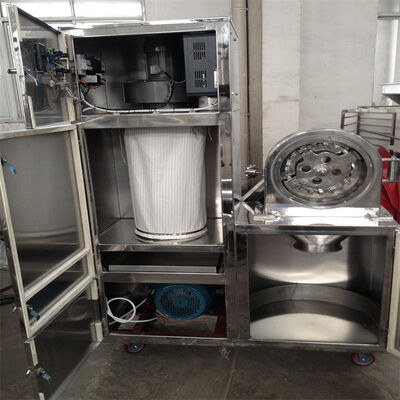

7. The machine can be equipped with dust collector, no fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.
|
Model
|
Input size
|
Output size
|
Capacity
|
Grinding motor
|
Speed
|
Overall dimension
|
Weight
|
|
20B
|
<10mm
|
10-120mesh
|
20-50kg/h
|
4kw
|
4500rpm
|
600*650*1150mm
|
185kg
|
|
30B
|
<10mm
|
10-120mesh
|
50-150kg/h
|
5.5kw
|
3800rpm
|
700*7400*1500mm
|
250kg
|
|
40B
|
<10mm
|
10-120mesh
|
100-300kg/h
|
11kw
|
11kw
|
800*900*1600mm
|
363kg
|
|
60B
|
<10mm
|
10-120mesh
|
300-500kg/h
|
22kw
|
22kw
|
900*850*1910mm
|
758kg
|
|
80B
|
<10mm
|
10-120mesh
|
500-800kg/h
|
37kw
|
37kw
|
1000*950*2100mm
|
1500kg
|
|
100B
|
<10mm
|
10-120mesh
|
800-1000kg/h
|
55kw
|
55kw
|
1400*1100*2800mm
|
2000kg
|
Hammer type is better on little hard material like stone. If grinding grain cost a longer time.
Turbo wheel type is best in fineness degree of flour, even oil material. Only notice its big noise.
Refiner disc type is main use for make food condiments, such as spice, ginger, curry flour.
Blade cut type has special effect on material with fiber, like herb. Flour with very high uniformity.
