Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | HTD 100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden Case |
| Delivery Time: | IN 20 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Machine Namde: | Automatic IBC Bin Lifting Blender Liquid Powder Mixer | Max. Loading Capacity: | Up To 2000L |
|---|---|---|---|
| Loading Coefficient: | 70% | Selling Point: | Multiuse, |
| Applicable Industry: | Food & Beverage Shops, Pharmaceutical Company, Cosmetics Company | Core Components: | Motor, Gear, PLC, Bearing, Engine |
| Machinery Video: | Provided | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| Material: | SS304 Or SS316 Is Optional | Warranty: | 1 Year, 2 Years Of Core Components |
| High Light: | Food Industrial pharmaceutical powder blender,Single Column pharmaceutical powder blender,SS316 blender mixer machine |
||
Description of Pharmaceutical Lifting System Blending Equipment

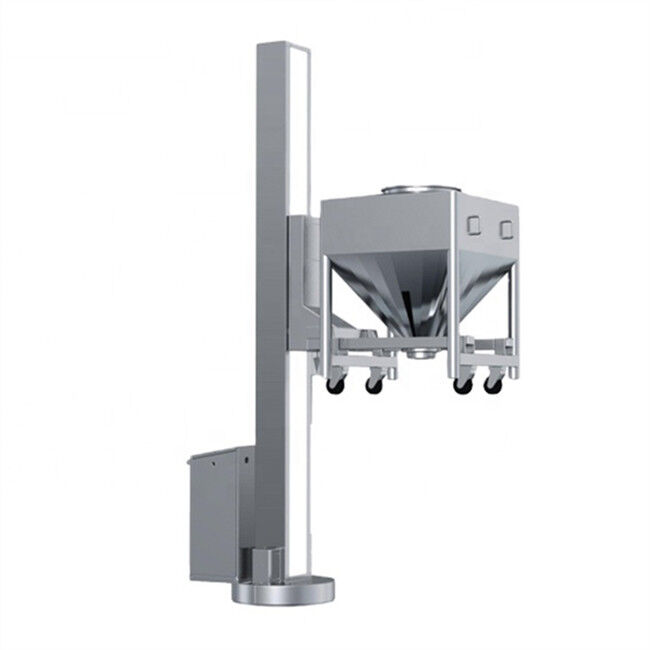

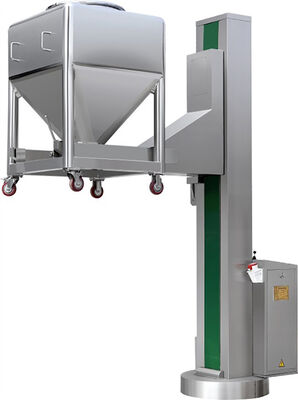

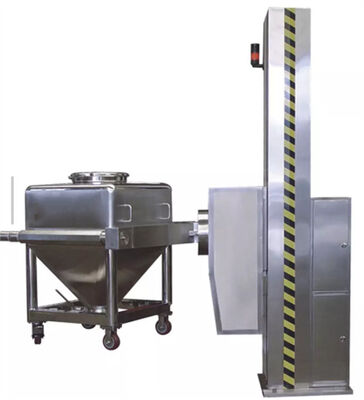

High Efficiency Pharmaceutical And Food Industrial Single-Column Lifting Powder IBC Bin Blender
The machine is composed of colunm, machine base, rotation crotch, driving system, braking system, control system, etc. Push the mixing hopper into the rotation crotch and lock the nuts. Start the control system to lift the hopper to the mixing height and postition it reliably. The driving system will carry out automatic mixing according to the set time, rotation speed and other data. After the mixing operation is finished, the rotation crotch will stop vertically, the hopper will be printed. Loosen the locknuts of the ratary crotch and push the hopper out and transfer it to the next process.
Main features:
1. The machine has such features as resonable structure, stable performance, convenient operation, no dead corners, and no exposed bolts.
2.The gyrator (mixing hopper ) forms an included angle of 30 with the rotation axis. The materials in the mixing hopper rotate along with the gyrator and make tangential movement and achieving the best mixing effect.
3.PLC automatic control is adopted. It is provided with the infrared safety device and the discharging butterfly valve with the misoperation preventer to ensure safe production.
| Model No. | Max bin volume(L) | Max Working Volume(L) | Turning Speed(rpm) | Total Power(KW) | Dimension(mm) | Total Weight(KG) |
| HTD-100 | 100 | 80 | 3-20 | 2.2 | 2300*1500*2000 | 600 |
| HTD-300 | 300 | 240 | 3-20 | 3 | 2500*1900*2000 | 1000 |
| HTD-600 | 600 | 480 | 3-15 | 4.4 | 2800*2300*2500 | 1500 |
| HTD-800 | 800 | 640 | 3-15 | 6.2 | 3000*2600*2500 | 1800 |
| HTD-1000 | 1000 | 800 | 3-10 | 6.2 | 3250*2750*2800 | 2000 |
| HTD-1500 | 1500 | 1200 | 3-10 | 6.2 | 3300*2800*2800 | 2200 |
| Please feel free to contact us if you need more technical parameters ! | ||||||
| Delivery Time: | 20 working days after prepayment. Destination port: the Port at your option |
|
Term of Payment: Price valid until: |
Effected within 30 days from the date of signing the purchase contract and receipt of T/T affected for advance payment. 30 days from offering date |
| Package: | Export standard and sea worthy wooden case. |
| Port of Shipment: | Shanghai port. |
| Warranty: | Guarantee 12 months since installation and no more 16 months after delivery. |
|
Quality of Goods: Other Terms: |
100% brand new, manufactured in the year 2022. Origin of Goods: Jiangsu, China. |
SNYNXN has been manufacturing, engineering and exporting various kinds of industrial dryers, mixers, granulators and impact mills since 2007 for a lot of satisfied customers.
SNYNXN pay attention to detail and real production data is critical in the manufacturing of industrial machinery. An unique design for specific material is always made based on real production experiences or trial data.
SNYNXN has experienced technicians who has been working in this field for more than 20 years as well as professional pilot plant. Free trial and material study are available for our customers.
SNYNXN has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, commissioning and training services.
SNYNXN is always your reliable machinery supplier.
Contact Person: Salin Chen
Tel: +86-13961601352
