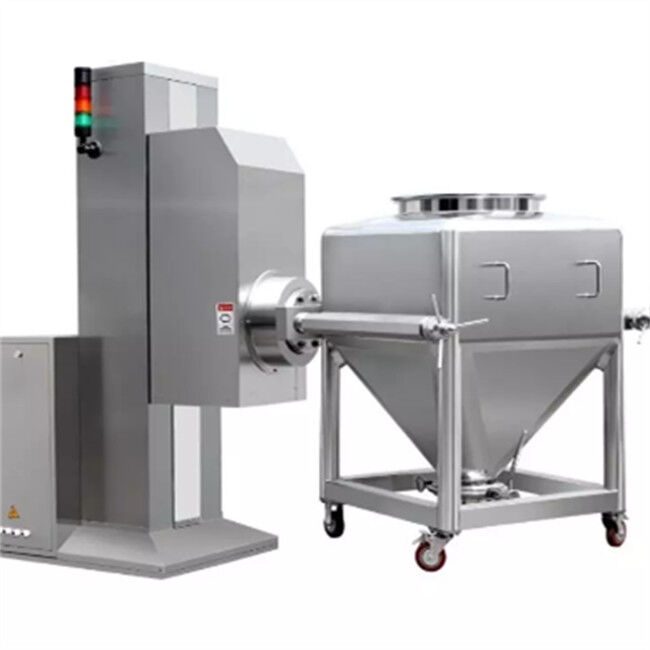

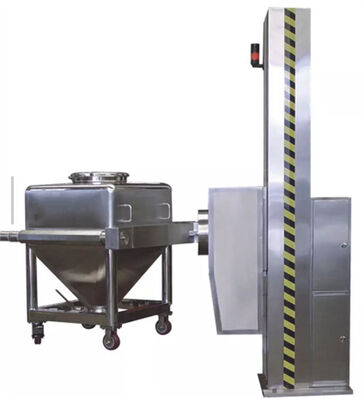

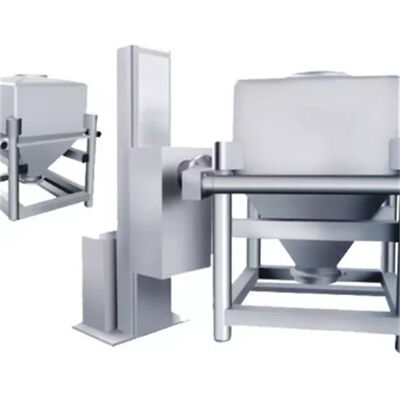

480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial

480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial

  • 480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial
  • 480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial
  • 480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial
  • 480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial
480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: HTD 600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packing in Wooden Case
Delivery Time: IN 20 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 sets / year
Contact Now
Detailed Product Description
Features: Easy To Operate, Long Term Sustainable Type: Industrial Bin Blender Mixer
Application: Pharmaceutical And Food Powder Bin Volume: 600 L
Max. Loading Volume: 480 L Hydraulic Station Volume: 25 L
Hydraulic Power: 3.0 KW Core Components: Motor, Valve, Vessel
Place Of Origin: Jiangsu, China After Sales Service: Online Support, Engineers Available To Service Machinery Overseas
High Light:

480L powder mixer blender

,

Single Column powder mixer blender

,

3kw IBC Bin Blender

Description of Pharmaceutical Lifting System Blending Equipment

The HTD single-column lifting bin mixer is widely used for mixing different components of powders with powders, powders with granules and granules with granules in the production procedure in the pharmaceutical industry. The machine is provided with such functions as automatic lifting, mixing, lowering, etc. It can be equipped with various specifications of bin for mixing operation. It is suitable for mixing medicines of different varieties and different batches in large and medium-sized pharmaceutical enterprises according to process requirements. Multiple purposes can be realized in one machine.

Work Principle
Push the mixing bin into the rotary arm and tighten it. Start the control system and lift the bin to the mixing height. The control system will carry out automatic mixing according to the set time, rotation speed and other data. After the mixing operation is finished, the mixing bin completes vertical positioning. At the time, select to lower the mixing bin and complete the mixing procedure, or raising the bin to dispensing position, the after finish lower it, and prints the process data. Loosen the locking nut of the rotary arm and push out the bin to the next procedure. As the symmetrical axis of the bin forms an included angle with the rotary arm rotation axis, different components of materials will make three-dimensional movement in the closed bin, producing strong turning and high shearing and achieving the best mixing effect.


Features
1) The product is a mechanically and electrically integrated high- tech product. It adopts hydraulic lifting, hydraulic driving and PLC control, with simple control and convenient adjustment of process parameters.
2) Good control system sensitivity, compact machine structure and stable and reliable running.
3) A single machine can be equipped with hoppers of different specifications. The materials are discharged together with the bin from the rotary arm without going out of the bin after mixing and directly transferred to the next procedure, so that the use efficiency of the mixer is greatly increased and cross contamination of materials is avoided, and GMP requirements are fully met.
4) The mixing barrel can serve both as the dispensing barrel for the previous procedure and as the feeding bin for the next procedure (tablet pressing, filling).
5) The mixing evenness is above 99%, the volume loading coefficient is 0.80 and the barrel inside and outside are bright and clean without any dead corners.
6) After the mixing of each batch of medicines, the hopper will be sent to a special cleaning room for cleaning to maintain a clean environment of the work room.


Technical Parameters:
Model HTD-300 HTD-400 HTD-600 HTD-800
Blending speed 3-20rpm 3-20rpm 3-15rpm 3-15rpm
Net load 150 200 300 400
Total power 4.4KW 5.2KW 5.2KW 7KW
Machine weight 900kg 1000kg 1300kg 1600kg
Rotation 2150mm 2250mm 2500mm 2600mm
Ceiling height 2800mm 2800mm 2800mm 2800mm
Rotation width 2000mmm 2100mm 2400mm 2500mm
Overall dimension 2457x1306x2300mm 2555x1445x2400mm 2663x1583x2500mm
2800x1730x2500mm


480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial 0

480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial 1

480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial 2
480L IBC Bin Single Column Lifting Powder Mixer Blender For Pharmaceutical Food Industrial 3
SNYNXN has been manufacturing, engineering and exporting various kinds of industrial dryers, mixers, granulators and impact mills since 2007 for a lot of satisfied customers.
SNYNXN pay attention to detail and real production data is critical in the manufacturing of industrial machinery. An unique design for specific material is always made based on real production experiences or trial data.
SNYNXN has experienced technicians who has been working in this field for more than 20 years as well as professional pilot plant. Free trial and material study are available for our customers.
SNYNXN has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, commissioning and training services.
SNYNXN is always your reliable machinery supplier.
