1200L Post Bin Blender Pharmaceutical Stainless Steel IBC Container Powder Movable Tank

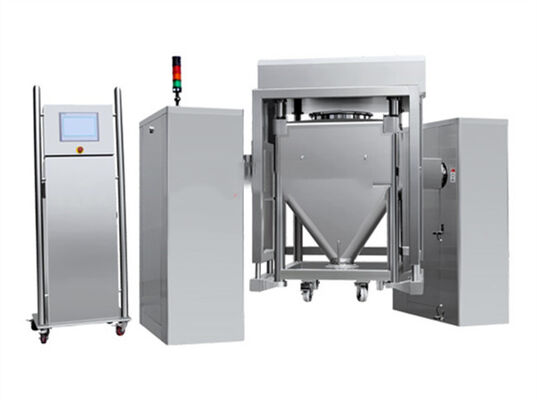

This equipment is composed of frame,rotating cage ;drive,lifting,brake,and control systems. When operating,firstly,load the bin in the rotating cage and press‘’confirm’’ key on the touch panel,the bin will be automatically raised in position and clamped.On reception of clamped signal by the sensors, the drive system starts blending task according to the set time and rotation speed. On reaching all the set parameters,the brake system operates automatically to stop the rotating cage to a horizontal position and the blending task is finished. Then,the lifting system works to lower the bin on the ground and on reaching that position,it stops automatically. Finally,data of this batch are printed. Move out the bin from the rotating cage to transfer it for the next process.

Structural characteristics of this equipment are: the rotating cage is tilted 30 degree as compared to the rotation axis, the materials perform a double movement inside the bin: a constant and intense turnover following the frame rotation and also a relatively high tangential motion along the bin wall to realize an optimal blending effect and result in PLC, also infrared safety device and a device avoiding misoperation of butterfly valve are designed to ensure a fully automatic control and a safe production.

All processes of the material are finished in a same container without frequent material transfer,charging and shift.Consequently,powder dust or cross pollution are effectively controlled to reduce material losses,and on the other hand,an effective control of material layers is achieved.

Finally,the production process has been greatly optimized. SINO Series Bin Blenders comply entirely with requirements for medicine production.
