Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine

Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine

Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine
Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine
Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: SYH 400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packing in Wooden case
Delivery Time: IN 30 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 sets / year
Contact Now
Detailed Product Description
Equipment: Three Dimensional Mixer Heating Method: Electric Heating Method
Max. Loading Capacity: 400 L Usage: Mixing All Type Of Raw Material
Selling Points: Automatic, Low Cost. Place Of Origin: Jiangsu, China
Application Scope: Mixing Powder After Sales Service: Online Support, Engineers Available To Service Machinery Overseas
Highlight:

SNYNXN Chemical Multi Direction Mixer

,

SNYNXN Food Whey Multi Direction Mixer

,

SNYNXN 400L protein mixer machine

Product Description Chemical Industry Food Dry Mixing 3 Dimension Swing Mixer

Chemical Industry Food Whey Protein Dry Mixing 3 Dimension Swing Mixer 3D Mix Machine For Pharmacy Albumen Powder

Product Application

The 3D Motion Mixer / Blender / Mixing Machine is suitable for high evenness mixing of materials in such industries as chemical industry, medicine, battery, metallurgy, food and scientific research units.

Principle

When it works, the mixing machine is provided with three-dimensional movement, and carries out revolution and rotation. The mixing machine has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.

Main Features

1. The mixing machine is provided with three-dimensional movement so that the materials complete the process of mutual mixing from the agglomeration status to dispersion status under the actions of flowing , shearing, translational movement and dispersion, even mixing of materials is ensured and the evenness reaches 99.9%. In ordinary mixers, the materials only make simple dispersion and agglomeration movement in the vessel, which is featured by low efficiency and bad mixing quality.

2. With short mixing time and high efficiency, the effective loading rate of the vessel reaches 80%. (The rate of ordinary mixers in only 40%.)

3. SYH Model 3d Motion Mixer / Blender / Mixing Machine height is low and does not have special requirements for plants, so that investment in basic construction is reduced.

4. The mixing barrel and machine body driving part can adopt partition installation to meet GMP requirement.

5. For the SYH mixing vessels of various shapes can be placed in the mixing barrel for mixing with convenient use.

6. Stepless speed adjustment can be realized to facilitate material loading and unloading.

7. It is featured by long service life and low noise.

8. Vacuum feeding and lifting machine feeding are avaliable.



Technical Parameters

Model
Mixing
Barrel
Volume
(L)
Maximum
Loading
Coefficient
(%)
Maximum
Material
Load
(kg)
Voltage


(V.Hz)
Total
Power

(Kw)
Speed


(rpm)
Weight


(kg)
SYH-2
2
80
0.8
380/50
0.18
2-12
15
SYH-17
17
80
6.8
380/50
0.75
2-12
80
SYH-30
30
80
12
380/50
0.75
2-12
90
SYH-60
60
80
24
380/50
1.1
2-12
150
SYH-100
100
80
40
380/50
1.5
2-12
220
SYH-200
200
80
80
380/50
2.2
2-8
400
SYH-400
400
80
160
380/50
4
2-8
500
SYH-500
500
80
200
380/50
5.5
2-8
750
SYH-600
600
80
240
380/50
5.5
2-8
900
SYH-800
800
80
320
380/50
7.5
2-8
1100
SYH-1000
1000
80
400
380/50
7.5
2-8
1200
SYH-1500
1500
80
600
380/50
11
2-8
1500
SYH-2000
2000
80
800
380/50
15
2-8
1700

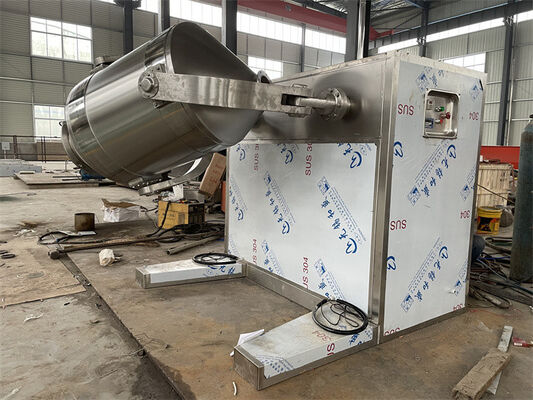

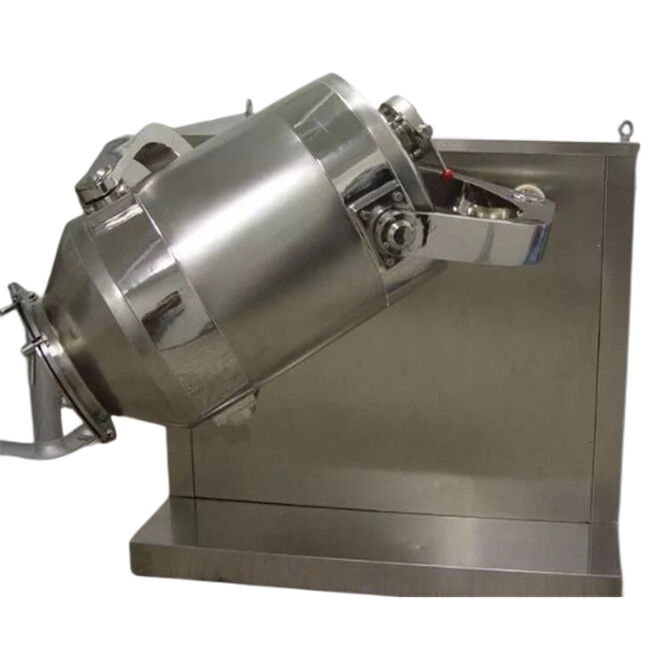

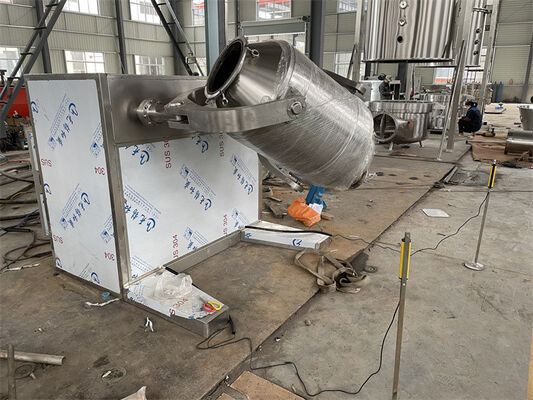

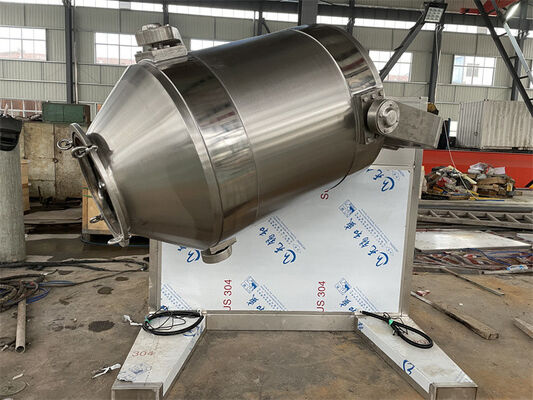

Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine 0

Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine 1



Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine 2

Chemical Industry Food Whey Protein Dry Multi Direction Mixer 3 Dimension Swing Mixer Machine 3

FAQ

One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians.
1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than 15 years.
3. What's your payment way?
T/T by our bank account directly, or by MadeinChina or Alibaba's trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by
yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
