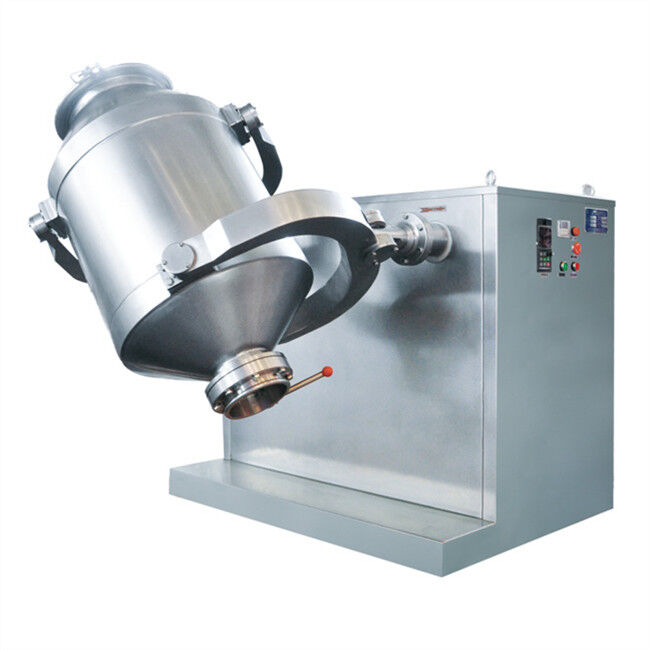

SYH Series 1000L Large Capacity Powder Blender Machine SS316L GMP 3D Mixer

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	SYH 1000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden case
Delivery Time:	IN 30 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Type:	SYH-1000L 3D Mixer	Key Selling Points:	Multi-functional, High Uniformity.
Usage:	Mixing Powder/ Granules	Application Scope:	Chemical Cosmetic Pharmacy Food Industry
Max. Loading Volume:	800 L	Max. Feeding Weight:	500 Kg
Range Of Spindle Speed(r.p.m):	8 - 15 R.p.m	Discharge:	Bottom, Butterfly Valve
Core Components:	Motor, Gear, Pressure Vessel, Gearbox	After Sales Service:	Online Support, Engineers Available To Service Machinery Overseas
Highlight:	1000L powder blender machine , Large Capacity powder blender machine , GMP 3d mixer

Description of Large Capacity Bulk Powder Mixing 3D Mixer

SYH Series 1000L Large Capacity Bulk Powder Mixing 3D Mixer With SS316L GMP Standard Mixing Machine

SYH series good quality SUS powder 3D mixer blender mixture machine mainly used to mix dry powder or granules for pharma, food, chemicals, and other relative industry. It is more suitable filling materials with bulk gravity range from 0.8-2.0g /cm3, such as steel powder mixing, aluminum powder mixing.

With professional engineering design, our 3D mixer keeps driving the mixer container into one three dimensional movement, then the materials inside will efficiently mix during this continuous process. it also has the features of smooth running, low noise, high loading volume, and short mixing time as well.

Principle

When it works, the mixing machine is provided with three-dimensional movement, and carries out revolution and rotation. The mixing machine has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.

Main Features:
1,High powder mixing efficiency.
2,Easy for installation and daily clean.
3,SUS 304 or SUS 316L machine material is available to meet GMP standard.
4,Commonly use butterfly valve for discharging.
5,Safety frame with doors can be optional to protect workers when the get closed to the mixer while it is rotating.

Technical Specification

Model	Mixing Barrel Volume (L)	Maximum Loading Coefficient (%)	Maximum Material Load (kg)	Voltage (V.Hz)	Total Power (Kw)	Speed (rpm)	Weight (kg)
SYH-2	2	80	0.8	380/50	0.18	2-12	15
SYH-17	17	80	6.8	380/50	0.75	2-12	80
SYH-30	30	80	12	380/50	0.75	2-12	90
SYH-60	60	80	24	380/50	1.1	2-12	150
SYH-100	100	80	40	380/50	1.5	2-12	220
SYH-200	200	80	80	380/50	2.2	2-8	400
SYH-400	400	80	160	380/50	4	2-8	500
SYH-500	500	80	200	380/50	5.5	2-8	750
SYH-600	600	80	240	380/50	5.5	2-8	900
SYH-800	800	80	320	380/50	7.5	2-8	1100
SYH-1000	1000	80	400	380/50	7.5	2-8	1200
SYH-1500	1500	80	600	380/50	11	2-8	1500
SYH-2000	2000	80	800	380/50	15	2-8	1700

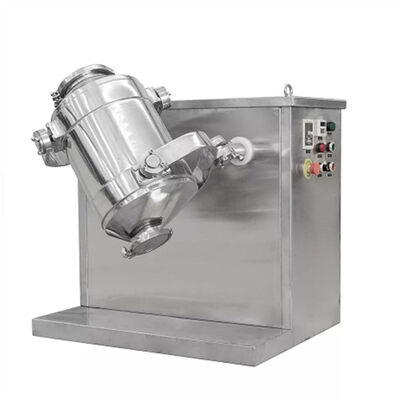

SYH Series 1000L Large Capacity Powder Blender Machine SS316L GMP 3D Mixer 1

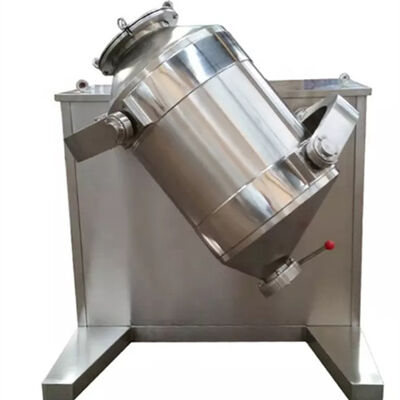

SYH Series 1000L Large Capacity Powder Blender Machine SS316L GMP 3D Mixer 2

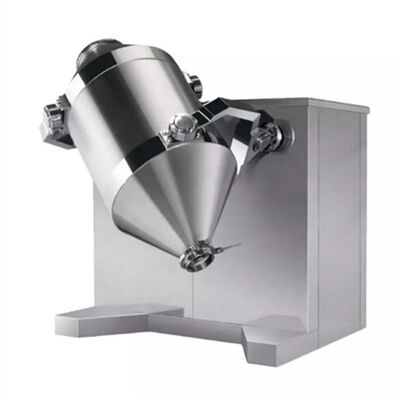

SYH Series 1000L Large Capacity Powder Blender Machine SS316L GMP 3D Mixer 3

Before offering you a good price, we need the below information:

1-what material you want to mix? do you know the density of it? (eg:0.5g/cm3,1.1g/cm3,0.8g/cm3)
2-what capacity you expect? (kg/batch, or litre/batch)
3-what material of this equipment you want? usually we adopt stainess steel 304; optional:1-all carbon steel; 2-contact part 304ss,other parts carbon steel
4-do you need a jacket around the mixer for cooling or heating?
