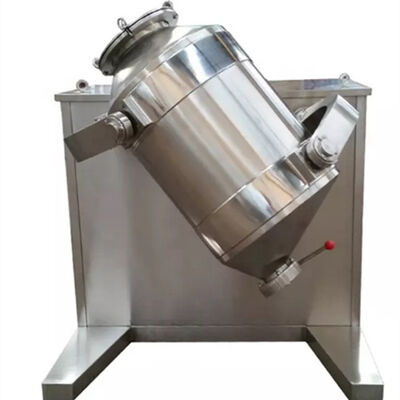

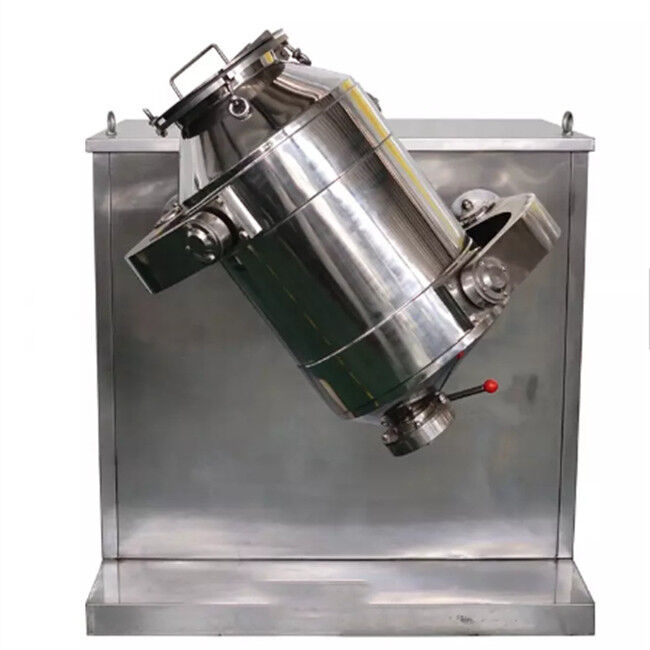

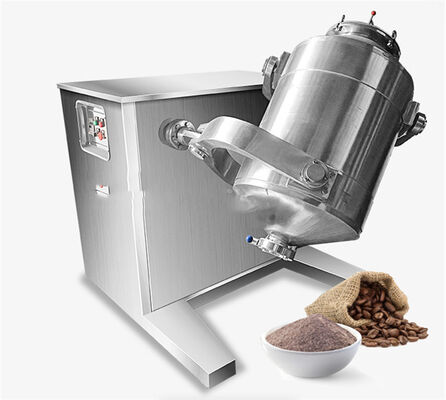

SYH Series Three Dimensional Motions Multi Direction Mixer For Foodstuff Industry

SYH Series Three Dimensional Motions Multi Direction Mixer For Foodstuff Industry

SYH Series Three Dimensional Motions Multi Direction Mixer For Foodstuff Industry
SYH Series Three Dimensional Motions Multi Direction Mixer For Foodstuff Industry
SYH Series Three Dimensional Motions Multi Direction Mixer For Foodstuff Industry
Product Details:
Place of Origin: JIANGSU CHINA
Brand Name: SNYNXN
Certification: CE ISO GMP
Model Number: SYH 100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packing in Wooden case
Delivery Time: IN 30 DAYS
Payment Terms: T/T, L/C
Supply Ability: 100 sets / year
Contact Now
Detailed Product Description
Type: SYH-100L 3D Mixer Machine Usage: Mixing Powder
Material Processed: Chemicals, Food, Medicine Speed Control: Inverter Frequency Control
Speed: 0-15 Rpm Discharge: Bottom Discharge
Core Components: Motor, Gear, Pressure Vessel, Gearbox Key Selling Points: Multi-functional, High Uniformity.
Marketing Type: Hot Selling Product 2022 After Sales Service: Online Support, Engineers Available To Service Machinery Overseas
High Light:

Three Dimensional Multi Direction Mixer

,

15rpm Multi Direction Mixer

,

Foodstuff dry powder blending machine

Description of  Three Dimensional 3D Motion Mixer

SYH Series Three Dimensional Motions Mixer For Foodstuff Industry



The SYH 10/20/30/50/100/200/300/400/500/800 Model 3d Motion Mixer / Blender / Mixing Machine is suitable for high evenness mixing of materials in such industries as chemical industry, medicine, battery, metallurgy, food and scientific research units.

Principle

When it works, the mixing machine is provided with three-dimensional movement, and carries out revolution and rotation. The mixing machine has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.

Main Features:

1. The mixing machine is provided with three-dimensional movement so that the materials complete the process of mutual mixing from the agglomeration status to dispersion status under the actions of flowing , shearing, translational movement and dispersion, even mixing of materials is ensured and the evenness reaches 99.9%. In ordinary mixers, the materials only make simple dispersion and agglomeration movement in the vessel, which is featured by low efficiency and bad mixing quality.
2. With short mixing time and high efficiency, the effective loading rate of the vessel reaches 80%. (The rate of ordinary mixers in only 40%.)
3. SBH SYH SWH 10/20/30/50/100/200/300/400/500/800 Model 3d Motion Mixer / Blender / Mixing Machine is low and does not have special requirements for plants, so that investment in basic construction is reduced.
4. The mixing barrel and machine body driving part can adopt partition installation to meet GMP requirement.
5. For the SBH SYH SWH 10/20/30/50/100/200/300/400/500/800 Model 3d Motion Mixer / Blender / Mixing Machine , mixing vessels of various shapes can be placed in the mixing barrel for mixing with convenient use.
6. Stepless speed adjustment can be realized to facilitate material loading and unloading.
7. It is featured by long service life and low noise.
8. Vacuum feeding and lifting machine feeding are avaliable.

Specification
Model
Mixing
Barrel
Volume
(L)
Maximum
Loading
Coefficient
(%)
Maximum
Material
Load (kg)
Voltage

(V.Hz)
Total
Power
(Kw)
Speed

(rpm)
Weight

(kg)
SYH-2
2
80
0.8
380/50
0.18
2-12
15
SYH-17
17
80
6.8
380/50
0.75
2-12
80
SYH-30
30
80
12
380/50
0.75
2-12
90
SYH-60
60
80
24
380/50
1.1
2-12
150
SYH-100
100
80
40
380/50
1.5
2-12
220
SYH-200
200
80
80
380/50
2.2
2-8
400
SYH-400
400
80
160
380/50
4
2-8
500
SYH-500
500
80
200
380/50
5.5
2-8
750
SYH-600
600
80
240
380/50
5.5
2-8
900
SYH-800
800
80
320
380/50
7.5
2-8
1100
SYH-1000
1000
80
400
380/50
7.5
2-8
1200
SYH-1500
1500
80
600
380/50
11
2-8
1500
SYH-2000
2000
80
800
380/50
15
2-8
1700

SYH Series Three Dimensional Motions Multi Direction Mixer For Foodstuff Industry 0

SYH Series Three Dimensional Motions Multi Direction Mixer For Foodstuff Industry 1



SYH Series Three Dimensional Motions Multi Direction Mixer For Foodstuff Industry 2

SYH Series Three Dimensional Motions Multi Direction Mixer For Foodstuff Industry 3
