Post HTD Column Hopper Mixture Machine Blending Equipment Pharmaceutical

Name: Post HTD Column Hopper Mixture Machine Blending Equipment Pharmaceutical
Brand: SNYNXN
SKU: HTD 300
Rating: 5 (194 reviews)

Product Details:

Place of Origin:	JIANGSU CHINA
Brand Name:	SNYNXN
Certification:	CE ISO GMP
Model Number:	HTD 300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Packing in Wooden Case
Delivery Time:	IN 20 DAYS
Payment Terms:	T/T, L/C
Supply Ability:	100 sets / year

Contact Now

Detailed Product Description

Machine Type:	Industrial Column Type Hopper Mixer	Mixing Type:	Powder Mixer
Max. Loading Capacity:	Depend On Model（50-800）	Motor Power:	4.5 - 9 KW
Application:	Plastics, Chemicals, Food, Medicine	Core Components:	Motor, Gearbox, PLC, Bearing, Engine
Test Report:	Provided	Showcase Location:	Egypt, Canada, Turkey, United States, Viete Nam, Philippines
High Light:	Post hopper mixture machine , HTD hopper mixture machine , 9kw blending equipment pharmaceutical

Description of Industrial HTD Column Type Hopper Mixer

New Design Post HTD Column Type Hopper Mixer For Pharmaceutical Industry

Totally stainless steel cover and it is easy to clean. The integration of deceleration and a brake motor, less transmission chain make it easy to maintain. Rotation frame is connected with the reduction gears directly, install easily and work reliably. Infrared security.

It can clamp different bin with various volumes and it can execute automatically raising, clamping, mixing and lowering tasks. One main machine can be configured with various hoppers, so different batches and requirements of mixing can be satisfied. It is convenient for the pharmaceutical company to manage the batch numbers strictly. After the finishing of hopper mixing, the vertical location and the lifting location stops, and the lowering locate automatically.

The PLC and the frequency control make the whole machine realize the function of process control, stable and reliable performance. The automatic and manual mode set in the internal part can be switched, the human-computer interface is friendly, it is convenient to set the process.

Application

The machine is provided with such functions as automatic lifting, mixing, lowering, etc. A bin mixer and several mixing bin of different specifications can meet the mixing requirements of different batches and diversified varieties of products. It is an ideal machine for mixing in pharmaceutical plants. It is also widely used in such industries as Pharmaceutical, chemical, food industry, etc.

Working Principle

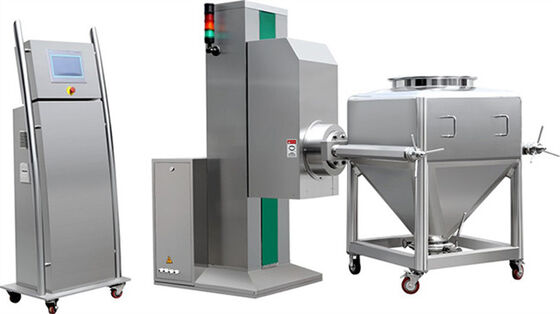

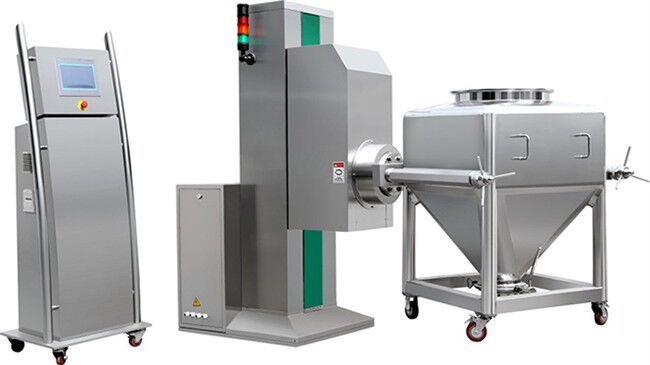

The machine is composed of two machine bases, rotation frame, rotation system, lifting system, control system, etc. Push the mixing bin into the rotation frame and complete the positioning. Start the control system to lift the rotation frame to the mixing height and clamp it reliably. The driving system will carry out automatic mixing according to the set time, rotation speed and other data. After the mixing operation is finished, the rotation frame will stop vertically, the bin will automatically fall to the ground, the machine will stop and process data will be printed. The bin is transferred to the next procedure.

Information should be provided in order to get a proposal or quotation:

1) powder you want to blend

2) bulk density of your powder

3) capacity per batch

Technical Parameters

Model	HTD-300	HTD-600	HTD-800	HTD-1000
Volume	300L	600L	800L	1000L
Load capacity	240L	480L	640L	800L
Speed	3-20r/min	3-15r/min	3-10r/min	3-10r/min
Total Power	4.5kw	6kw	8kw	9kw
Dimension	250011002600mm	270011002600mm	290012002700mm	310013802800mm
Weight	1000kg	1200kw	1600kg	1800kg

Post HTD Column Hopper Mixture Machine Blending Equipment Pharmaceutical 0

Post HTD Column Hopper Mixture Machine Blending Equipment Pharmaceutical 1

Post HTD Column Hopper Mixture Machine Blending Equipment Pharmaceutical 2

Post HTD Column Hopper Mixture Machine Blending Equipment Pharmaceutical 3

SNYNXN has been manufacturing, engineering and exporting various kinds of industrial dryers, mixers, granulators and impact mills since 2007 for a lot of satisfied customers.

SNYNXN pay attention to detail and real production data is critical in the manufacturing of industrial machinery. An unique design for specific material is always made based on real production experiences or trial data.

SNYNXN has experienced technicians who has been working in this field for more than 20 years as well as professional pilot plant. Free trial and material study are available for our customers.

SNYNXN has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, commissioning and training services.

SNYNXN is always your reliable machinery supplier.
