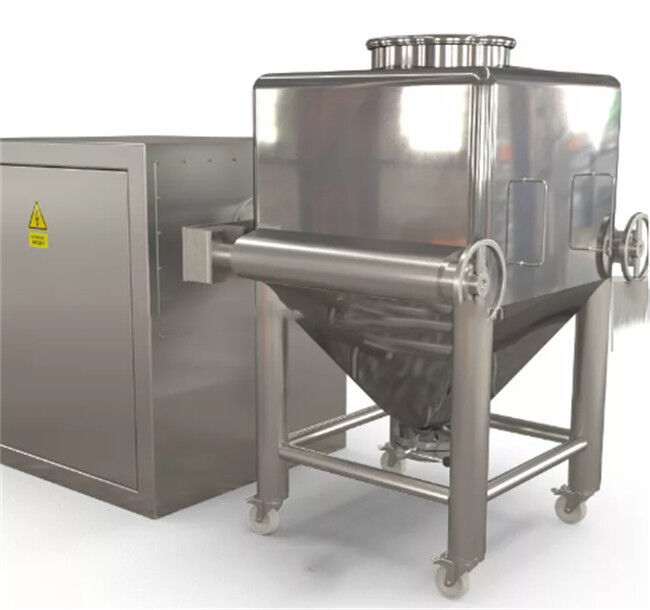

Large Scale Industrial IBC Stainless Steel Automatic Pharmaceutical Substances Blender IBC Bin

Description of Pharmaceutical Substances Blender IBC Bin Mixer

Purpose of the machine:

Industrial powder and granule bin mixing machines are designed according GMP standard and widely used in production process of various pharmaceutical substances, tablets, poisonous preparations, explosive products, dangerous substances, biological products etc.

General Introduction:

* State-of-the-art equipment for pharmaceutical powder and granules mixing;

* Universal solution for biological and chemical dangerous production;

* Construction according to GMP standard;

* Ready engineering solution for dustless loading, mixing, conveying, overloading and dispensing of the products;

* Firm and stable base for long terms service life;

* Sensor control console with simple and intuitive user interface for easy set up mixing modes and memory up to 20 products;

* Bins with different dimensions can be used on one blender;

* Three types of technological containers are made according to the customers' requirements:

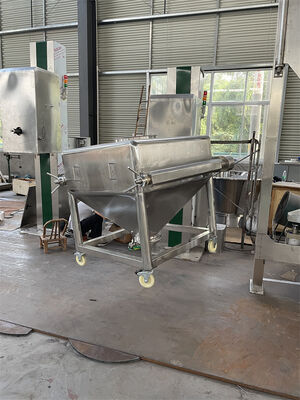

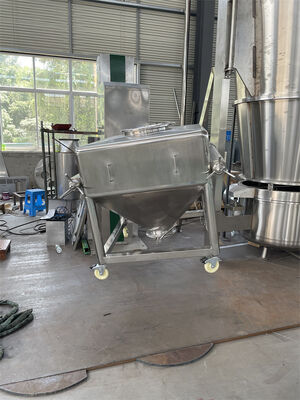

- wheeled type (wheel support/ foot);

- dolly type (on handling dolly);

- fixed support type (technological transport is used for moving);

* Dust and water proofed construction of bin mixer; electrical components with IP65 protection grade or ATEX 22.

Specification:

Standard features and accessories:

- External surface material AISI 304 (1.4301);

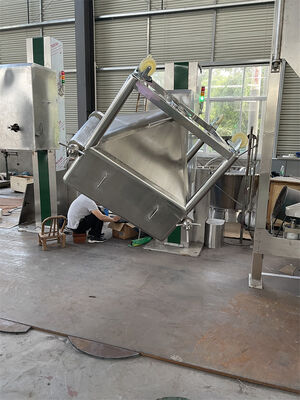

- Lifting and rotating functions;

- Cross-beam with the manual fastening mechanism of the bin;

- Remote control console;

- Controller Siemens / Delta / Fatek; sensor elements Autonics; automation elements Shneider / Eaton.

Option (at extra cost):

- Cross-arm with pneumatic clamping mechanism of the bin;

- Easy-removable feeding funnel with aspiration;

- Easy-removable high-speed mill for assembling to the technological container;

- Light and sound signal column for the staff.

Bin-mixer, can be completed in to mixing line with the follow equipment:

- Technological lifter for the bins;

- Easy-removalbe dispenser for dosing of the product from the technological container;

- Vacuum unloader for technological containers with quick fastening system;

- Washing machine for technological containers / bins;

- Suction / aspiration device.

Standard features:

- Product contacting surfaces are made of stainless steel AISI 316L (1.4404) or AISI 304 (1.4301);

- Other surfaces are made of stainless steel AISI 304 (1.4301);

- Surface finishing:

- polished inner surfaces;

- outer surfaces 2B with stripped seams.

- Charging manhole with quick-removable connection Clamp-Lock with the cover 400mm;

- Discharge valve Dy 250 with quick-removable connection Clamp-Lock.

Optionally:

- flange for ventilation connection;

- flange for connection of the milling cutter;

- flange for vacuum discharge;

- handles for manual transportation;

- wheels for transportation;

- loops for transportation with the loader;

- document holder etc.
