Specializing in the production of pharmaceutical machinery and granulating drying equipment.
 |
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | SNYNXN |
| Certification: | CE ISO GMP |
| Model Number: | HTD 500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing in Wooden Case |
| Delivery Time: | IN 20 DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets / year |
| Type: | Pharmaceutical IBC Container | Processed Material: | Pharmaceutic Powder |
|---|---|---|---|
| Max Working Pressure: | 0.3 MPa | Feeding Port: | DN500 |
| Core Components: | Motor, Valve, Vessel | Material Thickness: | 2.5 Mm |
| Warranty: | 2 Years For Core Components | After Sales Service: | Online Support, Engineers Available To Service Machinery Overseas |
| High Light: | 600L bin blender pharmaceutical,Pharma bin blender pharmaceutical,0.3MPa Stainless Steel ibc chemical tank |
||

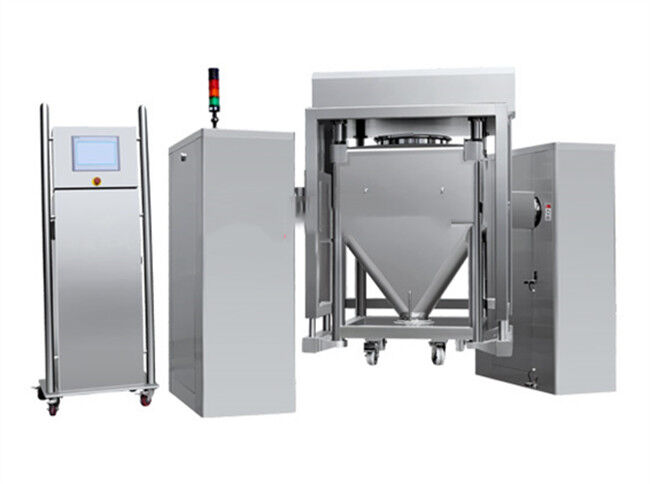

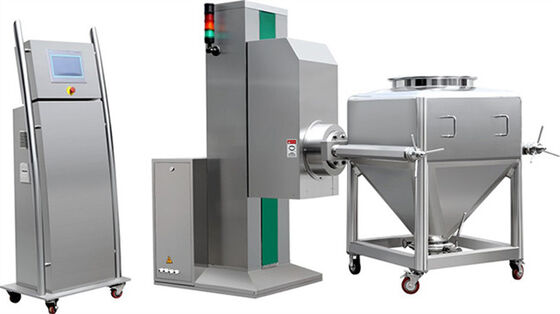

Description of Pharmaceutical Substances Blender IBC Bin Mixer

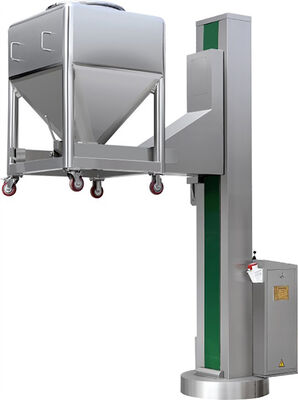

600L Pharma Bin Pharmaceutical IBC container Stainless Steel Powder IBC Bin for Blender

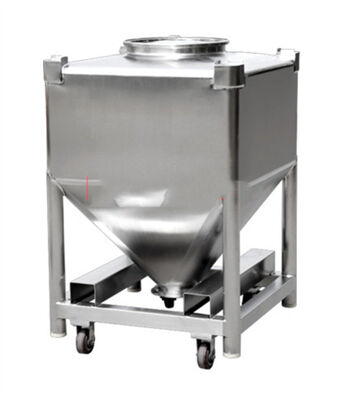

This bin is made of high quality austenitic stainless steel, and all inner corners and outer surfaces are circular arc transition, and there is no dead angle or residue. The inner surface is polished, the roughness reaches Ra≤0.2μm, the outer surface is brushed, and the roughness reaches Ra≤0.4μm.
The cover is equipped with silicone rubber sealing device to ensure the sealing efficiency. The special butterfly valve with anti-misoperation device is designed to ensure the safety of production. There are special wheels to protect ground of clean area not be damaged, and no traces left.
| Model | HTD-300 | HTD-400 | HTD-600 | HTD-800 |
| Blending speed | 3-20rpm | 3-20rpm | 3-15rpm | 3-15rpm |
| Net load | 150 | 200 | 300 | 400 |
| Total power | 4.4KW | 5.2KW | 5.2KW | 7KW |
| Machine weight | 900kg | 1000kg | 1300kg | 1600kg |
| Rotation | 2150mm | 2250mm | 2500mm | 2600mm |
| Ceiling height | 2800mm | 2800mm | 2800mm | 2800mm |
| Rotation width | 2000mmm | 2100mm | 2400mm | 2500mm |
| Overall dimension | 2457x1306x2300mm | 2555x1445x2400mm | 2663x1583x2500mm |
2800x1730x2500mm
|
SNYNXN has been manufacturing, engineering and exporting various kinds of industrial dryers, mixers, granulators and impact mills since 2007 for a lot of satisfied customers.
SNYNXN pay attention to detail and real production data is critical in the manufacturing of industrial machinery. An unique design for specific material is always made based on real production experiences or trial data.
SNYNXN has experienced technicians who has been working in this field for more than 20 years as well as professional pilot plant. Free trial and material study are available for our customers.
SNYNXN has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, commissioning and training services.
SNYNXN is always your reliable machinery supplier.
